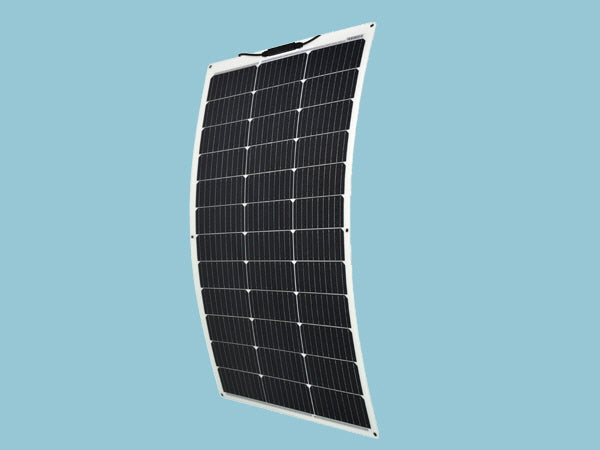

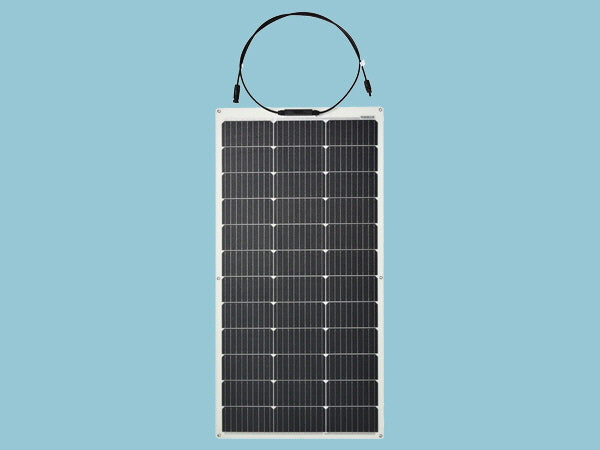

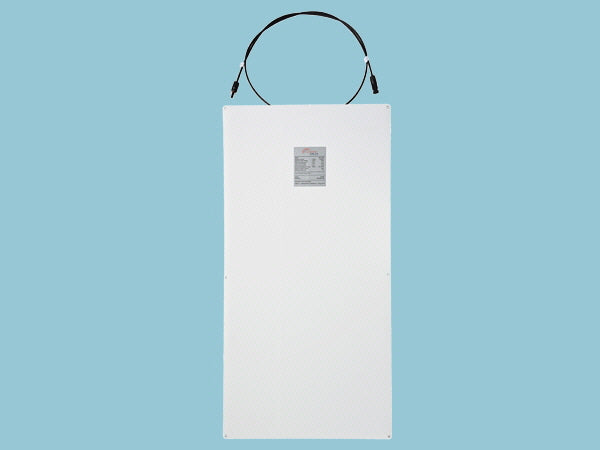

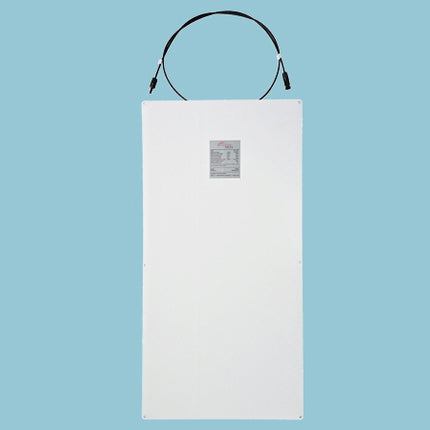

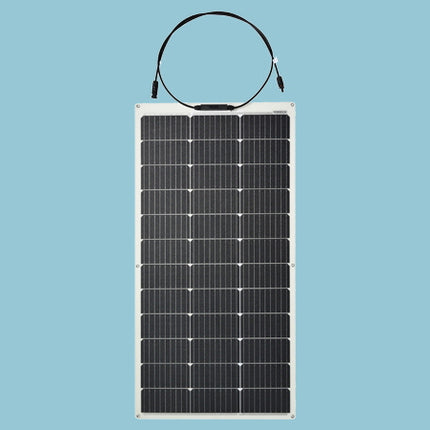

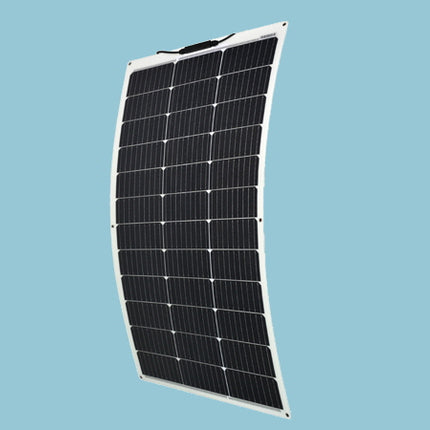

110W Sunshine Solar RV Flexible ETFE Range
110W Sunshine Solar RV Flexible ETFE Range
Couldn't load pickup availability
This 110W Sunshine Solar RV Flexible ETFE Panel boasts ultra pure silicon delivering optimal power conversion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes the flexible ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.
The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.
The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a Sunshine Flexible 110W 12V solar panel you can generate around 37 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
- Maximum Power (Pmax): 110W
- Maximum Power Current (Ipm): 5.27A
- Maximum Power Voltage (Vpm):20.9V
- Short Circuit Current (Isc): .5.53A
- Open Circuit Voltage (Voc): 24.5V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC600V
- Size: 1080 x 540 x 3mm
- Weight: 2.54kg
Features
- Four fixing eyelets
- ETFE rough scratch-resistant surface which can be walked on in deck shoes.
- Highly efficient monocrystalline cells
- Can be conveniently placed on slightly curved solid surfaces
- Can be easily bonded using Fixing Adhesive (no need for drilling)
- 4mm Single Core Cable fitted with type MC4 Connectors
- Three Year Manufacturers Warranty
