YBX5000 Silver High Performance SMF Batteries

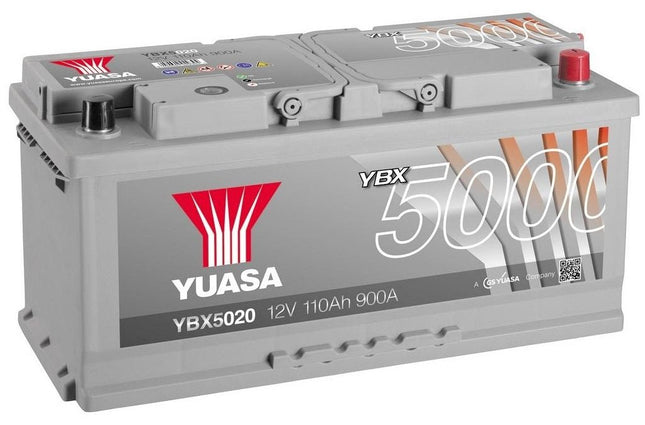

YBX5020 12V 110Ah 900A Yuasa Silver High Performance
Battery Capacity at 20-hour Rate (Ah):
110 Cold Cranking Performance (Amps) EN1: 900
Approximately 50,000 starts Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant* Calcium/Calcium plates State of Charge Indicator (SOCI) Integrated carrying handle & flame arrestor OE Quality, Performance & Specification Performance Up to 35% increase in cranking power**
YBX5000 Silver High Performance SMF Batteries

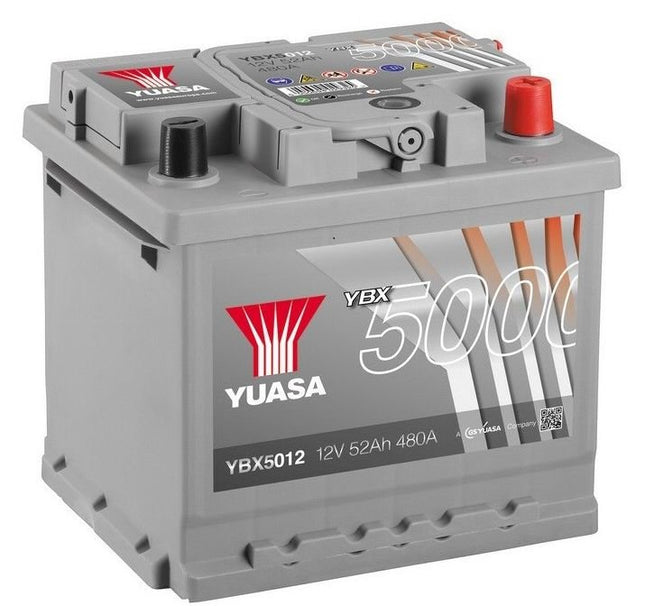

YBX5012 12V 52Ah 480A
Yuasa Silver High Performance
Battery Capacity at 20-hour Rate (Ah):
52 Cold Cranking Performance (Amps) EN1: 480
Approximately 50,000 starts
Sealed tip/tilt double lid -
Reduces water loss by up to 30% -
VDA roll over test compliant* Calcium/Calcium plates State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor OE Quality, Performance & Specification Performance Up to 35% increase in cranking power**
YBX5075
YBX5000 Silver High Performance SMF Batteries
YBX5075 12V 60Ah 620A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 60Cold Cranking Performance (Amps) EN1: 620
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
LB2
Voltage
12V
Capacity at 20-hour Rate (Ah)
60
Cold Cranking Performance (Amps) EN1
620
Mean Weight with Acid (kg)
14.4
Cell Layout
0
Terminal
T1
Recommended Charge Rate (Amps)
4
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1
Length (mm)
243
Width (mm)
175
Height (mm)
175
NCC Class
N/A
Feature Range
YBX5000 Silver High Performance SMF Batteries
YBX5069
YBX5000 Silver High Performance SMF Batteries
YBX5069 12V 75Ah 640A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 75Cold Cranking Performance (Amps) EN1: 640
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
JIS D26 + B9
Voltage
12V
Capacity at 20-hour Rate (Ah)
75
Cold Cranking Performance (Amps) EN1
640
Mean Weight with Acid (kg)
18.1
Cell Layout
1
Terminal
T1
Recommended Charge Rate (Amps)
4
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1/T3
Length (mm)
269
Width (mm)
174
Height (mm)
225
Feature Range
YBX5000 Silver High Performance SMF Batteries
YBX5068
YBX5000 Silver High Performance SMF Batteries
YBX5068 12V 75Ah 640A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 75Cold Cranking Performance (Amps) EN1: 640
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
JIS D26 + B5
Voltage
12V
Capacity at 20-hour Rate (Ah)
75
Cold Cranking Performance (Amps) EN1
640
Mean Weight with Acid (kg)
18.1
Cell Layout
0
Terminal
T1
Recommended Charge Rate (Amps)
4
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1
Length (mm)
269
Width (mm)
174
Height (mm)
225
Feature Range
YBX5000 Silver High Performance SMF Batteries
YBX5057
YBX5000 Silver High Performance SMF Batteries
YBX5057 12V 48Ah 430A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 48Cold Cranking Performance (Amps) EN1: 430
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
JIS B24
Voltage
12V
Capacity at 20-hour Rate (Ah)
48
Cold Cranking Performance (Amps) EN1
430
Mean Weight with Acid (kg)
12.1
Cell Layout
1
Terminal
T1/T3
Recommended Charge Rate (Amps)
3
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1/T3
Length (mm)
238
Width (mm)
129
Height (mm)
223
NCC Class
N/A
Feature Range
YBX5000 Silver High Performance SMF Batteries
YBX5056
YBX5000 Silver High Performance SMF Batteries
YBX5056 12V 40Ah 340A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 40Cold Cranking Performance (Amps) EN1: 340
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
JIS B19 + B1
Voltage
12V
Capacity at 20-hour Rate (Ah)
40
Cold Cranking Performance (Amps) EN1
340
Mean Weight with Acid (kg)
9.4
Cell Layout
0
Terminal
T1/T3
Recommended Charge Rate (Amps)
3
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1/T3
Length (mm)
187
Width (mm)
137
Height (mm)
225
NCC Class
N/A
Feature Range
YBX5000 Silver High Performance SMF Batteries
YBX5000 Silver High Performance SMF Batteries
YBX5054 12V 40Ah 340A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 40Cold Cranking Performance (Amps) EN1: 34
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
JIS B19
Voltage
12V
Capacity at 20-hour Rate (Ah)
40
Cold Cranking Performance (Amps) EN1
340
Mean Weight with Acid (kg)
9.4
Cell Layout
0
Terminal
T1/T3
Recommended Charge Rate (Amps)
2
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1/T3
Length (mm)
187
Width (mm)
127
Height (mm)
223
Feature Range
YBX5000 Silver High Performance SMF Batteries
YBX5000 Silver High Performance SMF Batteries

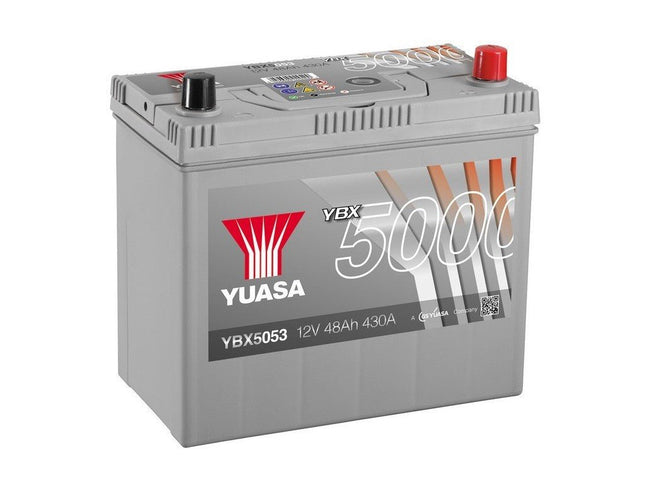

YBX5053 12V 48Ah 430A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 48
Cold Cranking Performance (Amps) EN1: 430
Features
Approximately 50,000 starts Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant* Calcium/Calcium plates State of Charge Indicator (SOCI) Integrated carrying handle & flame arrestor OE Quality, Performance & Specification
Performance Up to 35% increase in cranking power**

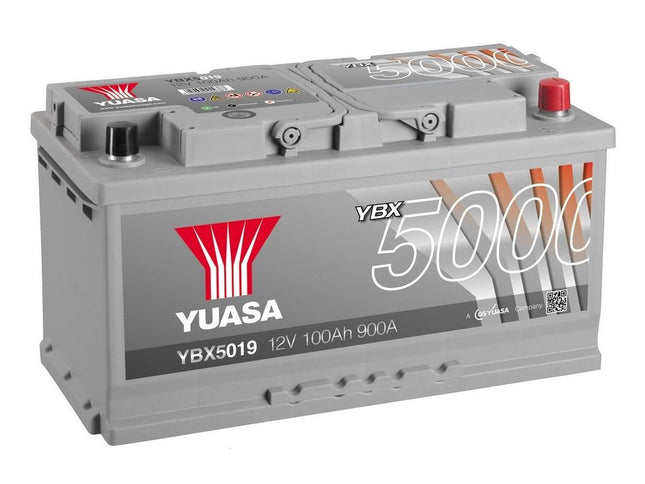

YBX5019 Silver High Performance SMF Batteries YBX5019 12V 100Ah 900A Yuasa Silver High Performance Battery Capacity at 20-hour Rate (Ah): 100 Cold Cranking Performance (Amps) EN1: 900
Approximately 50,000 starts Sealed tip/tilt double lid -
Reduces water loss by up to 30% -
VDA roll over test compliant* Calcium/Calcium plates
State of Charge Indicator (SOCI) Integrated carrying handle & flame arrestor OE Quality, Performance & Specification
Performance Up to 35% increase in cranking power**
YBX5063
YBX5000 Silver High Performance SMF Batteries
YBX5063 12V 50Ah 480A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 50Cold Cranking Performance (Amps) EN1: 480
Features
Approximately 50,000 starts
Sealed tip/tilt double lid - Reduces water loss by up to 30% - VDA roll over test compliant*
Calcium/Calcium plates
State of Charge Indicator (SOCI)
Integrated carrying handle & flame arrestor
OE Quality, Performance & Specification
Performance
Up to 35% increase in cranking power**
*German Association of the Automotive Industry**YBX1063 350 CCA YBX5063 480 CCA
Tech Spec
Case Type
LB1
Voltage
12V
Capacity at 20-hour Rate (Ah)
50
Cold Cranking Performance (Amps) EN1
480
Mean Weight with Acid (kg)
12.1
Cell Layout
0
Terminal
T1
Recommended Charge Rate (Amps)
3
Handles
Yes
End-Venting
Yes
State of Charge Indicator
Yes
Terminal Type
T1
Length (mm)
207
Width (mm)
175
Height (mm)
175
NCC Class
N/A
Feature Range
YBX5000 Silver High Performance SMF Batteries
