Floor plate or hold down bracket for the Thetford Porta Potti Excellence model. This plate secures any Excellence toilet to the floor and enables easy detachment with one simple release action for emptying and maintenance.
Brand
Thetford
Type
Brackets and Fixings
Application
Porta Potti

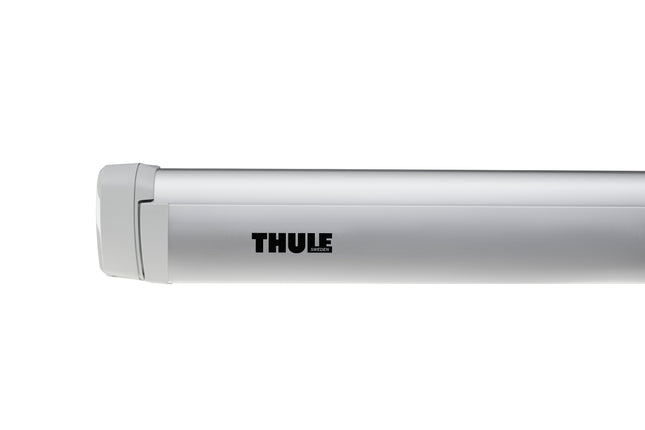

Thule Omnistor 9200
The biggest awning on the market with a maximum length of 6m by 3m projection.
It perfectly integrates with any vehicle design. It is especially convenient for large vehicles and has been designed for more aerodynamic combined with an anti-rattling device.
The motor is retrofitted, it can be installed later. The 220VAC motor with remote control allows the opening the awning without any effort.
Space has been created for Thule LED lighting, so the vehicle can have a light on the outside even when the awning is closed.
By setting the angle as you please, the awning can be opened and closed even when the sliding door of your van is open.
Sturdy spring arms ensure the awning fabric is perfectly tensioned. The spring arm, reinforced with a double steel cable, automatically deploys the tension rafter, to reinforce the awning???s stability and resistance.
For more info please see in the links below
Setup Instructions / Manual / Size Chart
TECHNICAL SPECIFICATIONS.
Roof Mounting
Quick Release system
Quick Lock system
Manual awning operation, motorised option available for retrofit
Rapid gear cassette for fast and efficient opening and closing
Monoblock and tension spring arms (telescopic tension arms)
Min length: 4.00m, Max length: 6.00m
Max projection: 3.00m
Thule Panorama compatible
Thule QuickFit compatible
Thule EasyLink compatible
Awning cassette color: White or Anodized

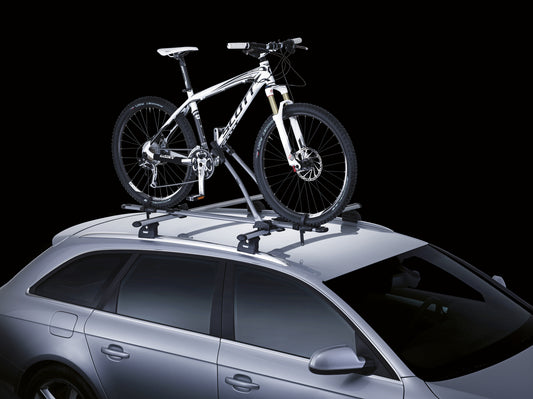

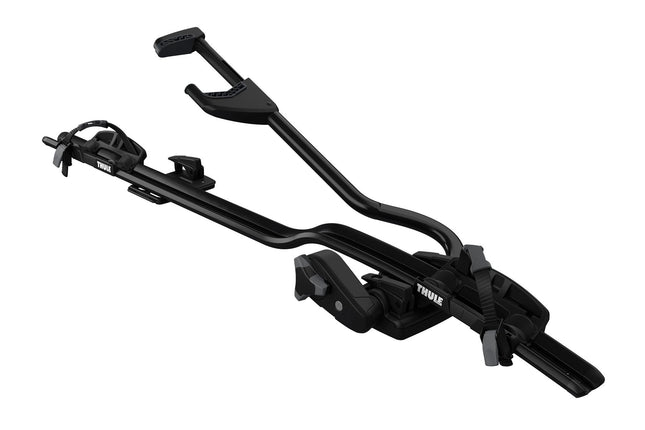

Upright bike rack for the quickest, most convenient mounting – for bikes up to 20 kg.
Product features
Automatically positions your bike when you secure it, thanks to the uniquely designed frame holder and wheel tray
Pressure is spread via large, soft claw pads that adapt to your bike’s frame tubes – minimizing the risk of frame damage
Quick and easy bike securing – the torque limiter dial controls the force going into the bike frame with a clear sign of correct mounting
Safe mounting – your bike is prevented from falling thanks to the claw’s extended lower jaw
Stable wheels – firmly fixed in smartly designed wheel holders with diagonal quick-release wheel straps
Easy, tool-free interface for switching the bike rack from one side of your car to the other
Pre-assembled, no tools required
Locks the bike to the bike rack and the bike rack to the roof racks (locks included)
Technical Specifications
Load capacity
20 kg
Dimensions
145 x 32 x 8.5 cm
Weight
4.2 kg
Fits round frame dimensions
22-80 mm
Fits maximum oval frame dimensions
80x100 mm
Thru-axle compatible
✓
Carbon frame compatible
✓ Adapter/s required: Thule Carbon Frame Protector
Fits roof racks with 20x20 mm T-tracks
✓
Fits roof racks with 24x30 mm T-tracks
✓ Adapter/s required: Thule T-track Adapter 889-1
Fits Thule WingBar Evo
✓
Fits Thule WingBar
✓
Fits Thule ProBar
✓
Fits Thule SquareBar
✓ Adapter/s required: Thule ProRide SquareBar Adapter
Fits Thule SlideBar
✓
One Key System compatible
✓
Model number
598002
YBX Active Leisure and Marine EFB
EFB technology for greater endurance, higher cycles and faster charging
Optimised for repeated charging & discharging
Original equipment quality & specification
NCC Verified Class B Sealed maintenance free
Supplied charged & ready to fit
Enhanced safety features including integrated flame arrestor and carry handle
1200 watt hours
200 cycles
Caravans, motorhomes, boats and other modern leisure vehicles feature more technology and electrical appliances than ever before. YBX Active Leisure and Marine batteries are specially designed to provide dependable, stress-free power and long life.
Caution - when installed in an occupied space, this battery must be fitted with a breather pipe routed to the vehicle exterior.
Tech Spec
Case Type
L5 DIN
Voltage
12V
Capacity at 20-hour Rate (Ah)
100
Cold Cranking Performance (Amps) EN1
850
Mean Weight with Acid (kg)
24
Cell Layout
0
Terminal
T1
Length (mm)
353
Width (mm)
175
Height (mm)
190
NCC Class
Class B
Feature Range
Leisure Batteries
Converts the car's 13-pin electrical outlet to a 7-pin.
Features:
If the car is equipped with a 13-pin electrical outlet this adapter converts it, making it possible to fit Thule's 7-pin products.
Technical Specifications:
Model Number 990700
Related Products:
Thule VeloCompact 7 -pin, Thule EuroRide 2 7-pin, Thule EuroRide 3.
Warranty
Thule is dedicated to providing exceptional products that are quality tested and guaranteed against defects in materials and workmanship.
Technical specifications
Model Number - 911100
Warranty
Thule is dedicated to providing exceptional products that are quality tested and guaranteed against defects in materials and workmanship.

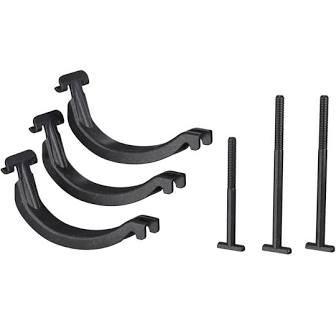

An around-the-bar adapter for fitting your Thule bike rack on square bars, round aluminium load bars, and most other load bars on the market.
Technical specifications
Model Number - 889800
Warranty
Thule is dedicated to providing exceptional products that are quality tested and guaranteed against defects in materials and workmanship.
