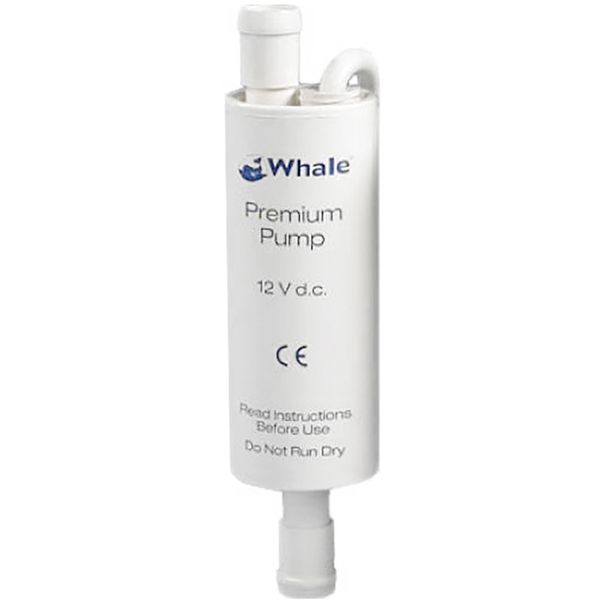

Self venting inline electric pump. Compact, quiet, lightweight design suitable for use with pressure switch and micro switch systems.
• Flow rate of 13 lpm
• 12V
Flow Rate 1 Metre Head
11.75 LPM (3.1 US GPM)
Automatic Bilge Pumps
No
Continuously Rated
Maximum continuous operation should not exceed 15 minutes
Flow Rate 3 Metre Head
9.75LPM (2.5 US GPM)
Self Primes up to
Pump is not self priming.
Inlet Outlet
For 10mm (3/8") or 13mm (1/2") ID Hose
Brand
Whale
Type
Fresh Water Pumps
Voltage Description
12V DC
Model
GP1392
Width
38mm (1-7/16")
Length
135mm (5.3"), Cable: 1 Metre
Fuse
5A
Flow Rate Description
13 LPM (3.4 US GPM)
Approvals
EMC Compliant, CE Marked
Amps Description
3.6A
Supplied With
13mm (1/2") adaptors
Warranty
1 Year
Country of Origin
United Kingdom
Downloads
whale inline booster pump datasheet
Whale electric pump range includes models with the very latest electronic technology. All pumps are manufactured from only highest quality inhouse moulded parts and robust motors.
We have developed our pump designs based on more than 60 years of expertise. Today we have used that experience to develop our most compact quiet lightweight high performance electric impeller pumps.
Whale's high flow rate long life submersible impeller pumps
• Simple compact and an economical solution
• Long life very quiet with low power consumption
• An inexpensive way to update a manual to an electric system
• Suitable for use with pressure switch and microswitch systems
Flow Rate 1 Metre Head
14.8LPM (3.9 US GPM)
Flow Rate 3 Metre Head
12.8LPM (3.4 US GPM)
Inlet Outlet
For 10mm (3/8") or 13mm (1/2") ID Hose
Brand
Whale
Type
Fresh Water Pumps
Voltage Description
12V DC
Model
GP1652
Width
36mm (1-7/16")
Length
Overall: 129mm (5-1/16"), Pump: 109mm (4-5/16"), Hose Connection: 20mm (13/16"), Cable: 1m
Material
ABS Pump Body, Nitrile Seals, Polypropylene Strainer, PBT Impeller, PVC Cable
Fuse
5A
Flow Rate Description
15.8LPM (4.2 US GPM)
Approvals
EMC Compliant, CE Marked
Application
Fresh Water, Salt Water, Diesel
Amps Description
3.8A
Supplied With
Strainer
Warranty
1 Year
Country of Origin
United Kingdom
Self venting inline electric pump. Compact, quiet, lightweight design suitable for use with pressure switch and micro switch systems.
• Flow rate of 16 lpm
• 12V
Flow Rate 1 Metre Head
14.8 LPM (3.9 US GPM)
Continuously Rated
Maximum continuous operation should not exceed 15 minutes
Flow Rate 3 Metre Head
12.8 LPM (3.4 US GPM)
Self Primes up to
Pump is not self priming.
Inlet Outlet
For 10mm (3/8") or 13mm (1/2") ID Hose
Brand
Whale
Type
Fresh Water Pumps
Voltage Description
12V DC
Model
GP1692
Width
38mm (1-7/16")
Length
Overall: 135mm (5.3"), Pump: 88mm (3-7/16"), Top Port: 20mm (13/16"), Bottom Port: 36mm (1-7/16"), Cable: 1 Metre
Material
ABS Pump Body, Nitrile Seals, PBT
Fuse
5A
Flow Rate Description
15.8 LPM
Approvals
EMC Compliant, CE Marked
Application
Fresh Water or Salt Water
Amps Description
3.8A
Supplied With
13mm (1/2") adaptors
Warranty
1 Year
Country of Origin
United Kingdom
Downloads
whale inline booster pump datasheet

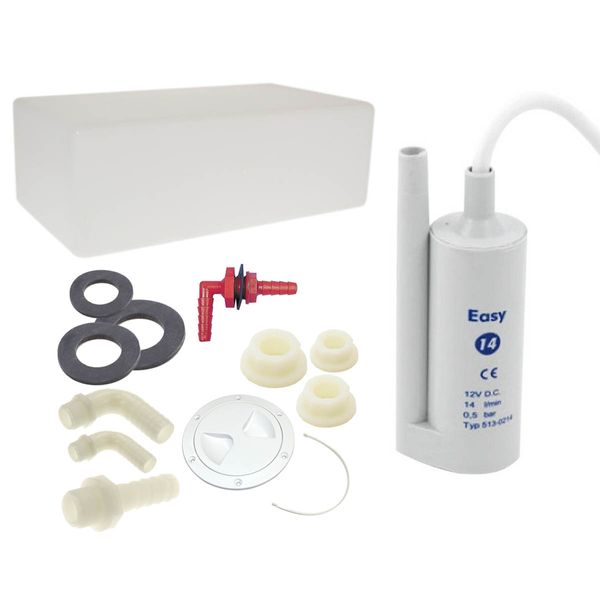

This kit is made up of a 12V 14L submersible freshwater pump and a 20-litre water tank manufactured from food grade plastic, along with a tank fitting kit.
The 20-litre water storage tank (N40630) in this kit is made from a durable, food grade plastic that is semi-translucent, making it easy to check water levels. The tank has one pre-cut hole and is supplied together with a tank filler fitting, breather valve, overflow fitting, inspection hatch and cap. The water tank measures 265 x 480 x 165mm (H x W x D).
The 14L submersible water pump (26450) is especially powerful as well as having enhanced durability due to special high-tech sealing. This pump has a patented vent which speeds up delivery once submerged in water. The Reich Easy Water Pump is quiet when in use and has housing material made to be resistant to any dirt, making it even easier to clean when necessary. 12V, Pressure: 0.5m bar, 44mm dia, Current consumption: 10-18w.
Fittings: Plastic Nut with 3/8" Thread (164090), Rubber O-Ring Seal for 3/8" Threads (164766), 12mm Straight Nozzle (26857), 20mm 90° Nozzle (26855), Rubber O-Ring Seal for 1/2" Threads (164760), Plastic Nut with 1/2" Thread (164085), 40mm 90° Nozzle (16445), Plastic Nut with 1-1/2" Thread (164089), Rubber O-Ring Seal for 1-1/2" Threads (164764), Watertight Inspection Cover 102mm Diameter (814214), 10mm 90° Bulkhead Fitting (N65028)
Brand
Whale
Voltage Description
Pump: 12V DC
Height Description
265mm
Width
480mm
Depth
165mm
Material
Semi translucent food grade plastic
Consumption
Pump - 10-18w
Application
Interior
Capacity Description
Pump: 14L, Tank: 20L
Contents
Water Pump | Water Tank | Tank Fittings
This kit is made up of a 12V 14L submersible freshwater pump and a tank fitting kit (this kit excludes the water tank).
The 14L submersible water pump (26450) is especially powerful as well as having enhanced durability due to special high-tech sealing. This pump has a patented vent which speeds up delivery once submerged in water. The Reich Easy Water Pump is quiet when in use and has housing material made to be resistant to any dirt, making it even easier to clean when necessary. 12V, Pressure: 0.5m bar, 44mm dia, Current consumption: 10-18w.
Fittings: Plastic Nut with 3/8" Thread (164090), Rubber O-Ring Seal for 3/8" Threads (164766), 12mm Straight Nozzle (26857), 20mm 90° Nozzle (26855), Rubber O-Ring Seal for 1/2" Threads (164760), Plastic Nut with 1/2" Thread (164085), 40mm 90° Nozzle (16445), Plastic Nut with 1-1/2" Thread (164089), Rubber O-Ring Seal for 1-1/2" Threads (164764), Watertight Inspection Cover 102mm Diameter (814214), 10mm 90° Bulkhead Fitting (N65028)
Brand
Whale
Application
Interior
Contents
Water Pump | Tank Fittings

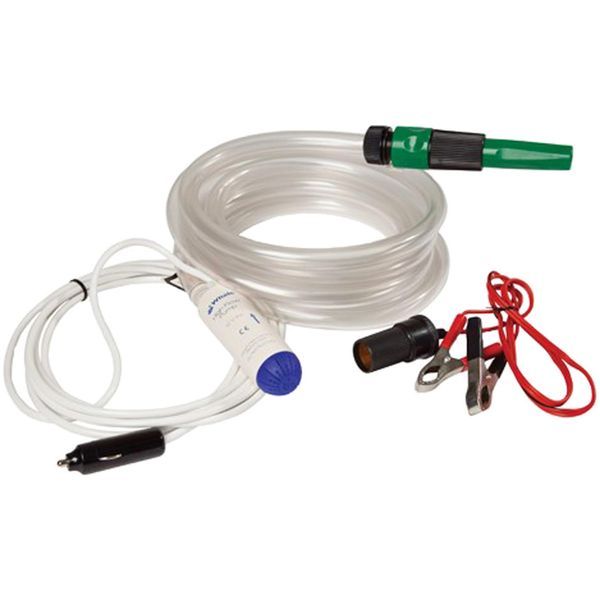

Whale Portable Pump Kit GP1642 is a self-venting pump that is ideal to wash down your caravan or motorhome. This great performance and low voltage pump is easy to maintain with a wipe clean hose and nozzle. The Whale GP1642 pump kit is suitable for cold and warm water.
Whale Portable Pump Kit includes:
• Low voltage high flow submersible pump
• Nozzle with adjustable on/off fine spray or a jet of water
• 3.75m (12.5 ft) food quality clear hose
• 3.75m (12.5 ft) cable with battery clips and cigar lighter connector
Flow Rate 1 Metre Head
12.8 LPM (3.4 US GPM)
Brand
Whale
Voltage Description
12V DC
Model
GP1642
Material
Stainless Steel, Nitrile, PVC, Polypropylene, ABS Plastics
Fuse
5A
Flow Rate Description
15.8 LPM (4.2 US GPM)
Approvals
CE, PBO Best Buy
Application
Cold & Warm water, Diesel, Light Oils & Water-Based Fluids
Supplied With
Submersible Pump, Nozzle, Food Quality Hose, Battery Clips, Cigar Lighter Plug
Cut Out Pressure Description
20 PSI / 1.4 Bar
Warranty
1 Year

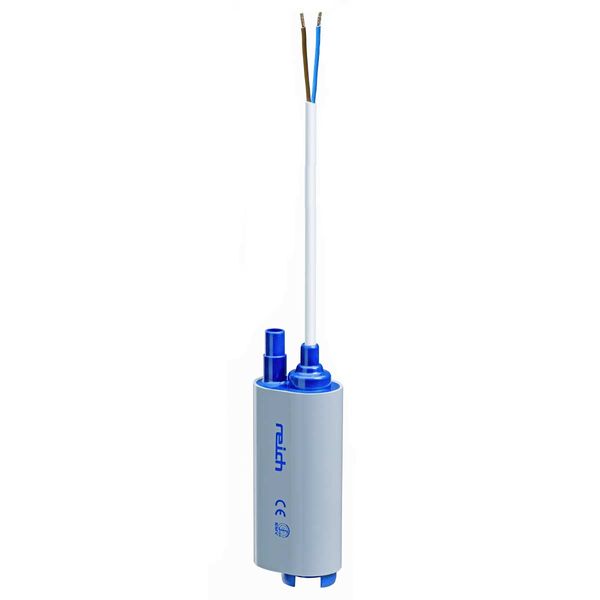

Reich submersible pump POWERJET
The compact submersible pump POWERJET ensures sufficient pressure in caravan and motorhome. This new complete powerhouse from Reich's submersible pump series ensures sufficient water pressure in both the caravan and motorhome. The demands on the water supply in caravan and motorhome have increased in recent years. Thus, sufficient capacity in terms of litres and water pressure are now among the contemporary fundamental requirements of caravan and motorhome owners. This is why Reich has expanded its range of compact and at the same time powerful submersible pumps. These powerful pumps ensure that even with longer pipes or several open taps, there is still enough water and water pressure at every location. The PowerJet, like many other Reich submersible pumps, has automatic venting as standard.
Brand
Reich
Type
Water Pumps
Diameter Description
45mm
Consumption
Power: 10-18 Watt
Capacity Description
12 Litres/Minute (with automatic valve)
Working Pressure
0.6 bar
