Brevette plastic Rooflight stays for all perspex roof lights (per pair)
Brand
AG
Type
Accessories
Material
Plastic
Colour
White
Primary Construction
Plastic
Round ceiling vent 12000 sq mm, OD 217mm diameter collar, 149mm diameter x 37mm deep, to suit a flexible ducting.
Brand
DLS Plastics
Type
Accessories
Size
217mm OD
Material
Plastic
Colour
White
Primary Construction
Plastic
Aperture: 400 x 400 mm
Size of dome: 480 x 480 mm
Free airflow: 30 cm?? / 150 cm??
Height above roof: 91 mm
Large opaque dome protects against rain splash
Telescopic handles opening to four sides
Locking Device
Domes have Snow Guard

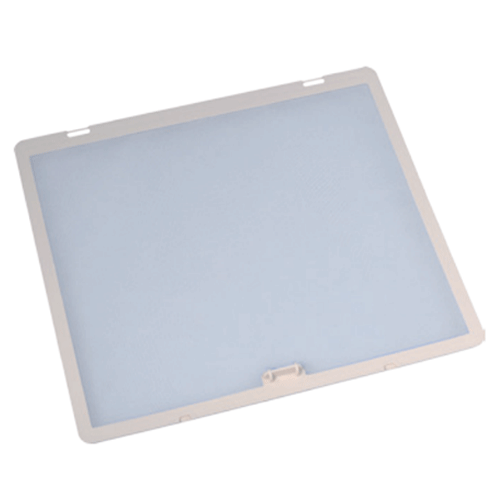

Removeable Framed Flynet
Roller blind included
Model 29 is a small vent that provides fresh air in the camper van and, thanks to polypropylene frosted glass, also gentle daylight in the interior. A fold-down mesh frame protects against insects and lets light and air into the interior of the caravan.
Key Features
Small, space-saving milk glass dome made of polypropylene
Telescopic display unit, tiltable on four sides, with locking device
Folding frame with mosquito net
Light Colour
White
Brand
MPK
Type
Roof Vent
Height Description
Above roof: 78mm
Width
Frame: 314mm, Dome: 330mm
Depth
Frame: 314mm, Dome: 330mm
Thickness
Roof: 24-46mm
Cut Out
280 x 280mm
Coverage
60cm Squared
Downloads
Model 29 installation
Panel vans such as the Fiat Ducato, Citroën Jumper or Peugeot Boxer are becoming increasingly popular for conversion to a camper van. With our adapter frames for roof hatches, you can also enjoy the advantages of MPK roof hatches in your van camper. In sizes for the cut-out dimensions 700 x 500 mm, the adapter frames ensure the secure attachment of our corresponding roof hatch models.
Brand
MPK
Height Description
Above roof: 7 mm
Material
Polypropylene
Cut Out
700 x 500 mm
Panel vans such as the Fiat Ducato, Citroën Jumper or Peugeot Boxer are becoming increasingly popular for conversion to a camper van. With our adapter frames for roof hatches, you can also enjoy the advantages of MPK roof hatches in your van camper. In sizes for the cut-out dimensions 700 x 500 mm, the adapter frames ensure the secure attachment of our corresponding roof hatch models.
Brand
MPK
Height Description
Above roof: 7 mm
Material
Polypropylene
Cut Out
700 x 500 mm
The special spoiler assists by channelling the air smoothly around your existing roof light and thereby reducing both wind resistance and noise levels. It is made of UV-resistant ABS plastic. It is easily installed with the roof vent screws or can be attached with suitable adhesives (Sika).
Brand
Fiamma
Type
Accessories
Insulated vent shield. Keeps your RV warmer in the winter and cooler in the summer. Suitable for all roof lights 40 x 40cm. The aluminium surface assists by reflecting sunlight and by reducing heat-loss.
Brand
Fiamma
Type
Accessories
Width
40cm
Length
40cm
Optional roller blind with two rollers, one dark and one with mosquito screen for previous model of Vent 50 x 50cm. Dimensions: 55 x 55cm.
Brand
Fiamma
Type
Accessories
Width
50cm
Length
50cm
A 28cm x 28cm Fiamma roof vent recommended for small rooms such as bathrooms, showers, or kitchens in motorhomes, caravans, van conversions and campervans.
Discreet in design, this slim framed vent provides permanent ventilation and lets in as much light as possible through its transparent cover. It is supplied with an integrated aluminium mosquito net that can be removed for easy cleaning.
Thanks to the ‘sandwich’ mounting system, this model can be installed without having to drill any additional holes in the roof of the vehicle.
The vent's aerodynamic design means it does not need to be fitted with a spoiler, and noise and vibrations are greatly reduced.

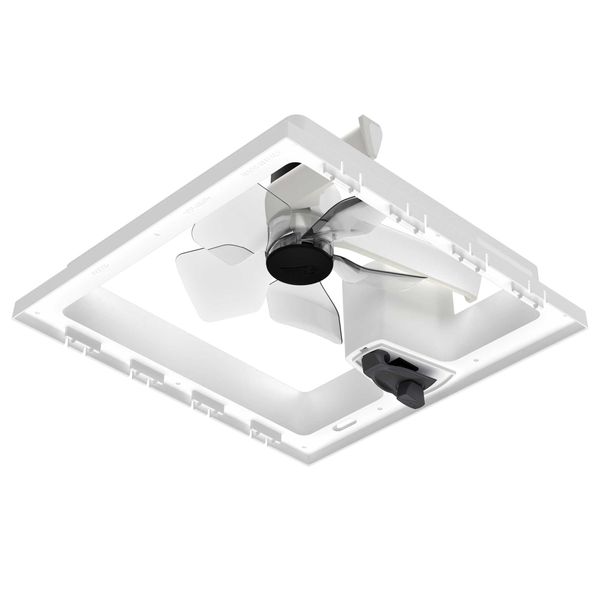

A motorised fan can be added to this rooflight, see Fiamma Turbo-Vent 28 F Kit, product code 26915.
Key Features
Aerodynamic shape means that a spoiler is not required
Quick installation without the need to cut more holes in vehicle roof
Permanent ventilation for constant exchange of air
Simple opening system with handwheel
Removable aluminium mosquito net
Can be motorised with Fiamma Turbo-Vent 28 F Kit
Brand
Fiamma
Type
Roof Vent
Size
28cm x 28cm
Weight
1.8kg
Application
Caravans, Motorhomes, Van Conversions, Campervans
Country of Origin
Italy
Downloads
User Guide Fiamma Rooflight Vent 28 F
A 40 x 40cm Fiamma roof vent designed to provide permanent ventilation for constant exchange of air.
Suitable for motorhomes, caravans and van conversions, this model is fitted with an aluminium mosquito net and has a transparent 'crystal' cover letting in as much light as possible.
The aerodynamic design means this vent does not need to be fitted with a spoiler and noise and vibrations are greatly reduced.
A patented rubber seal and high-quality UV resistant materials guarantee a watertight system whilst protecting the vent and vehicle against the elements.
This model is interchangeable with older 40 x 40cm Fiamma roof vent models and with vents from 36 x 36cm to 42 x 42cm, thanks to its reinforced frame.
The roof vent is easily opened using the handwheel. For 40 x 40cm motorised vents, see the Fiamma Turbo Vent or Turbo Vent Premium, both available with white or transparent ‘crystal’ covers.
Key Features
Aerodynamic shape means that a spoiler is not required
Simple opening system with handwheel
Fitted with aluminium mosquito net
Allows constant air circulation
ABE approved
Brand
Fiamma
Type
Roof Vent
Size
40cm x 40cm
Weight
2.8kg
Approvals
ABE approved
Application
Caravans, Motorhomes, Van Conversions
Country of Origin
Italy
Downloads
User Guide Fiamma Rooflight Vent
