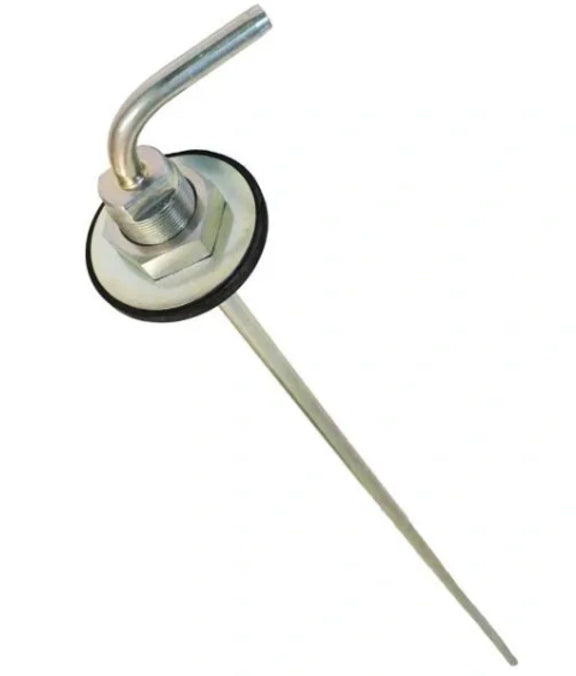

A Simple fuel standpipe, useful if you wish to install a separate fuel tank for your diesel heater and install the fuel line in from the top. Pipe can be cut the required height.
Pipe length: 68.5cm
Pipe diameter: 5mm
Bolt thread diameter: 8mm
The Sunshine Solar panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 100 watt solar panel includes supplementing the leisure battery power in caravans, motorhomes and boats.
Description
With a Sunshine 100W solar panel you could expect to generate around 26 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
Maximum Power (Pmax): 100W
Maximum Power Current (Ipm): 5.19A
Maximum Power Voltage (Vpm): 19.28V
Short Circuit Current (Isc): 5.5A
Open Circuit Voltage (Voc): 22.92V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC500V
Maximum Series Fuse: 9A
Size: 450 x 1160 x 30mm
Weight: 5.5kg
Features
Shingle-technology for increased stability and size reduction
700mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
High Performance Monocrystalline Cells
Factory fitted aluminium frame with pre-drilled mounting holes
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
25 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
PWM Solar Controller 10A - 12/24V
PWM Dual Battery Controller 10A - 12/24V
MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
MPPT Dual Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical.For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
Please View Doc Below For More Info
Instructions
Pack of 80 eco-friendly wipes made from sustainably sourced bamboo fibre, offering a soft and durable texture, ensuring a gentle yet effective clean.
The bamboo fibre material is naturally biodegradable, decomposing without leaving harmful residues, making these wipes a responsible choice for the environment.
Each pack contains 80 wipes housed in a compact, resealable pouch that is easy to carry and convenient for on-the-go use, whether you’re outdoors or simply need a reliable cleaning option.
PureClean WipEaze are versatile and suitable for a variety of uses beyond personal hygiene. Whether you’re camping, hiking, boating, or in need of a quick clean-up, these wipes are a practical choice that aligns with a commitment to sustainability.
Wolf Outdoors emphasises a planet-first approach, aiming to reduce carbon footprints and promote eco-conscious practices.
Brand
Wolf Outdoors
Weight
543g

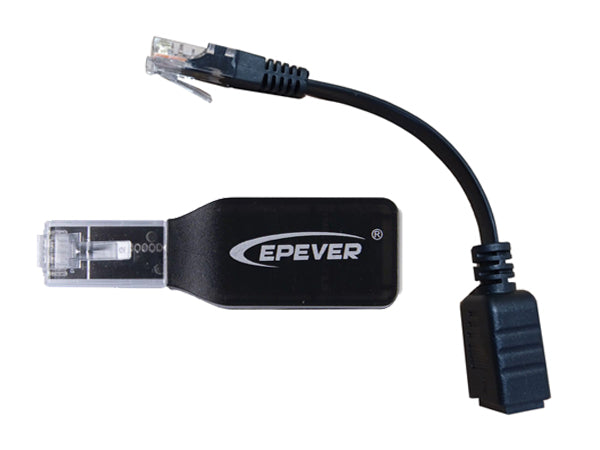

Epever Wifi Adapter
The EPEVER WiFi Adapter 2.4G RJ45 D allows real-time data from EPEVER controllers, inverters, hybrid inverter chargers, etc. to the EPEVER cloud server.
Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and Solar Guardian mobile App.
Features of the - EPEVER WiFi 2.4G RJ45 D
Compatible with EPEVER controllers, inverters, or inverter/chargers with RJ45 port
Quick connection, easy and convenient operation
Directly powered by the communication port
Up to 20 meters of communication distance
Local and cloud-based monitoring through the Solar Guardian App.
Epever Model Compatibility list
Solar Controllers - Trirons, Tracers, GOmates
Power Inverters - IPower-Plus Series
View PDF Docs 1
View PDF Docs 2
Convenient removable ramp for easy loading and unloading of your bikesIncludes carriers to attach the ramp to the bike rack during transport.
Features
No heavy lifting – simply roll the bike up onto the bike rack
Includes carriers to attach the ramp to the bike rack during transport.
For more info please see the links below
Instructions
Please see the video for more info
Sunshine 100W solar panel you could expect to generate around 29 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
DATA SHEET
Specifications
Maximum Power (Pmax): 100W
Maximum Power Current (Ipm): 5.62A
Maximum Power Voltage (Vpm): 17.8V
Short Circuit Current (Isc): 6.07A
Open Circuit Voltage (Voc): 21.30V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Maximum Series Fuse: 9A
Size: 510 x 1000 x 35mm
Weight: 7.3kg
Features
900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
High Performance Monocrystalline Cells
Factory fitted aluminium frame with pre-drilled mounting holes
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
PWM Solar Controller 10A - 12/24V
Dual Battery Controller 10A - 12/24V
MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Dual MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 07407221667
For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
PRODUCT CODE: SSP100SS
Fitting kit for our 62-litre Underslung Water Tank for Ducato L3/L4 LWB vehicles.
Brand
Wydale Plastics
Model
USK62F
Height Description
90mm
Width
225mm
Depth
110mm
Weight
1.5kg
Country of Origin
United Kingdom
Installation kit for fitting the 24-litre Wheel Arch Water Tank
3 x M8 x 12mm socket button head stainless steel
3 x M8 x 25mm washer stainless steel
1 x 50mm x 55mm x 30mm angle bracket
2 x 150mm x 90mm x 60mm angle bracket
Brand
Wydale Plastics
Model
WAKF24
Country of Origin
United Kingdom
Fitting kit made up of an installation bracket set and all the necessary plumbing components required for the Underslung Water Tank for VW Transporter 69 Litres
The tank Plumbing fitting Kit is compatible with Volkswagen Transporter models:
- T5 (2003 onwards)
- T6 (successive model to T5)
- T6.1 (the latest version as of the present)
Brand
Wydale Plastics
Model
UKS69C
Height Description
85mm
Width
325mm
Depth
310mm
Weight
2.4kg
Country of Origin
United Kingdom
A 24L water storage tank designed specifically for vans, pick-ups, campers, campervans, and motorhomes.
The tank features six M8 inserts moulded directly into its design, facilitating easy mounting and installation.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T24WBK4I
Height Description
500mm
Width
150mm
Depth
750mm
Weight
3kg
Colour
Black
Outlet
1/2" BSP
Capacity Description
24 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T24WBK4I
Flat 95-litre water tank with 5-inch internal lid, for storing and transporting water as well as various other liquids.
The flat design makes it more stable and easier to store in certain spaces compared to cylindrical tanks.
The tank's semi-translucent finish allows you to see the liquid level inside the tank. A 3/4-inch BSP outlet is included, which is a standard size for connecting hoses and other plumbing fittings.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T95FNA5
Height Description
350mm
Width
500mm
Depth
620mm
Weight
8kg
Colour
Transparent
Outlet
3/4" BSP
Capacity Description
95 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T95FNA5
