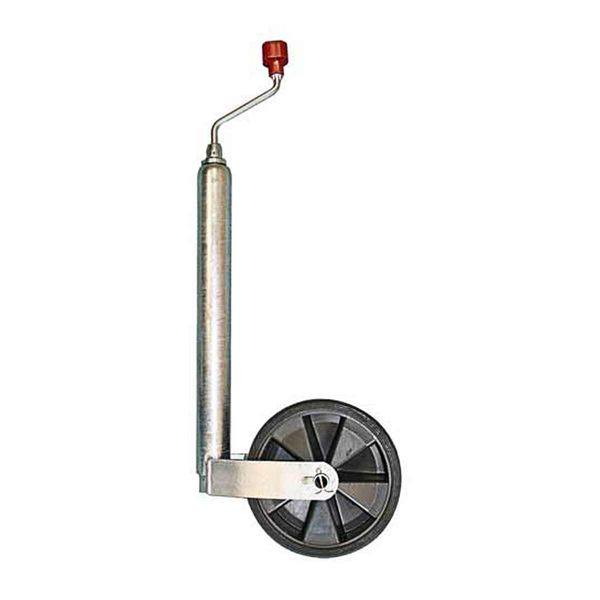

AL-KO Plus Jockey Wheel with a 48mm shaft and 215 x 65mm soft rubber wheel.
This jockey wheel is hot-dip galvanised with a high coat thickness of up to 70μm, offering a high level of protection against corrosion.
From the AL-KO ‘Plus’ jockey wheel range, this user-friendly model features a long design and built-in thrust bearing under the crank to facilitate operation.
It has a stationary nose weight of 150kg (max.) and a maximum nose weight of 90kg when manoeuvring, making it suitable for everyday trailer use.
This jockey wheel is from AL-KOs ‘Plus’ line, constructed to be solid and robust and fulfil the basic needs of trailer users. The Plus jockey wheel models boast a high-quality finish, reliability, high-quality materials and longevity.
Stationary nose weight: Max. 150kg
Nose weight (manoeuvring): 90kg
Wheel: 215 x 65mm soft rubber
Wheel rim: Plastic
Extended length: 250mm
Weight: 5kg
Product Code: ALK1222435
Key Features
Ideal for use with trailers
48mm diameter shaft
215 x 65mm soft rubber wheel with plastic rim
Hot-dip galvanised (up to 70 μm) for high level of corrosion protection
150kg (Max.) Stationary nose weight
90kg (Max.) Manoeuvring nose weight
Extended length: 250mm

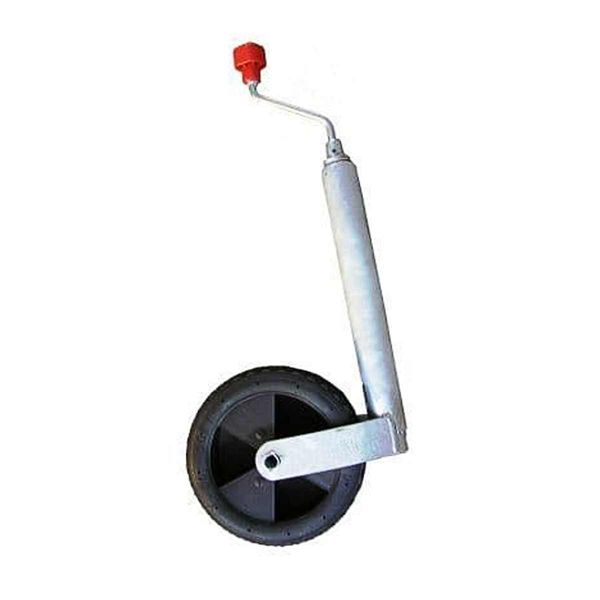

AL-KO Euro Jockey Wheel with a 48mm shaft and 240 x 70mm solid rubber wheel with a plastic rim.
This model has a stationary nose weight of 150kg (max.) and a maximum nose weight of 90kg when maneuvering, making it suitable for everyday trailer use.
Constructed to be entirely solid and robust, this jockey also has a galvanized finish that helps protect it against corrosion
Stationary nose weight: Max. 150kg
Nose weight (manoeuvring): 90kg
Wheel: 240 x 70mm solid rubber
Wheel rim: Plastic
Weight: 5kg
Product Code: ALK1222221
Key Features
Ideal for use with trailers
48mm diameter shaft
240 x 70mm solid rubber wheel with plastic rim
Galvanized for corrosion protection
150kg (Max.) Stationary nose weight
90kg (Max.) Manoeuvring nose weight
AL-KO Compact Jockey Wheel with a 48mm shaft and 200 x 50mm solid rubber wheel with a plastic rim.
This compact model has a stationary nose weight of 150kg (max.) and a maximum nose weight of 90kg when manoeuvring, making it suitable for everyday trailer use.
This jockey wheel is from the AL-KO ‘Basic’ line, constructed to be entirely solid and robust and fulfil the basic needs of trailer users. The electro-galvanized (8 μm) finish helps protect the jockey wheel against corrosion.
The Basic jockey wheel models meet high-quality standards and exceed the legal minimum requirements.
Stationary nose weight: Max. 150kg
Nose weight (manoeuvring): 90kg
Wheel: 200 x 50mm solid rubber
Wheel rim: Plastic
Extended length: 220mm
Weight: 4.8kg
Product Code: ALK1222433
Key Features
Ideal for use with trailers
48mm diameter shaft
200 x 50mm solid rubber wheel with plastic rim
Electrogalvanized (8 μm) for corrosion protection
150kg (Max.) Stationary nose weight
90kg (Max.) Manoeuvring nose weight
Compact and robust design
Extended length: 220mm

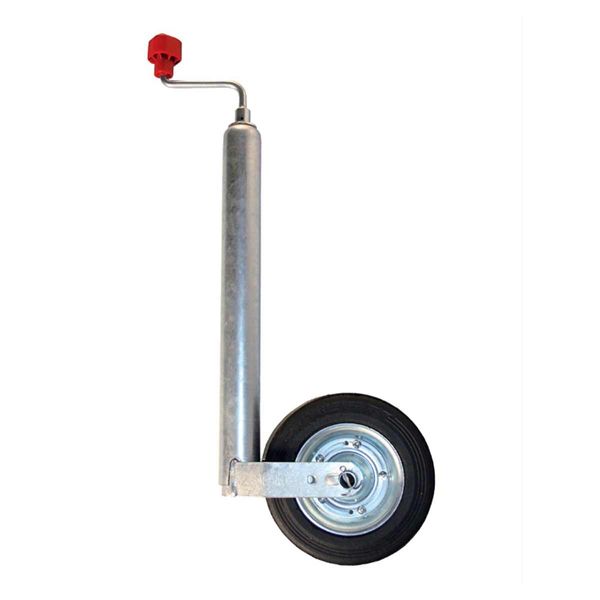

AL-KO Plus Jockey Wheel with a 48mm shaft and 200 x 50mm solid rubber wheel with a steel rim.
This jockey wheel is hot-dip galvanised with a high coat thickness of up to 70μm, offering a high level of protection against corrosion.
From the AL-KO ‘Plus’ jockey wheel range, this user-friendly model features a long design and built-in thrust bearing under the crank to facilitate operation.
It has a stationary nose weight of 150kg (max.) and a maximum nose weight of 90kg when manoeuvring, making it suitable for everyday trailer use.
This jockey wheel is from AL-KO's ‘Plus’ line, constructed to be entirely solid and robust and fulfil the basic needs of trailer users. The Plus jockey wheel models boast a high-quality finish, reliability, high-quality materials and longevity.
Stationary nose weight: Max. 150kg
Nose weight (manoeuvring): 90kg
Wheel: 200 x 50mm solid rubber
Wheel rim: Steel
Extended length: 250mm
Weight: 5kg
Product Code: ALK1222436
Key Features
48mm diameter shaft
200 x 50mm solid rubber wheel with steel rim
Hot-dip galvanised (up to 70 μm) for a high level of corrosion protection
150kg (Max.) Stationary nose weight
90kg (Max.) Manoeuvring nose weight
Extended length: 250mm
AL-KO ribbed jockey wheel with a 48mm anti-slip shaft and 200 x 50mm solid rubber wheel with a steel rim.
This user-friendly model features a long design and built-in thrust bearing under the crank to facilitate operation. It has a stationary nose weight of 300kg (max.) and a maximum nose weight of 180kg when manoeuvring.
Constructed to be entirely solid and robust, this jockey wheel fulfils the needs of everyday trailer users and has an electrogalvanized (8 μm) finish to help protect it against corrosion.
This anti-slip model is designed to prevent the crank from shaking loose under road vibrations. The wire bracket welded onto the outside tube of the jockey wheel can be hooked onto the crank to prevent the inside tube slipping out of the outside tube.
In addition to this, the outside of the jockey wheel has fluted indentations and the compatible cast clamp (product code ALK249804) has corresponding grooves. If the T-bar of the clamp is only tightened slightly, the jockey wheel cannot slip through (please note if the T-bar s not tightened at all, this anti-slip device will not function).
Stationary nose weight: Max. 300kg
Nose weight (manoeuvring): 180kg
Wheel: 200 x 50mm solid rubber
Wheel rim: Steel
Extended length: 250mm
Weight: 8kg
Product Code:ALK1223614
Key Features
48mm diameter shaft
200 x 50mm solid rubber wheel with a steel rim
Electro galvanised (8 μm) for corrosion protection
300kg (Max.) Stationary nose weight
180kg (Max.) Manoeuvring nose weight
Extended length: 250mm
Built-in thrust bearing facilitates smooth and effortless operation
Anti-slip crank mechanism prevents the crank from shaking loose during road vibrations
Welded bracket on the outside tube prevents the inside tube from slipping out
Outside tube features indentations for enhanced grip

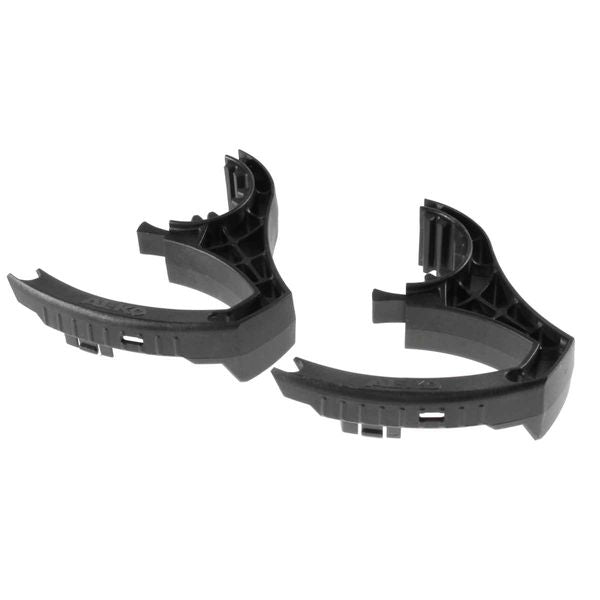

A sturdy handle designed to be retrofitted on jockey wheels with a 48mm outside shaft (tube) to provide assistance when maneuvering caravans and truck trailers.
This AL-KO handle also prevents loss of the jockey wheel when towing if a locking bar has not been tightened properly.
This product is supplied with fastening material and mounting instructions.
For more info, please click Pdf
Product Code: ALK1210182
The Ultimate Caravan Jockey Wheel from Kartt is designed for use with caravans and trailers and features a shaft diameter of 48mm and 220 x 65mm wide wheel.
This model features an extra thick outer shaft to ensure the clamp isn't overtightened, as well as an anti-slip/ribbed finish. The heavy-duty shaft has been designed and tested to safely handle a caravan or trailer with a nose weight of up to 350 kilograms.
The jockey wheel is equipped with a robust pistol grip handle that facilitates effortless winding and unwinding, particularly under heavy loads. Additionally, it features a durable 6mm wrap-around double-welded wheel hanger, ensuring enhanced strength and reliability.
The unique Kartt Turn-Lok™ mechanism ensures that the wheel and inner shaft remain securely locked, to prevent unwinding under normal road vibrations.
This jockey wheel incorporates an upgraded for 2023 "Super Wheel" featuring a durable steel rim, domed rivets and all-terrain rubber tyre to withstand the demands of manoeuvring and challenging conditions.
The corrosion resistant, all-weather, high-density electroplating provides enhanced durability and protection to help withstand the elements.
For the compatible cast iron clamp for this jockey wheel, see product code KCL4805.
For the replacement 220 x 65mm “Super Wheel” kit for this jockey wheel, see product code KW605.
Shaft diameter: 48mm
Maximum nose weight load: 350kg
Product weight 7.6kg
Tyre: Solid rubber
Rim: Steel
Wheel: 220 x 65mm
Key Features
Designed specifically for use with caravans
48mm diameter shaft for sturdy support
Unique Kartt Turn-Lok™ mechanism ensures that the wheel and inner shaft remain securely locked
Upgraded 'Super Wheel' with a durable steel rim, domed rivets, and an all-terrain rubber wheel
Heavy-duty, anti-slip shaft to safely handle caravan or trailer nose weights of up to 350 kilograms
All-weather, high-density electroplating provides enhanced durability and protection against the elements
2 Year warranty
Product Code: KJW4808
For Fitting Instructions Please Press This PDF
For Fitting Instructions Please Press This PDF
Kartt jockey wheel featuring a 48mm diameter shaft size providing robust support and stability for caravans or trailers with a maximum nose weight of 150kg.
The jockey wheel features a unique Turn-Lok™ system ensuring that the handle remains securely in place during travel, preventing the risk of it falling onto the road, whilst also eliminating the need for clips, chains or rubber bands.
The rubber wheel has a diameter of 200mm and a width of 50mm. For the replacement wheel kit for this jockey wheel, see product code KW006.
Shaft diameter: 48mm
Rim: Steel
Tyre: Solid rubber
Wheel diameter: 200 x 50mm
Length extension: 220mm
Maximum nose weight: 150kg
Product weight: 5.5kg
Spare wheel: Product code KW006
Key Features
Unique Turn-Lok™ system that helps prevent the handle from unwinding when travelling
48mm diameter tube size, providing strong support and stability for caravans or trailers
Can handle trailers with a maximum nose weight of up to 150kg
Solid rubber wheel with a diameter of 200mm and a width of 50mm
Product Code : KJW4803L
The Ultimate Caravan Jockey Wheel from Kartt is designed for use with caravans and trailers. This model features a shaft diameter of 48mm and a 220 x 65mm wide wheel.
The unique Kartt Turn-Lok™ mechanism ensures that the wheel and inner shaft remain securely locked, to prevent unwinding under normal road vibrations.
This jockey wheel incorporates an upgraded 2023 "Super Wheel" featuring a durable steel rim, domed rivets and an all-terrain rubber tire to withstand the demands of maneuvering and challenging conditions.
The heavy-duty shaft has been designed and tested to safely handle a caravan or trailer with a nose weight of up to 250 kilograms.
The corrosion-resistant, all-weather, high-density electroplating provides enhanced durability and protection to help withstand the elements.
For the compatible cast iron clamp for this jockey wheel, see product code KCL4804.
For the replacement 220 x 65mm “Super Wheel” kit for this jockey wheel, see product code KW605.
Shaft diameter: 48mm
Maximum nose weight load: 250kg
Product weight 6.8kg
Tyre: Solid rubber
Rim: Steel
Wheel: 220 x 65mm
Key Features
Designed specifically for use with caravans
48mm diameter shaft for sturdy support
Unique Kartt Turn-Lok™ mechanism ensures that the wheel and inner shaft remain securely locked
Upgraded 'Super Wheel' with a durable steel rim, domed rivets and an all-terrain rubber wheel
Heavy-duty shaft designed and tested to safely handle caravan or trailer nose weights of up to 250 kilograms
All-weather, high-density electroplating providing enhanced durability and protection against the elements
2 Year warranty.
Product Code: KJW4808
For Fitting Instructions Please Press This PDF
For Fitting Instructions Please Press This PDF
THE ESSENTIAL MAT FOR YOUR AWNING AND PRIVACY ROOM
The new design makes it more discreet, leaving unchanged the technical features that make it one of the most appreciated mats among camper owners. It is available in five different lengths (new length 490) to fit the Fiammastore range.
Made of small resistant polypropylene pipes, allowing the air to pass through leaving the carpet really light and easy to carry. Easy to clean the dirt from the surface by rinsing it with water.
Washable, flame retardant, and also UV resistant, maintains its color and technical features over time.
Manufacturer SKU: 07683-01-
Patio mat with a 6.5m² surface area suitable for awnings measuring 260cm to 280cm. This 2023 restyled version of the patio mat is more discreet than previous versions.
The mat is made of small resistant polypropylene pipes, allowing the air to pass through leaving the carpet really light and easy to carry. It is easy to clean the dirt from the surface by rinsing it with water.
Manufacturer SKU: 08756-01-
Made from 100% polypropylene recyclable fiber, this extremely strong and resistant mat is easy to clean and ideal for use when camping, caravanning or sitting under your awning. The carpet is waterproof and breathable, so it will not damage the ground underneath.
Manufacturer SKU: 250 x 550 Carpet
