The Victron MPPT controller will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement, of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and a large number of cells wired in series to produce 36 volts on the other.
To fully exploit the potential of the MPPT controller, the array voltage should be substantially higher than the battery voltage. The MPPT controller is the solution of choice for higher power systems because of the lowest overall system cost due to smaller cable cross sectional areas. It will also harvest substantially more power when the solar cell temperature is low (below 45°C), or very high (above 75°C), or when irradiance is very low.

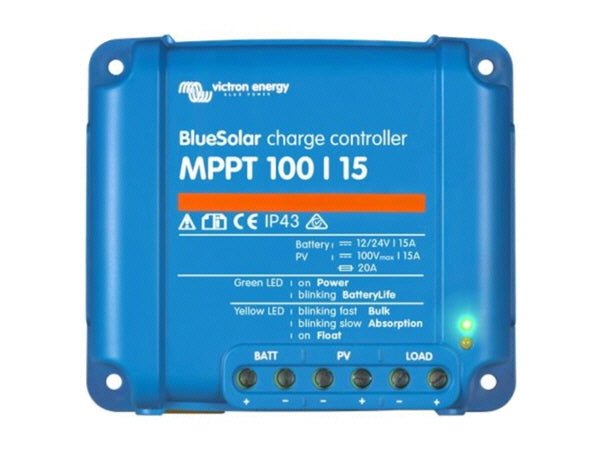

Features - of the BlueSolar MPPT 100V/15A Solar Charge Controller.
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
Real-time data display options
- Color Control GX or other GX devices:
BatteryLife: intelligent battery management by load shedding.
Senso4s PLUS is an ideal partner for your leisure vehicle.
Thanks to ATEX certification, Senso4s PLUS can also be used in a gas bottle locker of the leisure vehicle
Its movement sensor prevents faulty gas consumption results while driving.
Measuring accuracy: +/- 1%
Water and dust resistance IP44
Long-term forecast of gas consumption
Long battery life - upto 18 months
It can be used with gas cylinders of different sizes.
The Navy Compact Duvalay 4.5 Tog Sleeping bag from Duvalay is a luxury item. It comprises a Duvet and Topper combination that ensures the user has a relaxing and comfortable night's sleep. When rolled up it takes up minimal space and can be secured by the 2 retainer straps which are supplied as standard. Every Duvalay is reversible so can be left or right-handed allowing two to be used together to make a double. This is the perfect item for anybody who has a Caravan / Campervan / Motorhome or Boat or anybody who just enjoys Camping.
Brand
Duvalay
Type
Sleeping Bags
Width
66cm
Depth
2.5cm
Length
190cm
Weight
4.6kg
Colour
Navy
Diameter Description
34cm Rolled Up
The Plum Compact Duvalay 4.5 Tog Sleeping bag from Duvalay is a luxury item. It comprises a Duvet and Topper combination that ensures the user has a relaxing and comfortable night's sleep. When rolled up it takes up minimal space and can be secured by the 2 retainer straps which are supplied as standard. This is the perfect item for anybody that has a Caravan / Campervan / Motorhome or Boat, or anybody that just enjoys Camping.
Key Features
Most portable Duvalay sleeping bag
Duvet and topper combination
One for single, two to make a double
Brand Duvalay
Type Sleeping Bags
Width 66cm
Depth 2.5cm
Length 190cm
Weight 4.6kg
Colour plum
Diameter Description 34cm Rolled Up
Brand
Duvalay
Type
Sleeping Bags
A stylish solid brass thermostatic bar shower mixer with a polished chrome finish. Features include separate flow and temperature controls, ceramic disc technology and automatic shut off in the event of water failure.
System compatibility: Gravity fed, pumped, unvented mains, mains pressure and combi boiler
Centres: 150mm
Minimum pressure: 0.5 bar
Maximum pressure: 5 bar
Manufactured for GEM Taps and Showers
Connections Description
S Connectors
Brand
AG
Type
Shower Valves & Mixers
Height
360 mm
Width
83 mm
Depth
83 mm
Finish
Chrome
Weight
1.65 kg
Thetford Series 33 left hand triangular bowl in stainless steel, with rear hinged black glass lid. Includes siphon waste.
• Height 140mm x Width 480mm x Depth 480mm
• Black glass lid
• Weight 2.9kg
• Pre-drilled tap hole
Specification
Brand
Thetford
Type
Sink
Shape Description
Triangular
Height Description
Overall: 140mm, Bowl: 92mm
Width
Outside Width: 480mm / Bowl Width: 455mm
Length
480mm / Bowl Length: 276mm
Weight
2.9kg
Material
Stainless Steel and Glass
Colour
Black and Silver
Thetford Series 33 right hand triangular bowl in stainless steel, with rear hinged black glass lid. Includes siphon waste.
Height 140mm x Width 480mm x Depth 480mm
Black glass lid
Weight 2.9kg
Pre-drilled tap hole
Specifications
Brand Thetford
Type Sink
Shape Description Triangular
Height Description Overall: 140mm, Bowl: 92mm
Width Outside Width: 480mm / Bowl Width: 455mm
Weight 2.9kg
Material Stainless Steel and Glass
Colour Black and Silver
Length 480mm / Bowl Length: 276mm
Thetford Series 34 rectangular bowl/sink in stainless steel, with rear hinged black glass lid. Includes sink waste.
• Overall dimensions: Height 140mm x Width 400mm x Depth 445mm
• Inside bowl dimensions: Height 92mm x Width 338mm x Depth 280mm
• Worktop cut out dimensions: Width 387mm x Depth 429mm
• Black glass lid.
• Weight 2.9 Kg
• Pre-drilled tap hole
This 80W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 80 Watt solar power kit, you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc.
1 X 80W Polycrystalline Solar Panel
1 X 6M Extension Cables & Connectors
1 X Sunshine 4 Plastic Corner Mounts
1 X ABS Waterproof Cable Entry Cover
1 X Charge Controller Selection
Description
This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter.
Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:
Single Battery Controller
MPPT Single Battery Controller
MPPT Dual Battery Controller
NOT the Dual Battery Controller
If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.Solar Panel Specifications
High-Efficiency Monocrystalline Cells
Maximum Power (Pmax): 60W
Maximum Power Current (Ipm): 3.48A
Maximum Power Voltage (Vmp): 17.2V
Short Circuit Current (Isc): 3.57A
Open Circuit Voltage (Voc): 21.5V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 1060 x 460 x 35mm
Weight: 6.1kg
Kit Performance - Summertime
Standard Controller: 17Ah per day - (10-30% more with MPPT Controller)
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.
For More Info Please Click PDF For More Info On Installations And Maintenance.
