Complete EC155/EC51 Kit
The EC155 / EC51 Complete Electrical Kit is specifically designed for customers that are building their own motorhome or caravan conversion
The additional features that this has over the EC50 is that with this you get fresh water and waste water tanks sensors
Compact touch button control
Inside the Box:
EC155 power supply unit
EC51 control panel
5m length control lead
EC155 DIY 230v & 12v harness
Waste water harness
Fresh water harness
Waste tank sensor
Fresh tank sensor kit

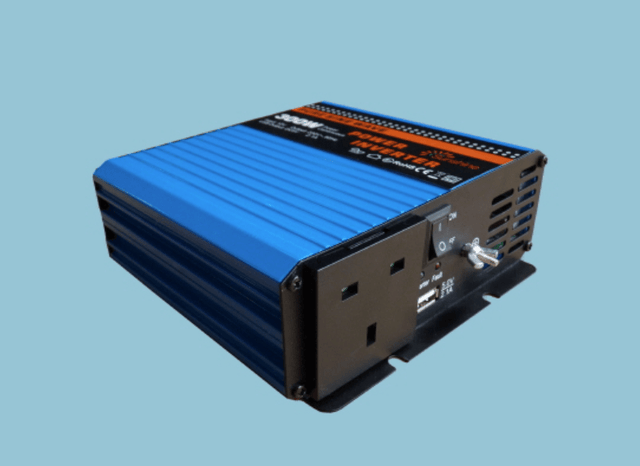

Convert DC power from your battery into AC power enabling use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
This Sunshine C-Series Power Inverter carries the e-Mark, this European conformity mark issued by the transport sector, indicates that this power inverter complies with relevant laws and regulations or directives.
Sunshine Inverters are supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.The Sunshine C-Series Power Inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances. FEATURES
Soft Start
RCD Compatibility - Switchable
USB Port
Single AC outlets
Over-temperature protection
Low battery voltage alarm 10.5V
Low battery voltage shutdown 11.5V
Over voltage shutdown 15.5V
Overload protection, short circuit protection, polarity reverse connection protection
*Optional Extra - Remote On/Off Switch*
Specifications
600W pure sine wave power inverter
Output waveform: pure sine wave inverter
Continuous power: 600 Watt
Surge power: 1200 Watt
Input voltage: 10-15.5V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >90%
Dimension (L*W*H): 26*15*7.77cm
Weight: 2.2KG
Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.
Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances.
FEATURES
Single AC Outlet
Battery Cable Connections
Over-temperature protection
Low battery voltage alarm
Low battery voltage shutdown
High battery voltage shutdown
Overload protection, short circuit protection, polarity reverse connection protection
Specifications
300W Modified sine wave power inverter
Output waveform: Modified sine wave inverter
Continuous power: 300watt
Surge power: 600Watt
Input volt: 10-15V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >86%
Dimension (L*W*H): 150*105*55mm
Weight: 0.54KG
