LIFOSWe are delighted to bring to market this new Lithium Iron Phosphate (LiFePO4) battery - the most stable Lithium chemistry available.We have taken time to develop, research & test this battery to ensure it delivers safe, reliable and cost effective power.
The LiFOS Advanced Lightweight Lithium Battery uses the latest Lithium Iron Phosphate (LiFePO4) technology to produce an exceptional depth of discharge and a very long battery life.
Lithium batteries are also extremely light compared to conventional lead acid batteries, making them very practical and easy to fit.
It has an inbuilt management system that protects the battery from discharging to deeply and speed up charging.
There is also a free connected smart phone app that allows users to monitor the state of charge, voltage, power & more.
Version 2 (V2) of the Lifos includes an improved Battery Management System (BMS) with the following new benefits:-
Now works with 99% of all battery chargers
The LiFOS can now be reactivated from low voltage without the need of a charger or power supply. This is thanks to pulses from the battery pack that will switch the battery back on when in a state of low voltage.
LiFOS V2 batteries can also be used to create a powerbank, Up to 4 can be connected to create a bank of up to 48V or 272Ah.
TECHNICAL SPECIFICATION
Terminals
Red Black
Brand
Lifos
Voltage
12 Volts
Technology
Lithium
Capacity (C5)
68 Ah
Capacity (C20)
120 Ah
Length
257.5 mm
Width
175 mm
Height inc. terms
200.8 mm
Height exc. terms
190 mm
Guarantee
5 Years

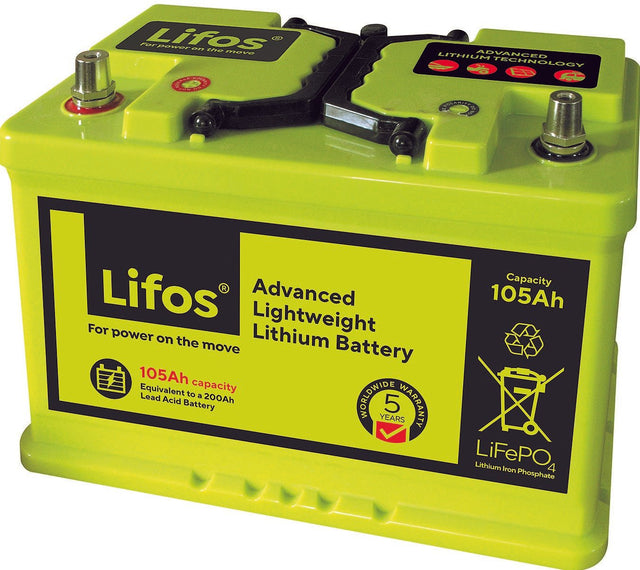

The LiFOS Advanced Lightweight Lithium Battery uses the latest Lithium Iron Phosphate (LiFePO4) technology to produce an exceptional depth of discharge and a very long battery life.
Lithium batteries are also extremely light compared to conventional lead acid batteries, making them very practical and easy to fit.
It has an inbuilt management system that protects the battery from discharging too deeply and speed up charging.
There is also a free connected smart phone app that allows users to monitor the state of charge, voltage, power & more.
TECHNICAL SPECIFICATION
Terminals
Brand
Lifos
Product Code
LB0105
Voltage
12 Volts
Technology
Lithium
Capacity (C5)
105 Ah
Capacity (C20)
200 Ah
Length
328 mm
Width
177 mm
Height inc. terms
233 mm
Height exc. terms
218 mm
Guarantee
5 Years
Barcode (EAN)
5060043535681
TUTORIALS
Caring for your Battery
Battery Warranty Information
The RI_LFP12150 lithium battery utilises lithium iron phosphate technology which produces a significantly better depth of discharge and number of cycles than conventional lead acid batteries. It is also up to 50% lighter than lead acid batteries, completely maintenance free and has built in protection against overcharging, high current and high temperature.
Specifications
Voltage
12.8 Volts
Technology
Lithium
Capacity (C20)
150 Ah
Length
483 mm
Width
170 mm
Height inc. terms
241 mm
Weight
20 kg
Features
Using the technology of lithium iron phosphate cell, superior safety, over 3000 cycles @ 80% DOD, under normal conditions
Built-in automatic protection for over-charge, over discharge, over current and over temperature
Free of maintenance
Internal cell balancing
Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
Applications
Caravan/Motorhome & Leisure
UPS Systems
Solar & Wind Power System
Golf Cart
Electric Vehicle
Lighting
SAFETY
LiFePO4 cells, high consistency, long cycle life and much safer.
UN38.3, CE certification.
DESIGN
ABS case.
Fast charge performance. l -20~+55° C widely temperature range.
Maintenance free.
BATTERY MANAGEMENT SYSTEM
Integrated hardware BMS inside.
Independent protection for charge and discharge.
Over voltage, low voltage, over temperature and short circuit protection.
PRODUCT CODE: RI_LFP12150
RI_LFP12150 lithium battery Data sheet
