The Inverter RS Smart is a powerful 48 VDC, 6 kVA 230 VAC inverter. It features a modern design and high frequency technology, weighing only 11kg and has excellent efficiency, low standby power, and very quiet operation.
The Inverter RS Smart is a powerful 48 VDC, 6 kVA 230 VAC inverter. It features a modern design and high-frequency technology, weighing only 11kg and has excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out the battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE. Can Port, for connection to a GX device for system monitoring.
The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port, for connection to a GX device for system monitoring.
Features of the - Victron Inverter 48V 6000VA RS Smart
Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
Display and Bluetooth
The display reads battery and inverter parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates.
I/O Connections
Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron small BMS.
PRODUCT CODE: PIN482600000
For more Information Please Click The Link Below:
Additional Information
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

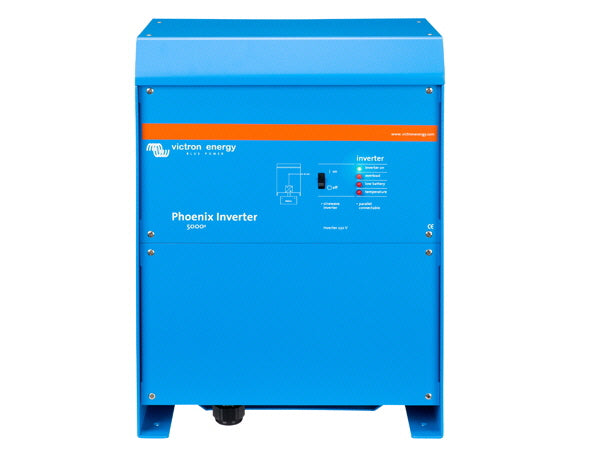

Features of the - Victron Phoenix Inverter 48V/5000VA VE.Bus
SinusMax – Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch

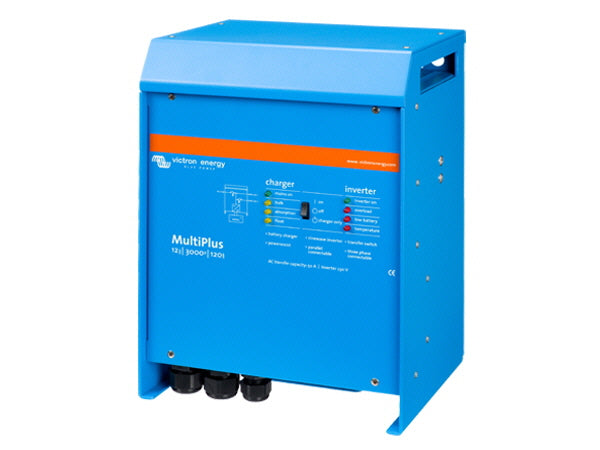

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
Computer interface
All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerised monitoring and control systems.
PRODUCT CODE: PIN485020000
For more information Please click the link below:
The Phoenix Inverter Smart is an efficient and reliable inverter. Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

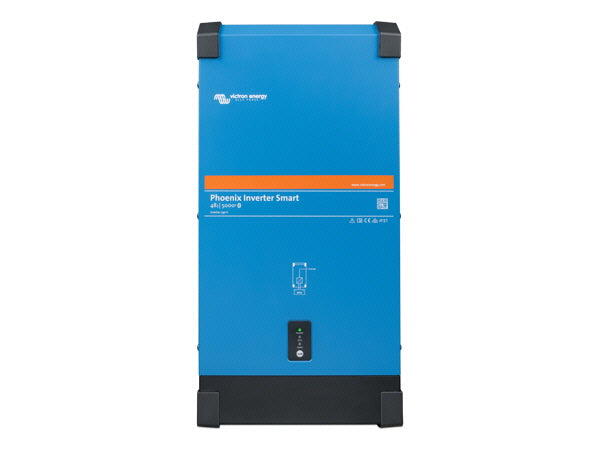

Features of the - Victron Phoenix Inverter Smart 48V/5000VA - 230V
Bluetooth built-in: fully configurable with a tablet or smartphone
Low battery voltage alarm
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210 – 245V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Alarm relay
Monitoring: In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
PRODUCT CODE: PIN482500000
For more iInformation Please Click the Link Below:
Additional Information
The Phoenix Inverter Smart is an efficient and reliable inverter. Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Features of the - Victron Phoenix Inverter Smart 48V/3000VA - 230V
Bluetooth built-in: fully configurable with a tablet or smartphone
Low battery voltage alarm
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210 – 245V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Alarm relay
Monitoring: In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
PRODUCT CODE: PIN482300000
For more Information please click the link below:
Additional Information
The Phoenix Inverter Smart is an efficient and reliable inverter. Bluetooth is built-in, and makes setting up your high-power inverter easier than ever before.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

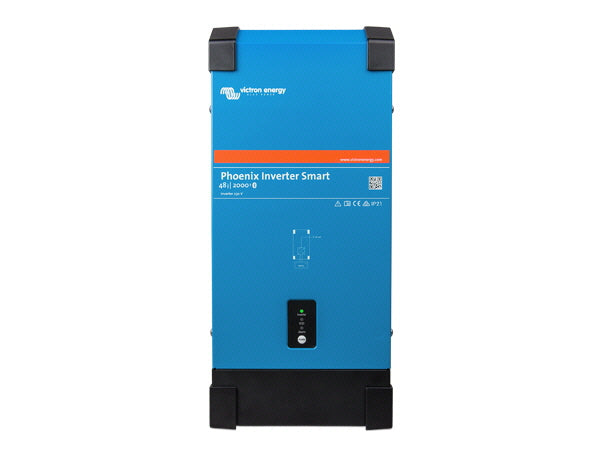

Features of the - Victron Phoenix Inverter Smart 48V/2000VA - 230V
Bluetooth built-in: fully configurable with a tablet or smartphone
Low battery voltage alarm
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210 – 245V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Alarm relay
Monitoring: In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
PRODUCT CODE: PIN482201000
For more info, please click the link below:
Additional Information
The Phoenix Inverter Smart is an efficient and reliable inverter. Bluetooth is built-in, and makes setting up your high-power inverter easier than ever before.
For more info, please view Pdf
Victron Inverters allow you to power domestic equipment – requiring 230V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.
For more info, please view Pdf
Victron Inverters allow you to power domestic equipment – requiring 230V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

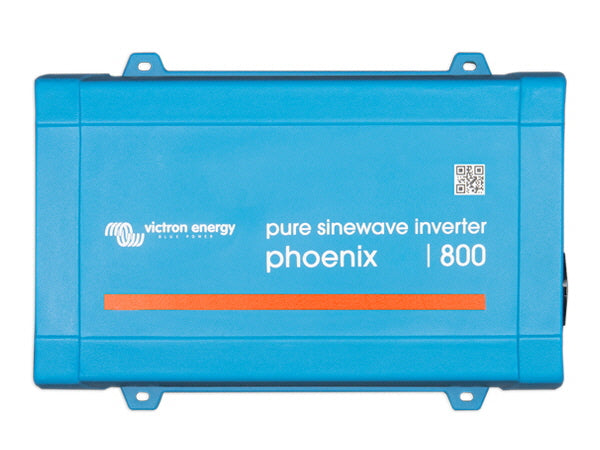

Features of the - Victron Phoenix Sine Inverter 48V 800VA -230V VE.Direct - UK
VE.Direct communication port
The VE.Direct port can be connected to:
A computer (VE.Direct to USB interface cable needed)
Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
Low battery voltage alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage 210 – 245V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Monitoring:
In- and output voltage, % load and alarms
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
DC connection with screw terminals
No special tools needed for installation.
PRODUCT CODE: PIN481801400
For more information please click the link below:
Additional Information
Victron Inverters allow you to power domestic equipment – requiring 230V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.
For more info, please view Pdf
Victron Inverters allow you to power domestic equipment – requiring 230V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.
For more info, please view Pdf
PIN482510400 - Victron Inverters allow you to power domestic equipment – requiring 230V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

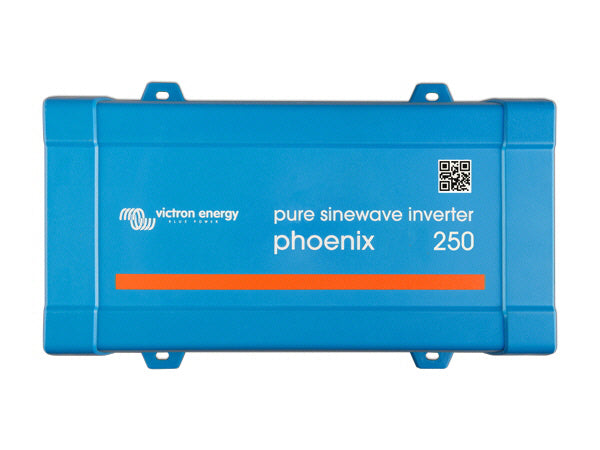

Features of the - Victron Phoenix Sine Inverter 48V 250VA -230V VE.Direct - UK
VE.Direct communication port
The VE.Direct port can be connected to:
A computer (VE.Direct to USB interface cable needed)
Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
Low battery voltage alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage 210 – 245V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Monitoring:
In- and output voltage, % load and alarms
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
DC connection with screw terminals
No special tools needed for installation.
PRODUCT CODE: PIN482510400
For more info, please Click The Link Below:
Additional Information
High efficiency pure sine wave power inverters from Victron. For use with 48 volt battery banks. Developed for professional use and suitable for a wide range of applications.
