Victron Inverters 12V

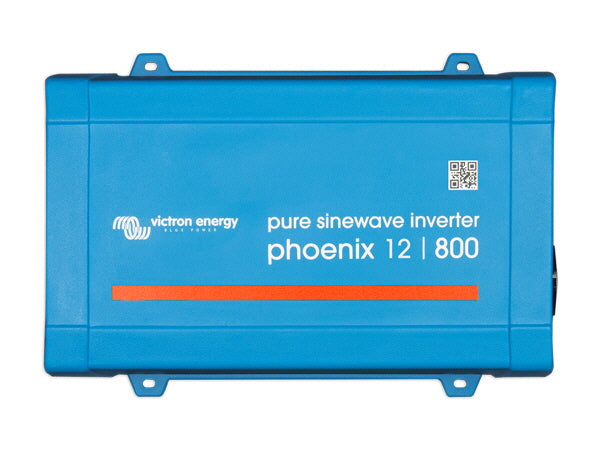

Manufacturer : Victron Energy Output Wave Form : Pure Sine Wave Voltage (V) : 12 Continuous Power (W) : 650 Peak Power (W) : 1500 Continuous Output Power (VA) : 800 Features VE.Direct communication port  The VE.Direct port can be connected to: • A computer (VE.Direct to USB interface cable needed)  • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) • UK Type Socket Fully configurable:  • Low battery voltage alarm trip and reset levels  • Low battery voltage cut-off and restart levels  • Dynamic cut-off: load dependent cut-off level  • Output voltage 210 - 245V  • Frequency 50 Hz or 60 Hz  • ECO mode on/off and ECO mode sense level  Monitoring:  • In- and output voltage, % load and alarms  Proven reliability  The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  High start-up power  Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.  ECO mode  When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.  Remote on/off  A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.  LED diagnosis  Please see the manual for a description.  To transfer the load to another AC source: the automatic transfer switch For our low-power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will operate without disruption.

Read more less

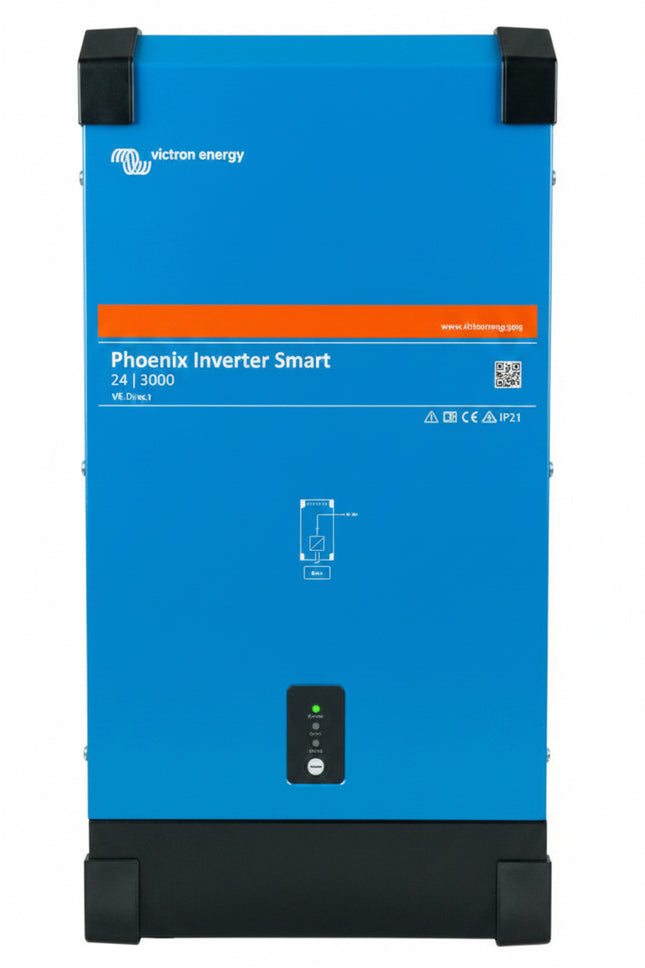

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems. It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.  Description Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.  Features of the - Victron SMART Phoenix Inverter 12V 3000VA - 230V Bluetooth built-in: fully configurable with a tablet or smartphone  Low battery voltage alarm  Low battery voltage cut-off and restart levels  Dynamic cut-off: load dependent cut-off level  Output voltage: 210 – 245V  Frequency: 50 Hz or 60 Hz  ECO mode on/off and ECO mode sense level  Alarm relay  Monitoring: In- and output voltage, load and alarms  VE.Direct communication port  The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.  Proven reliability  The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  High start-up power  Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode  When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.  Remote on/off  A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  To transfer the load to another AC source: the automatic transfer switch  For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.  For more info on installation please click this link>>Pdf

Read more less

TPhoenix Inverter Control VE.Direct panel is intended for remote on/off control of all the VE.Direct Phoenix inverter models.

Read more less

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.  Description Features of the - Victron Energy Phoenix Inverter 12V 3000VA VE.Bus  SinusMax – Superior engineering Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. Extra start-up power A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances. Virtually unlimited power thanks to parallel and 3-phase operation capability Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.  To transfer the load to another AC source: the automatic transfer switch If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds). Computer interface All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.  Pdf

Read more less

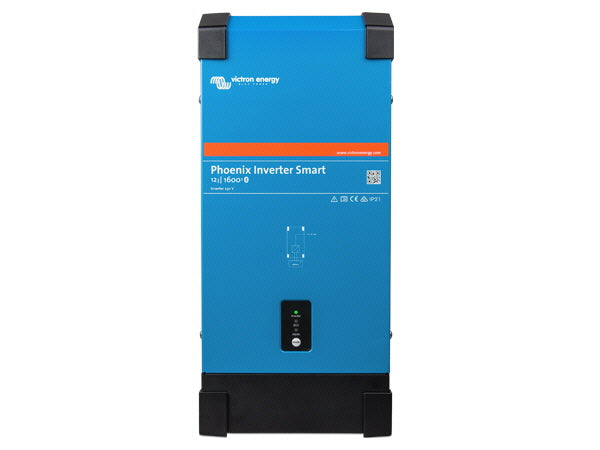

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems. It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish. Features of the - Victron SMART Phoenix Inverter 12V 1600VA - 230V Bluetooth built-in: fully configurable with a tablet or smartphone Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage: 210 – 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relay Monitoring: In- and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters. Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on. Remote on/off A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example). To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch. PRODUCT CODE: PIN122161000 For more info about this product please click this link: Additional Information

Read more less

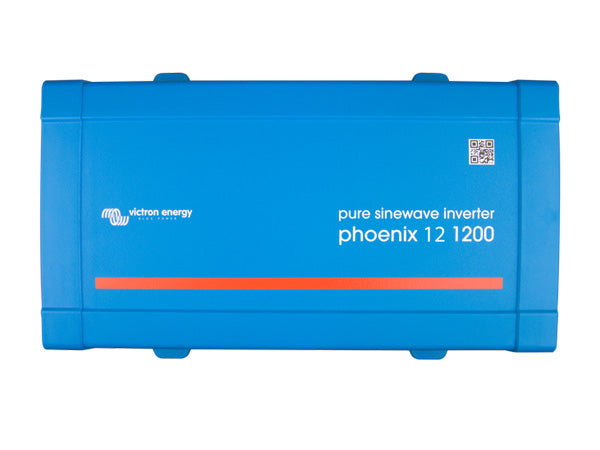

This inverters allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V DC. Victron Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.  Description Manufacturer : Victron Energy Output Wave Form : Pure Sine Wave Voltage (V) : 12 Continuous Power (W) : 1000 Peak Power (W) : 2200 Continuous Output Power (VA) : 1200 Features VE.Direct communication port  The VE.Direct port can be connected to: • A computer (VE.Direct to USB interface cable needed)  • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) • UK Type Socket Fully configurable:  • Low battery voltage alarm trip and reset levels  • Low battery voltage cut-off and restart levels  • Dynamic cut-off: load dependent cut-off level  • Output voltage 210 - 245V  • Frequency 50 Hz or 60 Hz  • ECO mode on/off and ECO mode sense level  Monitoring:  • In- and output voltage, % load and alarms  Proven reliability  The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  High start-up power  Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.  ECO mode  When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.  Remote on/off  A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.  LED diagnosis  Please see manual for a description.  To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will operate without disruption. For more info about this product please click this link>>Pdf

Read more less

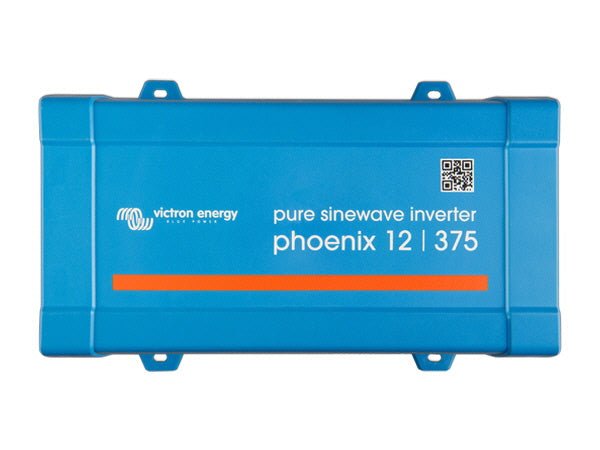

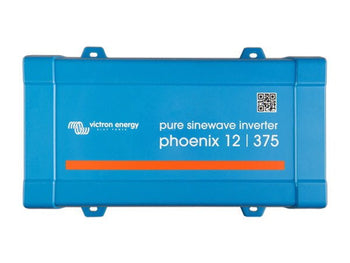

This inverters allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V DC. Victron Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected. Description Manufacturer : Victron Energy Manufacturer : Victron Energy Output Wave Form : Pure Sine Wave Voltage (V) : 12 Continuous Power at 25°C/40°C: 300/260W Peak Power (W) : 700 Continuous Power at 25°C (1) : 375VA Features VE.Direct communication port  The VE.Direct port can be connected to: • A computer (VE.Direct to USB interface cable needed)  • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) • UK Type Socket Fully configurable:  • Low battery voltage alarm trip and reset levels  • Low battery voltage cut-off and restart levels  • Dynamic cut-off: load dependent cut-off level  • Output voltage 210 - 245V  • Frequency 50 Hz or 60 Hz  • ECO mode on/off and ECO mode sense level  Monitoring:  • In- and output voltage, % load and alarms  Proven reliability  The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.  High start-up power  Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.  ECO mode  When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.  Remote on/off  A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.  LED diagnosis  Please see manual for a description.  To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.   For more info please click this link>>Pdf

Read more less

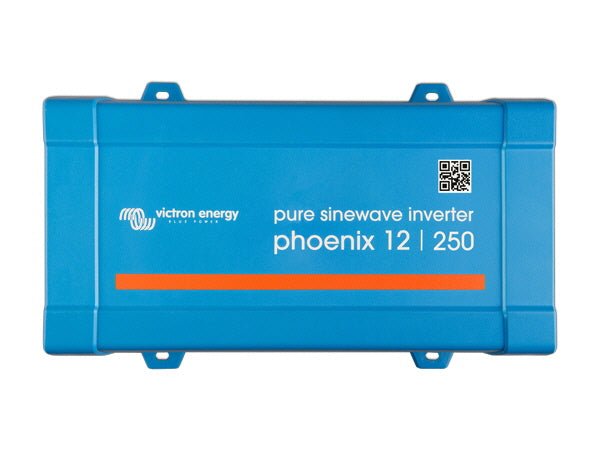

This inverters allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V DC. Victron Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected. Manufacturer : Victron Energy Output Wave Form : Pure Sine Wave Voltage (V) : 12 Continuous Power (W) : 200 Peak Power (W) : 400 Continuous Output Power (VA) : 250 Features VE.Direct communication port The VE.Direct port can be connected to: • A computer (VE.Direct to USB interface cable needed) • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) • UK Type Socket Fully configurable: • Low battery voltage alarm trip and reset levels • Low battery voltage cut-off and restart levels • Dynamic cut-off: load dependent cut-off level • Output voltage 210 - 245V • Frequency 50 Hz or 60 Hz • ECO mode on/off and ECO mode sense level Monitoring: • In- and output voltage, % load and alarms Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/off A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector. LED diagnosis Please see manual for a description. To transfer the load to another AC source: the automatic transfer switch For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. PRODUCT CODE: PIN121251400 For more info please click this link: Additional Information

Read more less
