This storage accessory can be added to the bottom of the Thetford K1520 cooker, product code N464, to provide additional storage for pans and bring the cooker to a full working height.
Brand
Thetford
Type
Oven Storage
This mini cooker includes a twin hob, a separate grill compartment and compact oven. All burners are protected by flame failure safety cut-outs.
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Key Features
Thermostatically controlled oven
Compact yet powerful grill
Can be used on butane or propane
Connections Description
5/16" Spigot
Brand
Leisure Products
Type
Ovens Hobs Grills
Model
4500
Oven Burner
1.2kW
Height
505mm
Width
450mm
Depth
420mm
Weight
20.0kg
Material
Glass Doors
Colour
Black and Silver
Gas Burners
2 x 2.0kW
Grill Burner
1.6kW
Ignition
Yes
Knobs
Silver
Total Input
6.8kW
The Triplex cooker offers multi-function versatility with its single cavity featuring both the oven and grill, and a 3 burner hob, all provided in a durable, light weight and easy-to-clean unit.
3 burners (1 auxiliary burner, 2 semi-rapid burners)
High-quality materials and components
Stainless interior
Sealed rattle free burners
12V electronic ignition
Oven volume: 36 Litres
Durable & light weight
Flame failure, automatic gas shut-off on all burners
Overall dimension: Height 468mm x Width 463mm x Depth 500mm
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Key Features
3 burners (1 auxiliary burner, 2 semi-rapid burners)
12V electronic ignition
Flame failure, automatic gas shut-off on all burners
Metal casted, sealed burners
Hotplate, grill & oven combination
Stainless interior
Durable & light weight
High-quality materials
Connections Description
5/16" Spigot
Brand
Thetford
Model
Triplex
Type
Ovens Hobs Grills
Oven Burner
1.6kW
Height
468mm
Width
463mm
Depth
500mm (19.7")
Weight
21.5kg
Material
Glass Doors
Colour
Black
Gas Burners
1 x 2.4kW, 2 x 1.8kW
Grill Burner
1.6kW
Ignition
12v
Knobs
Nickle
Total Input
9.2kW
Capacity Description
36 Litres
Downloads
Data Sheet
Brochure
This mini cooker includes a twin hob, a separate grill compartment and compact oven. All burners are protected by flame failure safety cut-outs.
Thermostatically controlled oven
Compact yet powerful grill
Can be used on butane or propane
Max Input: 6.81kw (494 g/h)
Weight: 20.0Kg
Gas inlet connection - 5/16" Spigot
Overall Dimensions: 450mm(W) x 505(H) x 420(D)
Key Features
Thermostatically controlled oven
Compact yet powerful grill
All burners are protected by flame failure safety cut-outs
Door safety catch to prevent the door opening if the boat heels
Can be used on butane or propane
Connections Description
5/16" Spigot
Brand
Leisure Products
Type
Ovens Hobs Grills
Model
4500
Oven Burner
1.2kW
Height
505mm
Width
450mm
Depth
420mm
Weight
20.0kg
Material
Glass Doors
Colour
Silver
Gas Burners
2 x 2.0kW
Grill Burner
1.6kW
Ignition
No
Knobs
Silver
Total Input
6.8kW
This mini cooker includes a twin hob, a separate grill compartment and compact oven. All burners are protected by flame failure safety cut-outs.
• Thermostatically controlled oven
• Battery Ignition
• Compact yet powerful grill
• Can be used on butane or propane
• Max Input: 6.81 kw (494 g/h)
• Weight: 20.0Kg
• Gas inlet connection - 5/16" Spigot
• Overall Dimensions: 450mm (W) x 505(H) x 420(D)
Key Features
Thermostatically controlled oven
Compact yet powerful grill
All burners are protected by flame failure safety cut-outs
Door safety catch to prevent the door opening if the boat heels
Can be used on butane or propane
Connections Description
5/16" Spigot
Brand
Leisure Products
Type
Ovens Hobs Grills
Model
4500
Oven Burner
1.2kW
Height
505mm
Width
450mm
Depth
420mm
Weight
20.0kg
Material
Glass Doors
Colour
Silver
Gas Burners
2 x 2.0kW
Grill Burner
1.6kW
Ignition
Battery
Knobs
Silver
Total Input
6.8kW
A sleek electric ceramic hob with three 1200W elements each with their own timer.
This unit measures 515 x 480 x 45mm and features a bevelled glass edge and an LED on/off indicator.
An easy to use child lock prevents cooker settings being changed during cooking and the hot hob indicator helps to prevent accidents.
The power boost setting brings the hob to temperature quickly and the touch slider allows you to adjust the settings with just the slide of a finger.
The vitroceramic glass surface is easy to clean and can be surface mounted or recess mounted.
Specification
Brand
Leisure Products
Voltage Description
230V AC
Shape Description
Rectangular
Height Description
45mm
Width
515mm
Depth
480mm
Colour
Black
Wattage
3 x 1200W
Input
Max heat input: 3.6kW
The Topline 902 is an induction hob developed for use in your caravan or motorhome including all safety and easy to use functionalities. Made from high quality Schott Ceran glass.
Qualities:
-High-quality materials and components
-Contemporary, home-like design
-Optimal use of space
-Superior cooking performance
Specification
Dimensions
Overall dimensions (hxwxd) - 53 x 305 x 500mm
Brand
Thetford
Type
Indiuction hob
Voltage Description
230V AC
Model
Topline 902
Shape Description
Rectangular
Amps Description
10A
Height Description
53mm
Width
305mm
Depth
500mm
Weight
5.5kg
Material
Schott Ceran glass, Hob material - Black ceramic glass
Colour
Black
Cut Out
Worktop cut-out dimensions (wxd) - 274 x 482mm
Gas Burners
Induction zones - 1 x 1.4kw (1.8kw Boost) / 1 x 1.8 kW (2.3kw Boost)
Knobs
Touch control
Total Input
Heat (electric) - 2.3kw
Fuel
Electric
Contents
1 x induction hob
Thetford Topline 169 hob unit
• Flame failure device
• Rattle free, 3x metal cast burners
• 2 x 1.5 kw, 1 x 2.5 kw burners
• Black glass lid
• Height 105mm x Width 546mm x Depth 482mm
• Weight 10.7kg
• 12V ignition
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Specification
Brand
Thetford
Type
Hob Unit
Model
Topline 169
Shape Description
Rectangular
Height Description
105mm (4.1")
Width
546mm
Depth
482mm
Weight
10.5kg
Material
Stainless Steel and Glass
Colour
Black
Cut Out
514 x 450mm
Gas Burners
3
Ignition
12V
Knobs
Matt Nickle
Total Input
5.5kW
Wattage
2.5 kW (x1), 1.5 kW (x2)
Thetford Series 345 Rectangular Hob Unit with 12V ignition
• Dimensions: Height 100mm x Width 540mm x Depth 445mm
• Worktop Cut-Out: Width 527mm x Depth 429mm
• Glass Lid
• Surface mounted
• Total Heat Input (kw): 5.5
• Burners: 2 x 1.5 kw, 1 x rapid burner 2.5 kw
• Ignition: 12V
• Weight: 6.0kg
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Specification
Brand
Thetford
Type
Hob Unit
Model
Series 345
Shape Description
Rectangular
Height Description
100mm (3.9")
Width
540mm
Depth
445mm (17-1/2")
Weight
6.0kg
Material
Stainless Steel and Glass
Colour
Black and Silver
Cut Out
527 x 429mm
Gas Burners
3
Ignition
12V
Knobs
Matt Nickle
Total Input
5.5kW
Wattage
2.5 kW (x1), 1.5 kW (x2)
Thetford Series 330 triangular right hand hob in stainless steel, with rear hinged black glass lid.
• 12v Ignition
• Dimensions: Height 100mm x Width 480mm x Depth 480mm
• Worktop Cut-Out: Width 453mm x Depth 460mm
• Stainless Steel
• Glass Lid
• Fixation: Surface mounted
• Total Heat Input (kw): 4.5
• Burners: 3 x 1.5 kw
• Weight: 4.5kg
• Right Hand
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Specification
Brand
Thetford
Type
Hob Unit
Model
Series 330
Shape Description
Triangular
Height Description
100mm (3.9")
Width
540mm
Depth
445mm (17-1/2")
Weight
6.0kg
Material
Stainless Steel and Glass
Colour
Black and Silver
Cut Out
527 x 429mm
Gas Burners
3
Ignition
12V
Knobs
Matt Nickle
Total Input
5.5kW
Wattage
2.5 kW (x1), 1.5 kW (x2)
Transform your motorhome or caravan kitchen with the Topline 922 domino gas hob, a perfect blend of style, quality, and performance. This compact 2-burner hob features a strong tempered glass countertop that not only looks stunning but is also incredibly durable and easy to clean.
Designed with optimal space utilization in mind, the Topline 922's domino shape makes it ideal for smaller kitchens without sacrificing cooking capability. The two gas burners provide excellent heat control and efficiency, allowing you to prepare delicious meals wherever your travels take you.
Built from high-quality materials and components, this hob is engineered to withstand the demands of mobile living while maintaining a contemporary, home-like aesthetic. The sleek glass surface gives your kitchen a modern, clean look that complements any interior design.
Whether you're a weekend adventurer or a full-time motorhome enthusiast, the Topline 922 delivers superior cooking performance in a space-saving package. Experience the perfect combination of functionality and style with this exceptional gas hob.
2 Gas Burners - Dual burner configuration for versatile cooking.
Brand
Thetford
Model
Topline 922
Shape Description
Domino
Width
305mm
Depth
95mm
Length
500mm
Weight
5kg
Material
Glass
Colour
Black
Gas Burners
2
Lid
No
Ignition
12V Spark Ignition
Primary Construction
Glass
Capacity Description
Hob capacity (recommended pan sizes) - 2 x Ø120 - Ø200 mm
Input
Total heat input - 3kw, Max input gas - 216.0 g/h
•Domino Design - Compact, space-saving shape ideal for motorhomes
•Strong Glass Countertop - Durable tempered glass surface
•Easy to Clean - Smooth glass top wipes clean effortlessly
•Contemporary Style - Modern, home-like aesthetic
•High-Quality Construction - Premium materials for long-lasting performance
•Optimal Space Use - Maximum cooking capability in minimal space
•Superior Performance - Efficient gas burners with excellent heat control
1. Space Efficiency - Domino design maximizes cooking capability in limited space
2.Durability - Strong glass countertop withstands mobile living demands
3.Easy Maintenance - Smooth glass surface cleans quickly and easily
4.Modern Aesthetics - Contemporary design elevates your motorhome interior
5.Quality Construction - Premium materials ensure long-lasting performance
6.Versatile Cooking - Two burners handle multiple dishes simultaneously
7.Home Comfort - Brings familiar home-kitchen experience to your travels

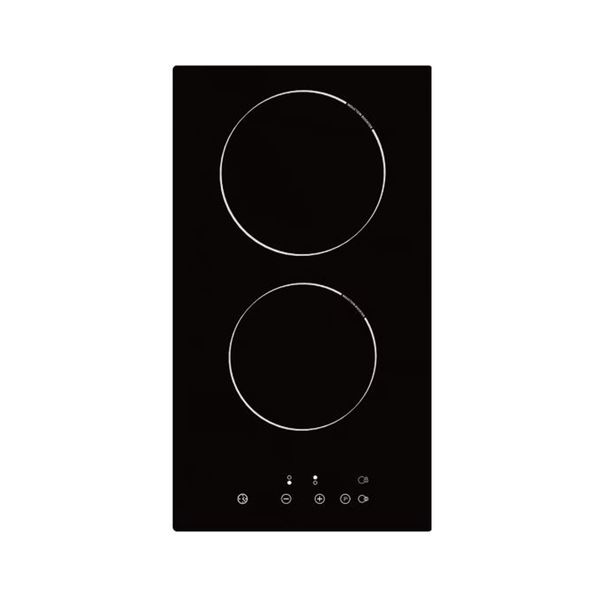

A 30cm induction hob unit featuring two cooking zones, nine power levels, residual heat indicator and timer.
Key Features
Touch Control
Two cooking zones
2 x Boost function
Timer
Residual Heat Indicator
13amp Connection
Brand
Culina
Type
Induction Hob Units
Model
UBIND30FLC
Colour
Black
Appliance Data Sheet UBIND30FLC
N627 spec sheet

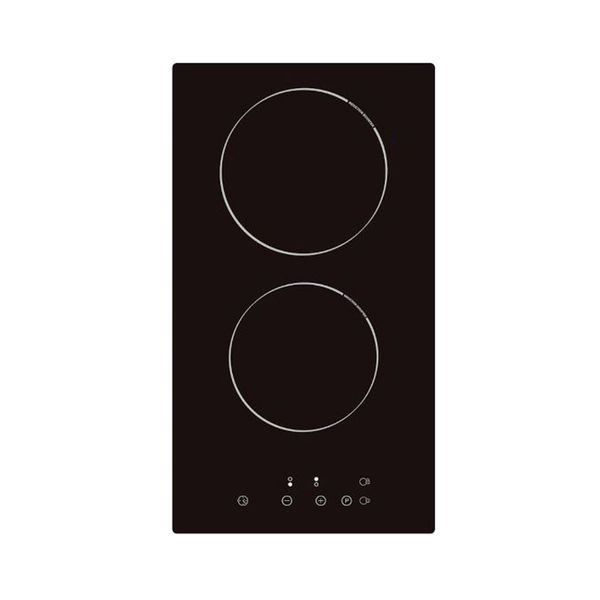

A 30cm hob unit featuring two cooking zones, nine power levels, residual heat indicator and timer.
This sleek hob unit benefits from touch control operation and is fitted with a 13A plug.
Key Features
Touch Control
Two cooking zones
9 Power levels
Child safety lock
Timer
Residual Heat Indicator
13amp Connection with plug fitted
Brand
Culina
Type
Ceramic Hob Units
Model
UBTC30FLC
Weight
4.2kg
Colour
Black
Cut Out
260mm x 490mm
Fuse
13A
Appliance Data Sheet UBTC30FLC
N626 spec sheet
