Various size flush mounted frames for NRX fridges Black flush-mount installation frame for NRX Fridges .Positions the door flush with fixing frame and cabinetry in a black finish to match door or install with door forward. Allowing for secure installation of DOMETIC NRX fridges in your caravan, campervan, motorhome, truck or boat.

Read more less

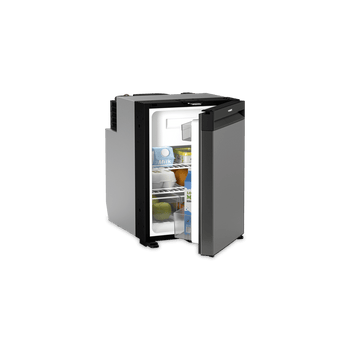

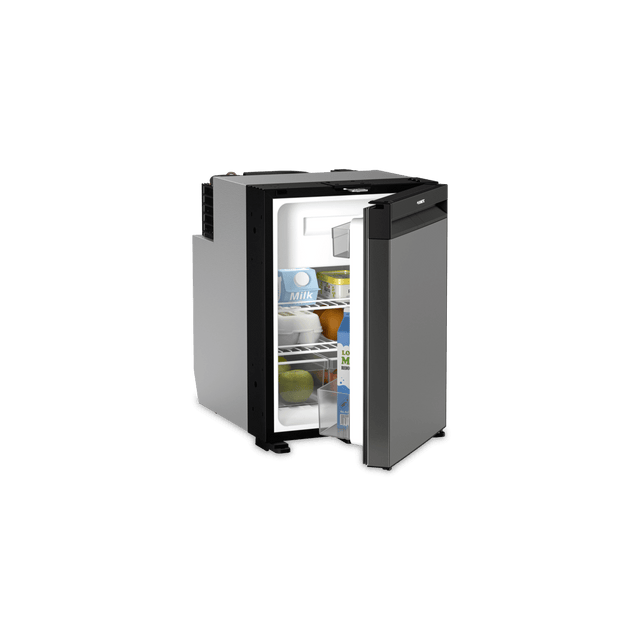

Fresh design, superior energy efficiency: this smart compressor refrigerator provides 44 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 4.4 l freezer compartment to use the full cabinet capacity for refrigeration or deep freezing. General Features 3-in-1 cooling solution: fridge, freezer, or both at the same time! Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with dark silver front panel and full-width handle Bevelled rear side for maximal utilization of space on board Reversible door hinge - can be fitted left or right as required Dual-function locks can also act as vents for your fridge Standard or flush-mount installation frame available as an accessory. Specifications Sku: 9620001481 Model: NRX0050C Model On Label: NRX0050 Scope Of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual Production Description: Compressor-cooled refrigerator, 44 l, dark silver front Refrigeration Technology:  Compressor   Dimensions Dimension Product Depth: 510mm Dimension Product Height: 525mm Dimension Product Width: 380mm Net Weight 17kg Total Volume (IEC 62552-3) I 44 Frozen Volume: EN62552 I: 4.4 Electrical Input Voltage: 12/24 Rated Input Power (DC) (W) 50 Performance Refrigerant Type: R134a Contains fluorinated greenhouse gases GWP: 1430 Refrigerant Amount: 26 CO2 Equivalent: 0.037 Energy Consumption:(DC@5/25c),(KWH / 24) 0.3 Climate Class: (EN2552) T Logistics EAN: 7315091485944 Dimension Parcel Depth: 586mm Dimension Parcel Height: 591mm Dimension Parcel Width: 505mm Parcel Weight: 21.50   Documentation & Downloads Dometic NRX0035-0130, NRX1035-1130 - Installation Manual INT Dometic NRX - Short Operating Manual EMEA18 Dometic NRX - Operating Manual EMEA18

Read more less

Fresh design, superior energy efficiency: this smart compressor-cooled refrigerator provides 44L of cool storage. Its elegant frameless door, incorporating a black front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 4.4 l freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing. General Features 3-in-1 cooling solution: fridge, freezer or both at the same time Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with black front panel and full-width handle Beveled rear side for maximal utilisation of space on board Reversible door hinge - can be fitted left or right as required Dual function locks can also act as vents for your fridge Standard or flush-mount installation frame available as accessory Dimensions (DxHxW) 510 x 525 x 380mm  Weight 17kg Suitable For Volkswagen T6 Replaces Dometic CRE 50 9600003193 Brand Dometic Type Integrated Fridges Voltage Description 12V - 24V DC Model NRX0050E Height Description 525mm Width 380mm Depth 510mm Weight 17kg Colour Black Freezer Capacity 4.4 Litres Fridge Capacity 46 Litres Wattage 40W Approvals TÜV/GS Consumption 1.1 A/hr +20°C ambient temp, 1.7 A/hr at +32°C ambient temp Application Motorhome, Caravan, Boat Series CoolMatic Amps Description 5A Capacity Description 46 Litres (12.1 US Gallons) Energy Supply Compressor 12-24V Country of Origin Germany Contents Refrigerator, Drain Elbow, Short Operating Manual, Installation Manual

Read more less

Fresh design, superior energy efficiency: this smart compressor-cooled refrigerator provides 32 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 4.4 l freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing. General Features 3-in-1 cooling solution: fridge, freezer, or both at the same time! Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with dark silver front panel and full-width handle Beveled rear side for maximal utilization of space on board Reversible door hinge - can be fitted left or right as required Dual-function locks can also act as vents for your fridge Standard or flush-mount installation frame available as an accessory. Specifications Sku: 9620001484 Model: NRX0035C Model On Label: N NRX0035 Scope Of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual Production Description: Compressor-cooled refrigerator, 32 l, dark silver front Refrigeration Technology:  Compressor Dimensions Dimension Product Depth: 480mm Dimension Product Height: 525mm Dimension Product Width: 380mm Net Weight 16kg Total Volume (IEC 62552-3) I 32 Frozen Volume: EN62552 I: 4.4 Electrical Input Voltage: 12/24 Rated Input Power (DC) (W) 50 Performance Refrigerant Type: R134a GWP: 1430 Refrigerant Amount: 24 CO2 Equivalent: 0.034 Energy Consumption:(DC@5/25c),(KWH / 24) 0.28 Climate Class: (EN2552) T Logistics EAN: 7315091485937 Dimension Parcel Depth: 586mm Dimension Parcel Height: 591mm Dimension Parcel Width: 505 Parcel Weight: 21 Documentation & Downloads Dometic NRX0035-0130, NRX1035-1130 - Installation Manual INT(zxx) Dometic NRX - Short Operating Manual EMEA18 Dometic NRX - Operating Manual EMEA18

Read more less

Dometic NRX 60C compressor-cooled fridge with 58 litre capacity and dark silver front. Featuring a fresh design and superior energy efficiency: this smart compressor refrigerator provides 58 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 6.1L freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing. A touch control panel is flush-mounted inside the cabinet, with nicely integrated LED light bar. Stay fresh in Winter Mode with a smart closing mechanism to create a gap between the fridge and the door for airing out in the off-season. The fridge interior is well-equipped; with a freezer, shelves, bottle holder, door tray and crispers - it's all there. The freezer compartment can be easily removed to make room for more fridge storage. Two crisper drawers for storing fruit and vegetables at the optimal temperature. A full-width door handle is neatly integrated for easy access from every angle. The NRX 60C is equipped with a premium compressor, boasting high energy-efficiency, lightweight and compact construction with 3 operating modes (Eco, Boost and Silent). • Capacity 58L (including 6.1L ice box) • Dimensions 525mm(H) x 448(W) x 537(D) Please note: Optional standard or flush mount frame kits available.   Replaces Dometic 9105306568 CRX65 Brand Dometic Voltage Description 12V - 24V DC Model NRX0060C Height Description 525mm Width 448mm Depth 537mm Weight 17kg Colour Grey Wattage 45W Approvals TÜV/GS Consumption 1.14 a/hr +20 °C ambient temp, 1.8 a/hr at +32 °C ambient temp Application Motorhome, Caravan, Boat Series CoolMatic Amps Description 5.5A Capacity Description 58 Litres (15.3 US Gallons) Energy Supply Compressor 12-24V Contents Refrigerator, Drain Elbow, Short Operating Manual, Installation Manual

Read more less

Fresh design, superior energy efficiency: this smart compressor refrigerator provides 75 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 6.1 l freezer compartment to use the full cabinet capacity for refrigeration or deep freezing. General Features 3-in-1 cooling solution: fridge, freezer, or both at the same time! Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with dark silver front panel and full-width handle Bevelled rear side for maximal utilization of space on board Reversible door hinge - can be fitted left or right as required Dual-function locks can also act as vents for your fridge Standard or flush-mount installation frame available as an accessory. Specifications SKU 9620001483 Model: NRX0080C Model On Label: NRX0080 Scope Of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual Production Description: Compressor-cooled refrigerator, 75 l, dark silver front Refrigeration Technology:  Compressor   Dimensions Dimension Product Depth:  537mm Dimension Product Height: 625mm Dimension Product Width:   475mm Net Weight 20kg Total Volume (IEC 62552-3) I 75 Frozen Volume: EN62552 I: 6.2 Electrical Input Voltage: 12/24 Rated Input Power (DC) (W) 55 Performance Refrigerant Type: R134a Contains fluorinated greenhouse gases. GWP: 1430 Refrigerant Amount: 32 CO2 Equivalent: 0.046 Energy Consumption:(DC@5/25c),(KWH / 24h) 0.33 Climate Class: (EN2552) T Logistics EAN: 7315091485982 Dimension Parcel Depth: 618 mm Dimension Parcel Height: 692 mm Dimension Parcel Width:  598 mm Parcel Weight: 24 Documentation & Download Dometic NRX0035-0130, NRX1035-1130 - Installation Manual INT Dometic NRX - Short Operating Manual EMEA18 Dometic NRX - Operating Manual EMEA18

Read more less

Dometic NRX 80C compressor-cooled fridge with 58 litre capacity and dark silver front. Featuring a fresh design and superior energy efficiency: this smart compressor refrigerator provides 78 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 6.1L freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing. A touch control panel is flush-mounted inside the cabinet, with nicely integrated LED light bar. Stay fresh in Winter Mode with a smart closing mechanism to create a gap between the fridge and the door for airing out in the off-season. The fridge interior is well-equipped; with a freezer, shelves, bottle holder, door tray and crispers - it's all there. The freezer compartment can be easily removed to make room for more fridge storage. Two crisper drawers for storing fruit and vegetables at the optimal temperature. A full-width door handle is neatly integrated for easy access from every angle. The NRX 80C is equipped with a premium compressor, boasting high energy-efficiency, lightweight and compact construction with 3 operating modes (Eco, Boost and Silent). • Capacity 78L (including 6.1L ice box) • Dimensions 625mm(H) x 475(W) x 537(D) Please note: Optional standard or flush mount frame kits available. Suitable For Fiat Ducato Replaces Dometic 9105306570 CRX80 Brand Dometic Type Integrated Fridge Freezers Voltage Description 12V - 24V DC Model NRX0080C Height Description 625mm Width 475mm Depth 537mm Weight 20kg Colour Grey Wattage 48W Approvals TÜV/GS Consumption 1.19 a/hr +20 °C ambient temp, 2.0 a/hr at +32 °C ambient temp Application Motorhome, Caravan, Boat Series CoolMatic Amps Description 5.6A Capacity Description 78 Litres Energy Supply 12v - 24v Contents Refrigerator, Drain Elbow, Short Operating Manual, Installation Manual Downloads dometic nrx installation instructions dometic nrx user manual

Read more less

Fresh design, superior energy efficiency: this smart compressor-cooled refrigerator provides 113 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 8.2 l freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing. General Features 3-in-1 cooling solution: fridge, freezer, or both at the same time! Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with dark silver front panel and full-width handle Beveled rear side for maximal utilization of space on board Reversible door hinge - can be fitted left or right as required Dual-function locks can also act as vents for your fridge Standard or flush-mount installation frame available as an accessory Specifications Sku: 9620001484 Model: NRX0035C Model In Label: NRX0035 Scope Of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual Product Description: Compressor-cooled refrigerator, 32 l, dark silver front Refrigeration Technology: Compressor Dimensions Product Depth:480 Product Height: 525 Product Width: 380 Net Weight:16 Total Volume: (IEC62552-3),(I) Frozen Vol: EN62552 (I) Electrical Input Voltage (DC),(V) Rated Input Power (DC) Performance Refrigerant Type: R134a GWP: 1430 Refrigerant Amount: 24 CO2 Equivalent: 0.034 Energy Consumption climate Class: (EN2552) T Documentation & Downloads Dometic NRX0035-0130, NRX1035-1130 - Installation Manual INT(zxx) Dometic NRX - Short Operating Manual EMEA18 Dometic NRX - Operating Manual EMEA18

Read more less

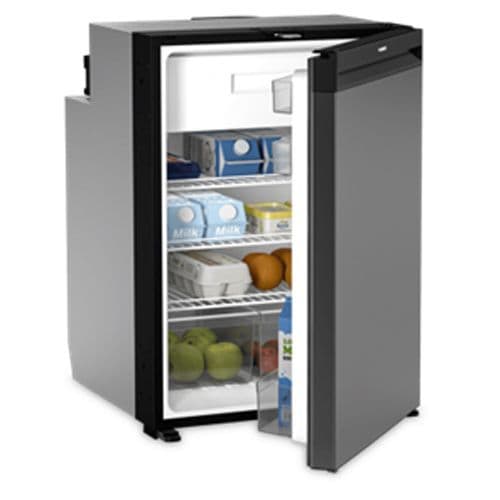

Fresh design, superior energy efficiency: this smart compressor-cooled refrigerator provides 113 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 8.2 l freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing. General Features 3-in-1 cooling solution: fridge, freezer or both at the same time! Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with dark silver front panel and full-width handle Beveled rear side for maximal utilization of space on board Reversible door hinge - can be fitted left or right as required Dual-function locks can also act as vents for your fridge Standard or flush-mount installation frame available as an accessory Specification SKU: 9620001485 Model: NRX0115C Model on Label: NRX0115 Scope of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual Product Description: Compressor-cooled refrigerator, 113 l, dark silver front Refrigeration Technolgy: Compressor Dimensions Dimension of product depth: 568 Dimension of product height: 745 Dimension of product width: 525 Net Weight: 26 Total Volume: 113 Frozen Total en662552: 8.2 Electrical Input Voltage: 12/24 Rated Input Power: 70   Performance Refrigerant Type: R14a Gwp:1430 Regerant Amount (g): 40 Co2 Equivalent (t) 0.057 Energy Consumption (DC@ 5/25 (kwh/24h) 0.48 Climnate Class (en62552)   Logistics Ean:7315091485975 Dimension of parcel depth: 648 Dimension of parcel height: 809 Dimension of parcel width: 638 Parcel weight:30   Documentation & Download Installation Manual Short Operating Manual Operating Manual

Read more less

Fresh design, superior energy efficiency: this smart compressor refrigerator provides an ample 126 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 8.2 l freezer compartment to use the full cabinet capacity for refrigeration or deep freezing. General Features 3-in-1 cooling solution: fridge, freezer, or both at the same time! Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent) Frameless door with dark silver front panel and full-width handle Beveled rear side for maximal utilization of space on board Reversible door hinge - can be fitted left or right as required Dual-function locks can also act as vents for your fridge Standard or flush-mount installation frame available as an accessory. Specifications Sku: 9620001482 Model: NRX0130C Model On Label: NRX0130 Scope Of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual Production Description: Compressor-cooled refrigerator, 126 l, dark silver front Refrigeration Technology:  Compressor   Dimensions Dimension Product Depth: 568mm Dimension Product Height: 812mm Dimension Product Width: 525mm Net Weight 27kg Total Volume (IEC 62552-3) I Frozen Volume: EN62552 I: 8.2 Electrical Input Voltage: 12/24 Rated Input Power (DC) (W) Performance Refrigerant Type: R134a GWP: 1430 Refrigerant Amount: 40 CO2 Equivalent: 0.057 Energy Consumption:(DC@5/25c),(KWH / 24) Climate Class: (EN2552) T Logistics EAN: 7315091485982 Dimension Parcel Depth: 648mm Dimension Parcel Height: 876mm Dimension Parcel Width: 638 Parcel Weight: 32   Documents & Download Dometic NRX0035-0130, NRX1035-1130 - Installation Manual INT(zxx) Dometic NRX - Short Operating Manual EMEA18 Dometic NRX - Operating Manual EMEA18
