With boat owners in mind this adaptive 5-step charger can provide 25A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features. Features of the - Phoenix Smart IP43 Charger 24V/25A 1+1 outputs 120-240V Bluetooth Smart enabled  Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.  Phoenix Smart (1+1): two outputs to charge 2 battery banks  The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.   Automatic voltage compensation  The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.  Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage  The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.  The right amount of charge: variable absorption time  When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.  Preventing damage due to excessive gassing: the BatterySafe mode   If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use:  The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.  Also charges Li-ion (LiFePO₄) batteries  Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.  Fully programmable charge algorithm  The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).  Remote on-off  The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See manual for details.  VE.Direct interface  For a wired data connection to a Colour Control panel, PC or other devices. Programmable relay  Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events. formore info please download this link>>Pdf

Read more less

With boat owners in mind this adaptive 5-step charger can provide 16A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features. Features of the - Phoenix Smart IP43 Charger 24V/16A 1+1 outputs 230V Bluetooth Smart enabled  Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.  Phoenix Smart (1+1): two outputs to charge 2 battery banks  The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.   Automatic voltage compensation  The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.  Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage  The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.  The right amount of charge: variable absorption time  When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.  Preventing damage due to excessive gassing: the BatterySafe mode   If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use:  The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.  Also charges Li-ion (LiFePO₄) batteries  Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth.  Fully programmable charge algorithm  The charge algorithm can be programmed with the help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).  Remote on-off  The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See the manual for details.  VE.Direct interface  For a wired data connection to a Colour Control panel, PC, or other devices. Programmable relay  It can be programmed using the VE.Direct interface or a Bluetooth-enabled device to trip on an alarm or other events. formore info please download this link>>Pdf

Read more less

The Victron Orion-TR is a non-isolated DC-DC converter intended for power conditioning. Its gives a constant output, isolating the loads from power fluctuations. High efficiency  Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection  When installed with the screw terminals oriented downwards.  Screw terminals  No special tools needed for installation. Features of the - Victron Orion-Tr 24/12V-20A Non-Isolated DC-DC Converter  This is an non-isolated DC-DC converter.  The nominal input voltage is 24 volts and the output voltage is 12.5 volts.  Input voltage range 18-35 Volts DC  Fixed output voltage 12.5 Volts DC  Rated Power 240 Watts Datasheet Dimensions 73 x 94 x 45  Also available in an isolated version with a remote switch and an adjustable output.

Read more less

Features of the - Victron Energy Orion 12/24-10A DC-DC IP20 - Non Isolated Models: 12 to 24 Volt  Input voltage range (V): 9-18   Output voltage (V): 20-30 Adjustable Continuous output current (A): 10 Dimensions hxwxd in mm: 45 x 90 x 125 Weight kg: 0.4 Remote on-off connector. The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).  All models with adjustable output can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.   For more info please download this link>> Pdf

Read more less

Features of the - Victron Energy Orion 12/24-8A DC-DC IP20 - Non Isolated Models: 12 to 24 Volt  Input voltage range (V): 9-18   Output voltage (V): 20-30 Adjustable Continuous output current (A): 8 Dimensions hxwxd in mm: 45 x 90 x 115 Weight kg: 0.4 Remote on-off connector. The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).  All models with adjustable output can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.   For more info please download this link>> Pdf

Read more less

Features of the - Victron Energy Orion-Tr 48/12V 30A (360W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  40-70V Under voltage shut down:  28V Under voltage restart:  30V Nominal output voltage:  12,2V Output voltage adjust range:  10-15V Cont. output current at nominal output voltage and 40°C:  30A Maximum output current (10 s) at nominal output voltage:  40A  Short circuit output current:  60A Cont. output power at 25°C:  430W  Efficiency:  87% Off load current:   < 80mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   130 x 186 x 70 mm  Weight:   1.6 kg

Read more less

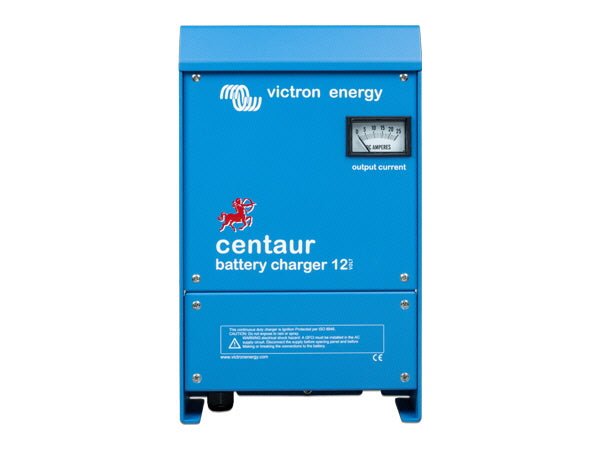

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A. Features of the - Victron Energy Centaur Battery Charger 12V/100A (3) Quality without compromise  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.  Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)  All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current  Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries. Recommended battery capacity (Ah): 400 - 1000 Dimensions: 505x255x130mm  Weight: 12kg  For more info please download this link>>Pdf

Read more less

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A. Features of the - Victron Energy Centaur Battery Charger 12V/80A (3) Quality without compromise  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.  Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)  All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current  Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries. Recommended battery capacity (Ah): 320 - 800 Dimensions: 505x255x130mm  Weight: 12kg  For more info please download this link>>Pdf

Read more less

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A. Features of the - Victron Energy Centaur Battery Charger 12V/60A (3) Quality without compromise  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.  Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)  All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current  Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries. Recommended battery capacity (Ah): 240 - 600 Dimensions: 426 x 239 x 135mm  Weight: 5kg  For more info please download this link>>Pdf

Read more less

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A. Features of the - Victron Energy Centaur Battery Charger 12V/50A (3) Quality without compromise  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.  Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)  All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current  Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries. Recommended battery capacity (Ah): 200 - 500 Dimensions: 426 x 239 x 135mm  Weight: 5kg  For more info please download this link>>Pdf

Read more less

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A. The range spans 12V and 24V models from 16A through to 100A. Features of the - Victron Energy Centaur Battery Charger 12V/30A (3) Quality without compromise  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.  Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)  All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current  Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.  Recommended battery capacity (Ah): 120 - 300 Dimensions: 355x215x110mm  Weight: 3.8kg For more info please download this link>>Pdf

Read more less

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.  Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.  The range spans 12V and 24V models from 16A through to 100A. Features of the - Victron Energy Centaur Battery Charger 12V/30A (3) Quality without compromise  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.  Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)  All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current  Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.  Recommended battery capacity (Ah): 120 - 300 Dimensions: 355x215x110mm  Weight: 3.8kg For more info please download this link>>Pdf

Read more less
