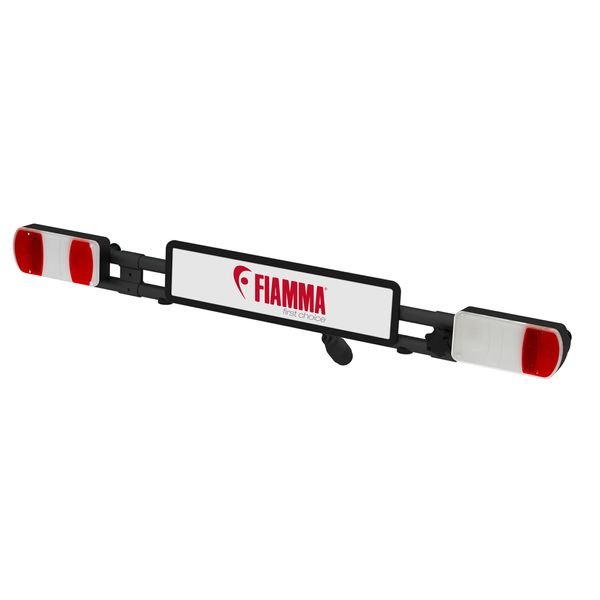

An easy-to-install licence plate carrier with regulation lights. This version is now compatible with the Carry Bike VW Crafter Frame.
Brand
Fiamma
Type
Lights
Length
131 cm
Weight
2.4 kg

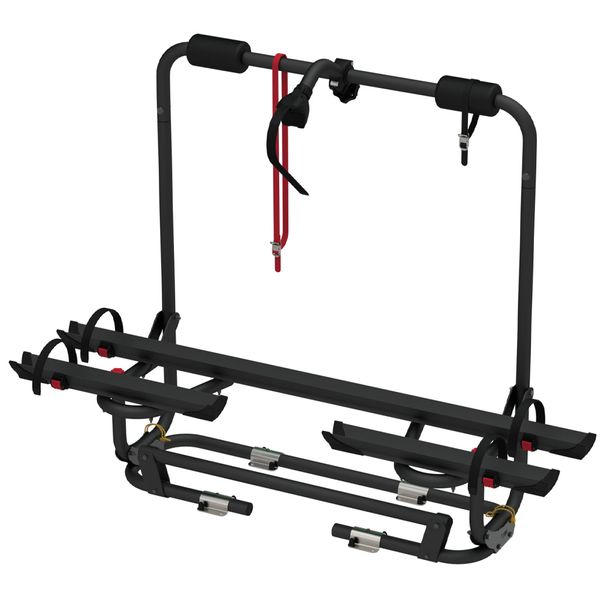

The Carry-Bike Caravan XL A Pro 200 in Deep Black fits all caravans with standard A frame, Hobby type with extended frame and new Alko frame. It carries 2 bikes and allows the user to tilt the bike rack forwards even with the bikes mounted, enabling access to the gas bottle locker.
Supplied with:
1 x Rail Quick Pro (Deep Black)
1 x two-part rail (Deep Black)
1 x fastening strip to secure the first bike
NOTE: No drilling required
Specs:
• Colour: Aluminium/Deep Black
• Vehicle: Caravan
• Bikes carries as standard: 2
• Bike carried max.: 2
• Max load: 50kg
• Position: A frame
• Dimensions*: 128 x 38 x 100cm
• Weight: 7.5kg
• Rail type: Rail Quick Pro
• Distance between rails: 20cm
• A-frame minimum size: 342cm
*The above dimensions are with rail support base in standard open position and in models with minimum adjustable vertical wheelbase.
Brand
Fiamma
Type
Caravan Bike Carriers
Weight
7.5kg
Colour
Black
Maximum Load Description
50kg
Application
Caravans
Capacity Description
2 Bikes

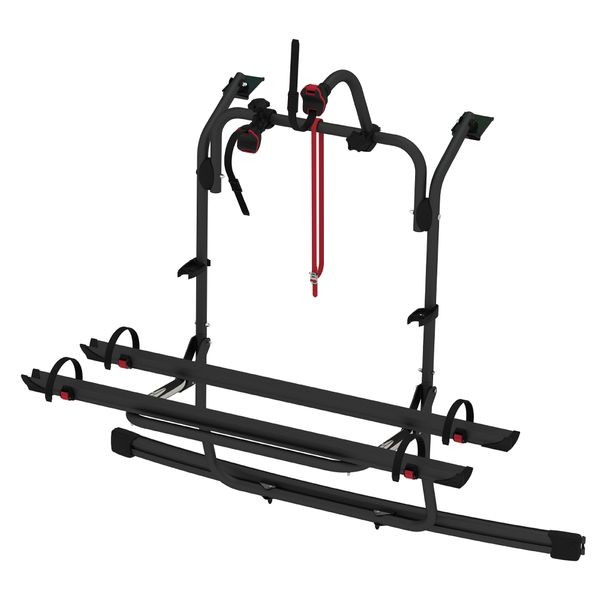

The Fiamma Carry-Bike PSA carries two bikes as supplied and can carry up to four bikes with the addition of Fiamma parts. This model has a Deep Black finish.
The upper brackets are fastened to the reinforced points on the campervans tailgate. The bottom anchoring adheres to the lower part of the tailgate thanks to its contoured profile that follows the shape of the vehicle.
This bike carrier is suitable for the following vehicles:
Citroen Jumpy III gen. / Spacetourer / Campster (≥2016)
Opel / Vauxhall Vivaro C (≥2019)
Opel / Vauxhall Zafira Life 2019 & Vauxhall Vivaro Life (≥2019)
Peugeot Expert III gen. / Traveller (≥2016)
Toyota Pro Ace II / Pro Ace Verso (≥2016)
Supplied with:
- Bike-Block Pro 1 (Bike locking system)
- Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (bike rails)
Specs:
- Colour: Deep Black
- Bikes carried standard: 2
- Bikes carried max.: 4
- Max load: 60kg
- E-Bike: Yes
- Position: Tailgate
- Vertical wheelbase: 114cm
- Horizontal wheelbase (distance between brackets): 68cm
- Dimensions: 145.8 x 62.5 x 114cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 11.3kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional. supplied separately

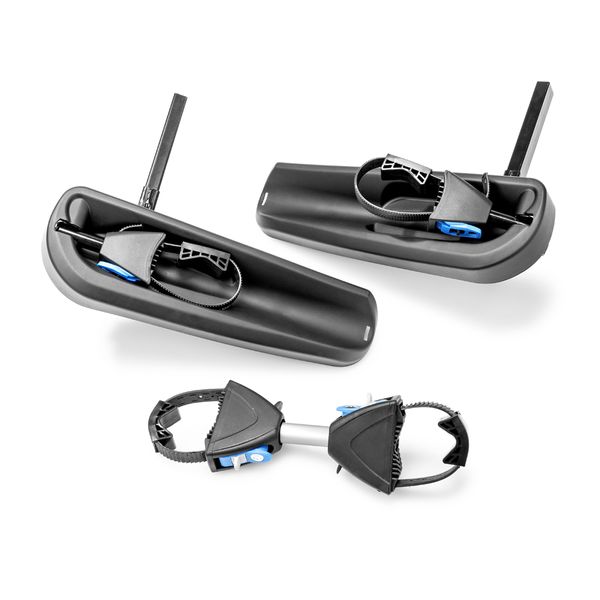

This extension kit allows for a third bike to be carried on the Oris Tracc Bike Carrier, product code ORIS-700-002, and on the Oris Tracc Bike Carrier Fix4Bike, product code ORIS-710-002. The extension is simply plugged into the bike carrier and screwed in.
Brand
Oris
Type
Towbar Bike Carriers
Height Description
75mm
Width
300mm
Depth
250mm
Weight
4kg
Downloads
ORIS Tracc EN

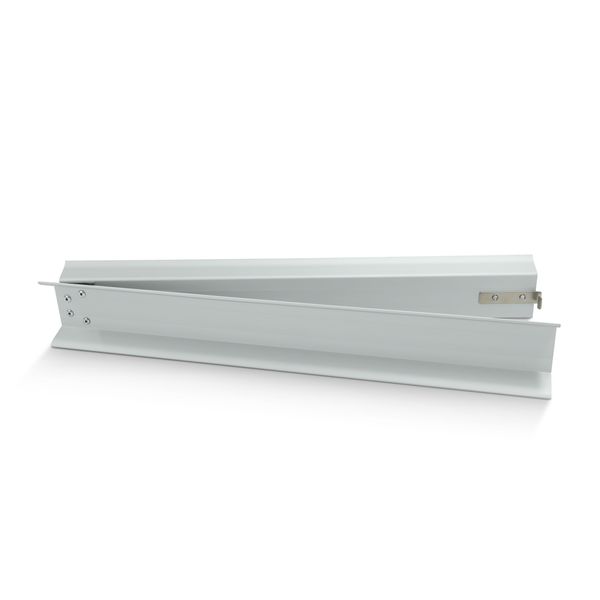

This foldable bike ramp takes away the need for heavy lifting when loading bikes onto an Oris Tracc bike carrier. The ramp conveniently folds away to a compact size for easy handling and storage.
Brand
Oris
Type
Towbar Bike Carriers
Height Description
50mm
Width
1250mm
Depth
75mm
Weight
2kg
Downloads
ORIS Tracc EN
A 500mm strap with ratchet function for securing wide frame 80mm plus bikes to both the Oris Tracc Bike Carrier, product code ORIS-700-002 and Oris Tracc Bike Carrier Fix4Bike, product code ORIS-710-002.
Brand
Oris
Type
Towbar Bike Carriers
Height Description
38mm
Width
105mm
Depth
35mm
Weight
0.3kg
Downloads
ORIS Tracc EN
This left-hinged Van-Swing swivel module is designed for van conversions and can be fitted to a new or existing towbar allowing the user to attach their own bike carrier.
The Van-Swing uses the existing fitting points on a towbar and carries bikes at knee height – making it ideal for heavy E-bikes as they will not have to be lifted high. This pivoting module gives the user the option to swing the bike carrier with the bikes loaded, allowing the vehicle’s rear doors to open.
Due to the use of existing fitting points, modifications to the vehicle are not necessary. This module is suitable for all Ducato models from 2006 onwards and is supplied with an integrated 13-pin socket to extend the existing socket.
To check existing towbar compatibility or for advice on purchasing a new towbar, please contact Team
Please note: The VAN-Swing is NOT supplied with a bike carrier but is suitable for use with most towball-mounted bike carriers.
Compatible van models:
Citroen: Jumper, Relay.
Fiat: Ducato.
Peugeot Boxer
Because the module is fitted to the towbar the bike carrier is at knee height. This is ideal, since you will not have to lift up high. Due to the use of existing fitting points there are no modifications to the vehicle necessary. The module is available for all Ducato, Boxer, Relay models from 2006 onwards,
Is you van or motorhome not on the list? Ask us or for the possibilities.
Brand
Memo Europe
Type
Mounting Kits
Depth
200mm (from bumper)
Weight
20kg
Material
KTL and Powder-coated Steel
Colour
Black
Maximum Load Description
60kg (including bike carrier)
Mounting Description
Towbar
Application
Van Conversions
Country of Origin
Netherlands
This right-hinged Van-Swing swivel module is designed for van conversions and can be fitted to a new or existing towbar allowing the user to attach their own bike carrier.
The Van-Swing uses the existing fitting points on a towbar and carries bikes at knee height – making it ideal for heavy E-bikes as they will not have to be lifted high. This pivoting module gives the user the option to swing the bike carrier with the bikes loaded, allowing the vehicle’s rear doors to open.
Due to the use of existing fitting points, modifications to the vehicle are not necessary. This module is suitable for all Ducato models from 2006 onwards and is supplied with an integrated 13-pin socket to extend the existing socket.
To check existing towbar compatibility or for advice on purchasing a new towbar,.
Please note: The VAN-Swing is NOT supplied with a bike carrier but is suitable for use with most towball-mounted bike carriers.
Compatible van models:
• Citroen: Jumper, Relay
• Fiat: Ducato
• Peugeot: Boxer
Brand
Memo Europe
Type
Mounting Kits
Depth
200mm (from bumper)
Weight
20kg
Material
KTL and Powder-coated Steel
Colour
Black
Maximum Load Description
60kg (including bike carrier)
Mounting Description
Towbar
Country of Origin
Netherlands
The Van-Star Adventure from Memo is a retractable bike carrier designed for mounting on the chassis of a L4 van conversion with a mounting bracket (included).
The compact and lightweight bike rack is suitable for carrying two e-bikes or classic bicycles which are placed at knee height on the carrier - avoiding the need to lift the bikes up high.
The carrier is made of black powder-coated steel and finished with aluminium parts. It can be easily removed without the need for tools and is foldable and lockable in both lowered and upright positions. The user can also choose to have the hinge on the left or right side of the van.
This Van-Star Adventure bicycle carrier is supplied with standard bicycle shoes (with straps), bicycle arms, a lighting bar with cabling and a 13-pin 'Jaeger' plug. Memo recommend that users secure the bicycles with a strap for safety (not included).
• Width: 1850mm
• Light strip width: 1400mm
• Rail width: 1300mm
• Depth folded: 270mm
• Depth expanded: 800mm
• Load capacity: 75kg
• The Van-Star Adventure protrudes approximately 80cm or 27cm when folded
Please note: The vehicle-specific wiring kit is not included and must be ordered separately, please contact our team if you require support. Mounting a Van-Star on a Fiat Ducato with a 16" spare wheel can cause problems with mounting due to the wider tire.
Suitable van conversion models:
• Adria: Twin Axess, Twin Supreme, Twin Plus
• Bavaria
• Burstner: City Car C, City Car Harmony
• Carado: Flow
• Challenger: Vany
• Chausson: Twist
• Font Vendome: Duo, Leader, Plaisance
• Globecar: Roadscout, Globescout, Campscout, Globestar
• Hobbies: Vantana
• Hymercar: Ayers Rock, Yosemite, Yellowstone, Grand Canyon
• Knaus: Boxstar, Boxlife, Boxdrive
• Malibu: Van, Van Charming
• McLouis: Menfys S, Menfys Prestige
• Pilot: Van
• Pössl: Roadcamp, Roadcruiser, Roadstar, 2Win, Summit
• Rapido: Van
• Sunlight: Cliff
• Volkswagen: California
• Weinsberg: CaraTour, CaraBus
• Westfalia: Columbus, Club Joker, Amundsen, Sven Hedin
Brand
Memo Europe
Type
Bike Carriers
Width
1850mm / Light strip:1400mm
Depth
Folded: 270mm / Expanded: 800mm
Weight
45kg
Material
Steel and Aluminium
Maximum Load Description
75kg (165.3lbs)
Mounting Description
Chassis
Application
Van Conversions
Capacity Description
2 Bikes
Country of Origin
Netherlands
Unsure of Motorhome type please fill out information form please click blue link below
This folding bike carrier from Memo can carry up to four electric bicycles with a maximum load capacity of 150kg.
The Zorro 4Bike carrier is designed to be firmly mounted on the chassis of a motorhome and when not in use, can easily be folded up without the need for tools. To secure the bikes, a bicycle arm and a set of cycling shoes are supplied as standard for each bicycle.
The bike rack has a strong steel base with a KTL and powder-coated finish to prevent rusting. The rails, light strip and bracket are made of aluminium so that the carrier itself remains very light.
• Chassis width maximum: 1420 mm
• Rail width: 1670mm
• Light strip width: 1950mm
• Depth folded: 300mm
• Depth unfolded: 850mm
• Load capacity: 150kg
Key Features
Easily foldable without tools
Load capacity up to 150kg
Fits any chassis extension or AL-KO chassis
Brand
Memo Europe
Type
Bike Carriers
Width
Chassis: 1420mm / Light strip: 1950mm / Rail: 1670mm
Depth
Folded: 300mm / Expanded: 850mm
Weight
40kg
Material
Steel and Aluminium
Maximum Load Description
150kg
Mounting Description
Chassis
Application
Motorhomes
Capacity Description
4 e-Bikes
Country of Origin
Netherlands
The Van-Star Adventure from Memo is a retractable bike carrier designed for mounting on the chassis of L1, L2 and L3 Ducato van conversions from 2006, using a mounting bracket (included).
The compact and lightweight bike rack is suitable for carrying two e-bikes or classic bicycles which are placed at knee height on the carrier - avoiding the need to lift the bikes up high.
The carrier is made of black powder-coated steel and finished with aluminium parts. It can be easily removed without the need for tools and is foldable and lockable in both lowered and upright positions. The user can also choose to have the hinge on the left or right side of the van.
This Van-Star Adventure bicycle carrier is supplied with standard bicycle shoes (with straps), bicycle arms, a lighting bar with cabling and a 13-pin 'Jaeger' plug. Memo recommend that users secure the bicycles with a strap for safety (not included).
• Width: 1850mm
• Light strip width: 1400mm
• Rail width: 1300mm
• Depth folded: 270mm
• Depth expanded: 800mm
• Load capacity: 75kg
• The Van-Star Adventure protrudes approximately 80cm or 27cm when folded
Please note: The vehicle-specific wiring kit is not included and must be ordered separately, please contact our team if you require support. Mounting a Van-Star on a Fiat Ducato with a 16" spare wheel can cause problems with mounting due to the wider tire.
Suitable van conversion models:
• Adria: Twin Axess, Twin Supreme, Twin Plus
• Bavaria
• Burstner: City Car C, City Car Harmony
• Carado: Flow
• Challenger: Vany
• Chausson: Twist
• Font Vendome: Duo, Leader, Plaisance
• Globecar: Roadscout, Globescout, Campscout, Globestar
• Hobbies: Vantana
• Hymercar: Ayers Rock, Yosemite, Yellowstone, Grand Canyon
• Knaus: Boxstar, Boxlife, Boxdrive
• Malibu: Van, Van Charming
• McLouis: Menfys S, Menfys Prestige
• Pilot: Van
• Pössl: Roadcamp, Roadcruiser, Roadstar, 2Win, Summit
• Rapido: Van
• Sunlight: Cliff
• Volkswagen: California
• Weinsberg: CaraTour, CaraBus
• Westfalia: Columbus, Club Joker, Amundsen, Sven Hedin
Brand
Memo Europe
Type
Bike Carriers
Width
1850mm / Light strip:1400mm
Depth
Folded: 270mm / Expanded: 800mm
Weight
45kg
Material
Steel and Aluminium
Maximum Load Description
75kg (165.3lbs)
Mounting Description
Chassis
Application
Van Conversions
Capacity Description
2 Bikes
Country of Origin
Netherlands
