Suitable for H2,H3,H4 Ducato, Jumper, Boxer vans from 2007-2025 onwards for quick and easy mounting without drilling
Universal roof awning in a contemporary design with mounting set included.
Van Size Chart - L2H2-L4
By setting the angle as you please, the awning can be opened and closed even when the sliding door of your van is open space has been created for Thule LED lighting, so the vehicle can have a light on the outside even when the awning is closed Self-adhesive EPDM sealing strip included to close the gap under the awning to avoid water ingress only available with fabric finish Mystic Grey Perfect finish and integration with the vehicle thanks to the adapter covers.
Ducato awning - L2-L4
Boxer awning - L2-L4
Relay awning - L2-L4
Movano awning - L2-L4
Pack includes Awning, Roof adapter brackets & EPDM Seal
Suitable for the following H2 vans - Fiat Ducato, Citroen Relay & Peugeot Boxer vans from 2007 onwards. Also for Vauxhall Movano 2022> & Toyota Proace Max >2024.
Quick and easy mounting without drilling
By setting the angle as you please, the awning can be opened and closed even when the sliding door of your van is open
Space has been created for Thule LED lighting, so the vehicle can have light on the outside even when the awning is closed
TECHNICAL SPECIFICATIONS
Compatibility
Vans
Mounting location
Roof
Awning operating system
Manual
Retrofit motor
additional
Integrated tension arms
yes
Awning cassette colour
Anthracite
Projection
2.50 m
Weight
3.25=25.1 kg, 3.75=28.5kg, 4.0=30.5kg
Please see additional info in the links below
Setup Instructions / Size Chart
Van Size Chart - L2H2-L4
To reinforce the longer lengths of awning tents in combination with a tension rafter. Can be installed on all awning types from 3.75m roll out on with exception of 4900 & Caravan Style. Cannot be used in combination with the Thule Quick Fit tent
Stable and solid attachment to the rear wall of a motorhome or caravan Load capacity up to 50kg lockable platforms: prevents your bikes from moving during transport, it locks manually the best position for your bikes using the easy-to-adjust rails that slide from left to right like holders with optional locksets all pre-installed fixation points and rails (except Hymer)Carrier can be extended up to 3 bikes. The set for 3rd bike is sold separately technical.
Product Specifications
Compatibility: Motorhomes /. Caravans
Mounting Locations: Rear Wall
Load Capacity For Bikes: 2-3
Max Bike Weight: 19Kg
Max Bike Capacity: 50kg
E-Bike Capability: N/A
Sliding Rail Depth: N/A
Lockable Platform: Read Manual
Total Width: 126cm
Height: Standard 80-150cm / Short Vers 40-70cm
Depth: Standard 65 cm, Short Vers 68cm
Weight: Standard 8.2 kg, Short Vers 7.9kg
Please click the link below to view fitting Instructions:
-Thule Sport G2 Standard version INSTRUCTIONS
-Thule Sport G2 Short Version INSTRUCTIONS
2 bikes, not extendable
Distance between rails of 20 cm for an easier load of the bikes
Lockable platform: prevents your bikes from moving during transport, it locks manually
Either mounted on the left or the right rear door. Doors can be opened with bikes on
Bike holders with optional locks
PLEASE CLICK THE LINK BELOW TO VIEW FITTING INSTRUCTIONS:
Thule Sport G2 Compact Bike Rack INSTRUCTIONS
Thule Sport G2 Compact Bike RackTechnical specifications
Compatibility
Vans
Mounting location
Rear door
Load capacity for bikes
2
Max bike weight
19 kg
Max weight capacity
35 kg
Lockable platform
Manual
Total width
126 cm
Height
80 - 150 cm
Depth
55cm
Weight
7.2kg
Fits with the latest Euro6 d-Temp engine (reduced build-in space)Smart and stable installation on a 2007> Ducato/Relay/Boxer van
Easy manual activation without tools in case of power failure Nice visual finish in line with the contemporary van design Conformity with EC Norm 74/485/EEG : no sharp edges at front side
Conform to the EMC standards. The formulated quality standards exceed European standard EN1646Better protection for dust infiltration integrated brushes / cable outlet / lip profileAnti-slip security with 3M Safety walk
Different widths available : 400mm : 550mm : 700mmA switch for the connection of an optional warning lamp in the vehicle is supplied as standard, making it impossible to drive away with the step still out.making it impossible to drive away with the step still out.Integration kit of optional LED strip
**IMAGE SHOWS STEP COMPLETE WITH KIT (SOLD SEPARATELY) **PLEASE ORDER PART 301877 IF INSTALL KIT REQUIRED
Accessories
308200 Relay Kit - Auto retract step on ignition turn on
308812 Control Box - Step automatically slides in & out when door is opened
301867 LED Kit for G2 Ducato & V19 Ducato slide out step

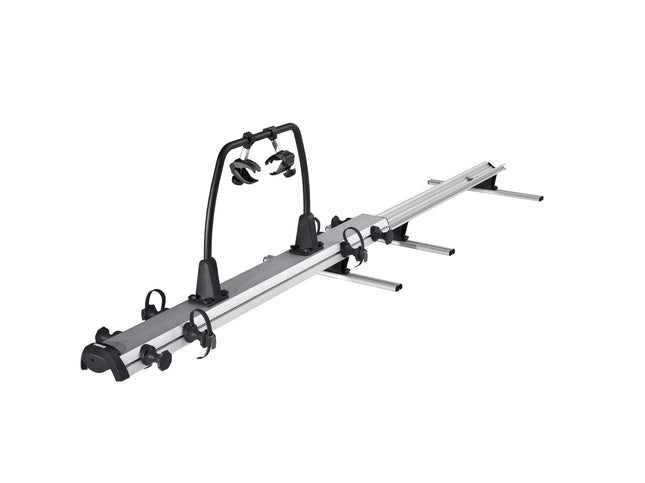

The most innovative and user-friendly bike rack for your RV garage space - load up to 2 e-bikes.
Fixed inside your garage compartment
Mounting rails are available in several lengths - sold separately
Convenient, comfortable handling of the bikes - all done while standing outside
Unique, patented one-handed control for sliding in and out
The bike rack slides out up to 1.5 meters
Slides partially into the garage for easy access to other cargo around the bike rack
Fits larger bikes by making optimal use of vertical space - make sure your RV garage is high enough for your bikes
Sturdy, secure bike holders and wheel fixations with pump buckle straps hold your bike in position
The bike's ideal position can be optimized without tools - even while the bike is already attached to the rack
Takes little space when not in use - the rack can be slid to the side or removed, leaving only the mounting rails on the floor.
Product Install PDF
Product Info PDF
Technical Specifications
Compatibility: Motorhomes
Mounting Location: Garage
Load Capacity for Bikes: 2
Max Bike Weight: 35 kg
Max Weight Capacity: 70 kg
Locable Platform: Automatic
Dimensions: Standard (WxHxD) 40 x 80 x 195 cm
Weight: 20.9 kg
Short Version: (WxHxD) 40 x 80 x 180 cm
Weight: 19.6 kg
Adaptable fitting kit to mount Thule 4200 - 5200 awning to Vamoose Combi Rail and a variety of other moulded awning rails including Reimo Multi-Rail and Brandrup Top-Rail.
Kit consists of 2 x black powder coated brackets with all required fixings and general instructions.
Combi Rail kit adjusts for awning height and angle so you can raise the bracket / awning to give better clearance above your sliding door, and adjust the angle of the bracket to match the angle of your awning rail.
This kit fits around the moulded awning rail and is secured to the van roof with Rivnuts. this requires drilling the van roof. Rivnuts are provided with the fitting kit.
Thule Omnistor 1200
Installation by simply sliding the awning into the existing caravan rail, no drilling is necessary
The largest projection for a bag awning up to 2.50m (except for the lengths 2.30m and 2.60m with a projection of 2.00m and 2.20m)
Exclusive fabric tensioning system with pump-buckle technology to ensure a perfect fabric tension
Fast and easy set-up of the awning thanks to the simultaneous swing-out of the support and tension legs
Integrated fitting for easy fixation of an awning tent
Top quality, durable, weatherproof, and color-fast PVC-coated fabric to protect against UV and rain
The awning is rolled open and closed manually
Available in different lengths and fabric colors
Technical Specifications
Compatibility: Caravans
Mounting Location: Caravan Rail
Awning Operating System: Manual
Awning Cassette Colour: White
For more info and instructions please see in the links below
Setup Instructions / Info & Size Chart
