Battery Monitors

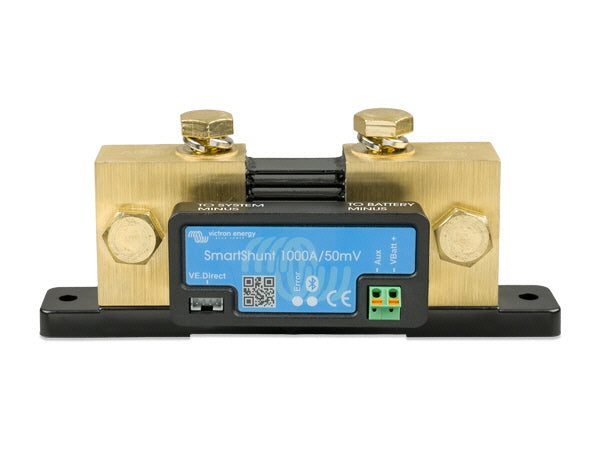

The Victron SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Description These battery monitors calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.  They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.  The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Features of the - Victron BMV-710H Smart Battery Monitor  Battery ‘fuel gauge’, time-to-go indicator, and much more  The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.  Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. Bluetooth Smart Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, MacBook's and other devices.  Easy to install  All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); no other components needed.  Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.  Easy to program (with your smartphone!)  A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings. Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)  Standard features  Battery voltage, current, power, ampere-hours consumed and state of charge  Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10,000 Amps  Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health  Wide input voltage range: 6.5 – 95V  High current measurement resolution: 10 mA (0.01A)  Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V BMV-702 additional features  Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.  Other battery monitoring options  Lynx Shunt VE.Can  More about midpoint voltage  One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information. We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected batteries.  Pdf

Read more less

The Victron SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Description These battery monitors calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.  They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.  The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Features of the - Victron BMV-710H Smart Battery Monitor  Battery ‘fuel gauge’, time-to-go indicator, and much more  The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.  Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. Bluetooth Smart Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, MacBook's and other devices.  Easy to install  All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); no other components needed.  Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.  Easy to program (with your smartphone!)  A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings. Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)  Standard features  Battery voltage, current, power, ampere-hours consumed and state of charge  Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10,000 Amps  Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health  Wide input voltage range: 6.5 – 95V  High current measurement resolution: 10 mA (0.01A)  Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V BMV-702 additional features  Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.  Other battery monitoring options  Lynx Shunt VE.Can  More about midpoint voltage  One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information. We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected batteries.  Pdf

Read more less

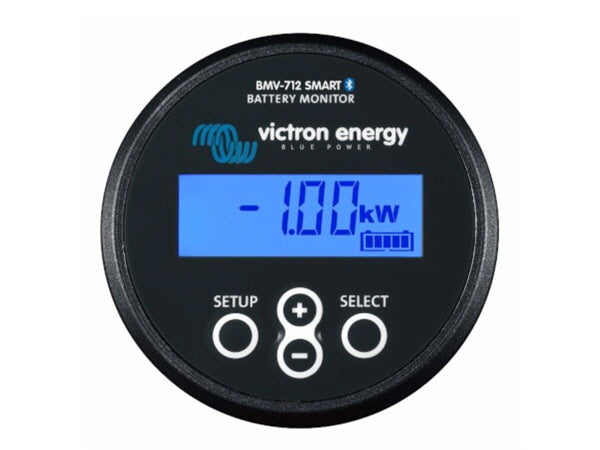

With Bluetooth built-in, the BMV Smart is Internet ready. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. Description   With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.  Bluetooth inside  With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.  Download the Victron Bluetooth app  Use a smartphone or other Bluetooth enabled device to  Customize settings Monitor all important data on single screen View historical data  Update the software when new features become available Easy to install   All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m); no other components needed.  Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.  Midpoint voltage monitoring  One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information. We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected lead-acid batteries.  Very low current draw from the battery  Current consumption: 0.7Ah per month (1mA) @12V and 0.6Ah per month (0.8mA) @ 24V Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown. After shutdown due to low cell voltage, the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery. A residual current of 10mA for example may damage a 200Ah battery if the system is left in discharged state during more than 8 days.  Bi-stable alarm relay  Prevents increased current draw in case of an alarm.  Other features  Battery voltage, current, power, ampere-hours consumed and state of charge  Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10,000 Amps  Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health Wide input voltage range: 6.5 – 70V  High current measurement resolution: 10 mA (0.01A) Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings Pdf

Read more less

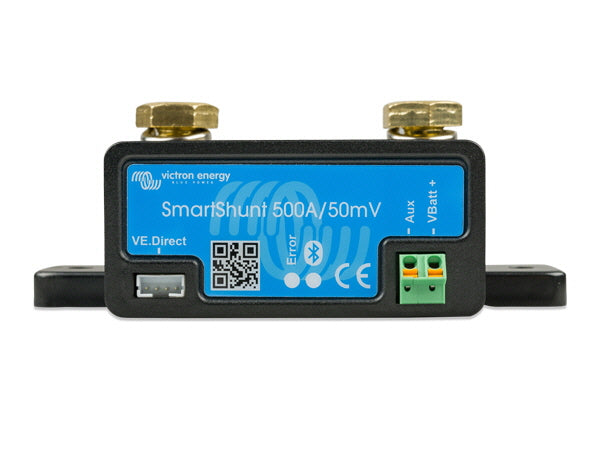

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Description   The SmartShunt is a battery monitor. It measures battery voltage and current. Based on these measurements it calculates state of charge, time to go and keeps track of historical data, such as deepest discharge, average discharge and number of cycles.  The SmartShunt connects via Bluetooth to the VictronConnect App.  The VictronConnect App is used to read out all monitored battery parameters and is also used to make or change settings.  Alternatively, the SmartShunt can connect to a GX device, like the ColorControl GX or the Cerbo GX.  The SmartShunt has an auxiliary input that can be used to monitor the voltage of a second battery or to monitor the midpoint of a battery bank.  The auxiliary input can also be used for battery temperature monitoring together with the optional Temperature sensor for BMV.  Pdf

Read more less

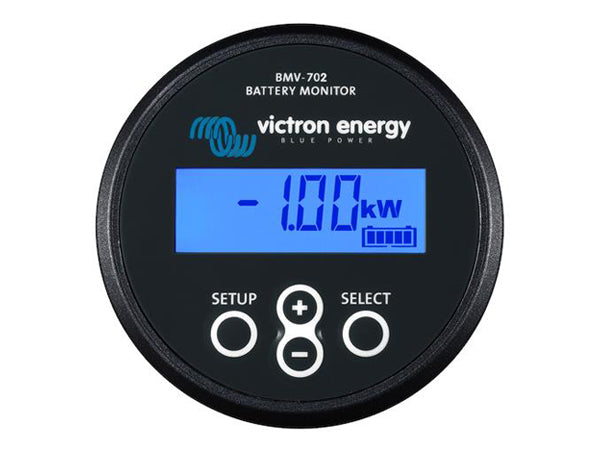

The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery. Description   The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-702 series also displays state of charge, time to go, and power consumption in Watts.  Features of the - Victron Energy BMV-702 Battery Monitor BLACK Battery voltage, current, power, ampere-hours consumed and state of charge Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10.000 Amps  VE.Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health  Wide input voltage range: 6,5 – 95V  High current measurement resolution: 10 mA (0,01A)  Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V BMV-702 additional features  - Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings. Bluetooth Smart - Use an optional Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.

Read more less

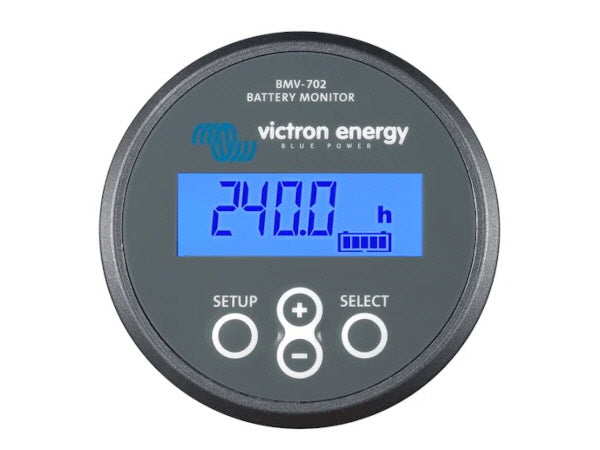

The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery. Description   The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-702 series also displays state of charge, time to go, and power consumption in Watts.  Features of the - Victron Energy BMV-702 Battery Monitor Battery voltage, current, power, ampere-hours consumed and state of charge Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10.000 Amps  VE.Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health  Wide input voltage range: 6,5 – 95V  High current measurement resolution: 10 mA (0,01A)  Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V BMV-702 additional features  - Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings. Bluetooth Smart - Use an optional Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices. Pdf

Read more less

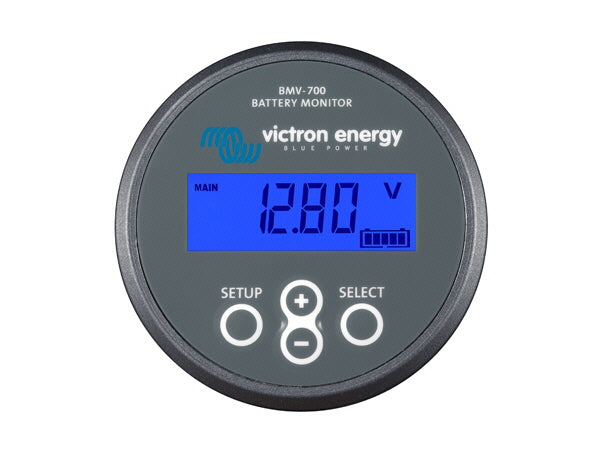

 The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery. Description The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.   Features of the - Victron Energy BMV-700 Battery Monitor Battery voltage, current, power, ampere-hours consumed and state of charge Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10.000 Amps  VE.Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health  Wide input voltage range: 6,5 – 95V  High current measurement resolution: 10 mA (0,01A)  Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V Bluetooth Smart - Use an optional Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices. Pdf

Read more less

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Description The SmartShunt is a battery monitor. It measures battery voltage and current. Based on these measurements it calculates state of charge, time to go and keeps track of historical data, such as deepest discharge, average discharge and number of cycles.  The SmartShunt connects via Bluetooth to the VictronConnect App.  The VictronConnect App is used to read out all monitored battery parameters and is also used to make or change settings.  Alternatively, the SmartShunt can connect to a GX device, like the ColorControl GX or the Cerbo GX.  The SmartShunt has an auxiliary input that can be used to monitor the voltage of a second battery or to monitor the midpoint of a battery bank.  The auxiliary input can also be used for battery temperature monitoring together with the optional Temperature sensor for BMV.  Pdf

Read more less

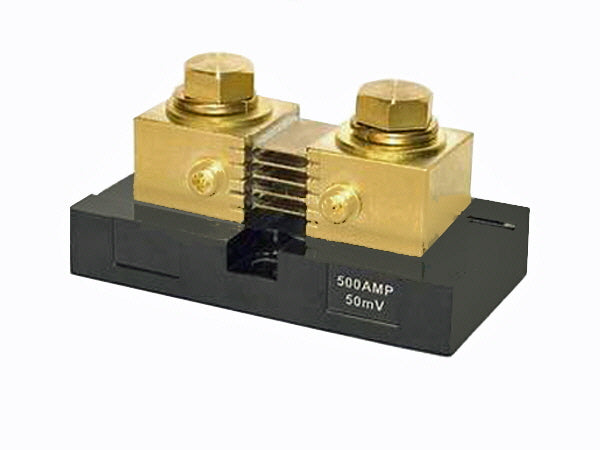

Shunt 500A/50mV
