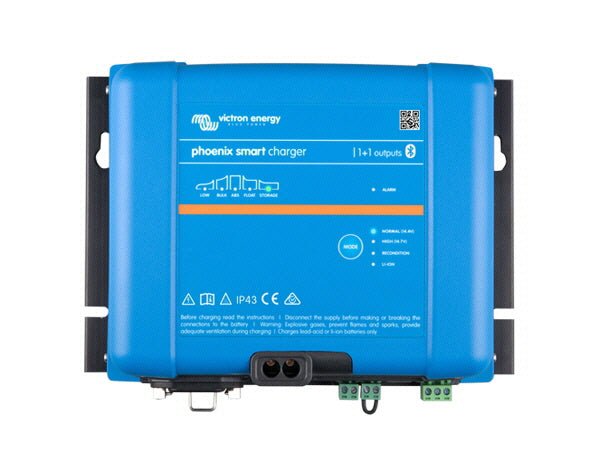

With boat owners in mind this adaptive 5-step charger can provide 25A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.
Features of the - Phoenix Smart IP43 Charger 24V/25A 1+1 outputs 120-240V
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use:
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).
Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See manual for details.
VE.Direct interface
For a wired data connection to a Colour Control panel, PC or other devices.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
formore info please download this link>>Pdf
With boat owners in mind this adaptive 5-step charger can provide 25A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.
Features of the - Phoenix Smart IP43 Charger 24V/25A 1+1 outputs
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use:
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).
Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See manual for details.
VE.Direct interface
For a wired data connection to a Colour Control panel, PC or other devices.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
formore info please download this link>>Pdf
The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A.
Features of the - Victron Energy Centaur Battery Charger 24V/60A (3)
Quality without compromise
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.

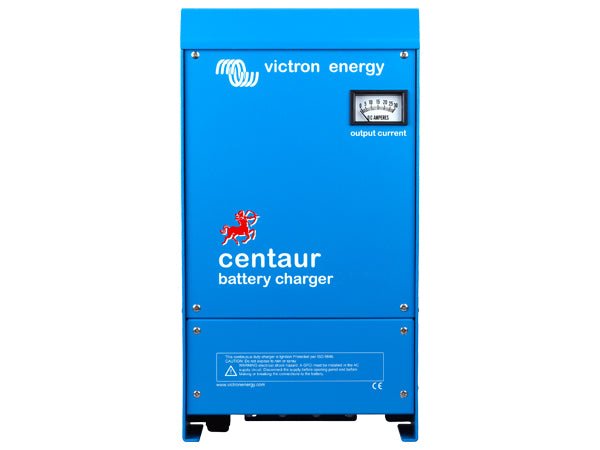

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. The range spans 12V and 24V models from 16A through to 100A.
Features of the - Victron Energy Centaur Battery Charger 24V/40A (3)
Quality without compromise
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Recommended battery capacity (Ah): 160 - 400
Dimensions: 505x255x130mm
Weight: 12kg
With boat owners in mind this adaptive 5-step charger can provide 16A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.
Features of the - Phoenix Smart IP43 Charger 24V/16A 1+1 outputs 120-240V
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use:
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).
Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See manual for details.
VE.Direct interface
For a wired data connection to a Colour Control panel, PC or other devices.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
With boat owners in mind this adaptive 5-step charger can provide 25A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.
Features of the - Phoenix Smart IP43 Charger 24V/25A 1+1 outputs 120-240V
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use:
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).
Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See manual for details.
VE.Direct interface
For a wired data connection to a Colour Control panel, PC or other devices.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
formore info please download this link>>Pdf

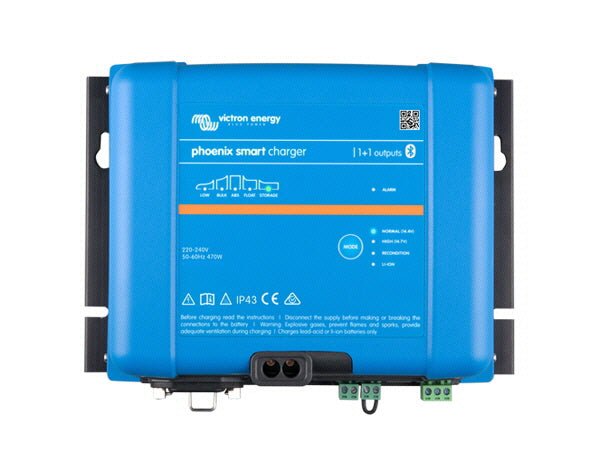

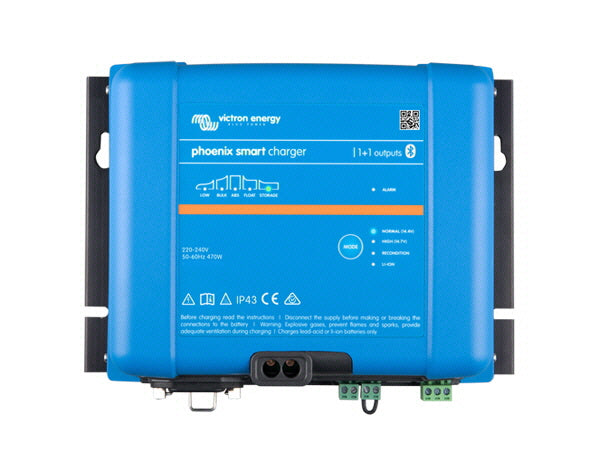

With boat owners in mind this adaptive 5-step charger can provide 16A of charge. The Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.
Features of the - Phoenix Smart IP43 Charger 24V/16A 1+1 outputs 230V
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use:
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector opto coupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with the help of Bluetooth or the VE.Direct interface. Three pre-programmed algorithms can be selected with the mode button (see specifications).
Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. See the manual for details.
VE.Direct interface
For a wired data connection to a Colour Control panel, PC, or other devices.
Programmable relay
It can be programmed using the VE.Direct interface or a Bluetooth-enabled device to trip on an alarm or other events.
formore info please download this link>>Pdf
The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.
Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
Features of the - Victron Energy Centaur Battery Charger 24V/30A (3)
Quality without compromise
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Recommended battery capacity (Ah): 120 - 300
Dimensions: 426x239x135mm
Weight: 5kg

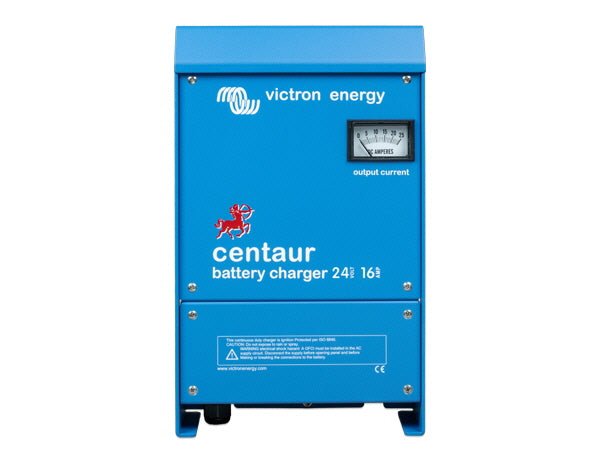

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.
Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
The range spans 12V and 24V models from 16A through to 100A.
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Recommended battery capacity (Ah): 45 - 150
Dimensions: 355x215x110mm
Weight: 3.8kg

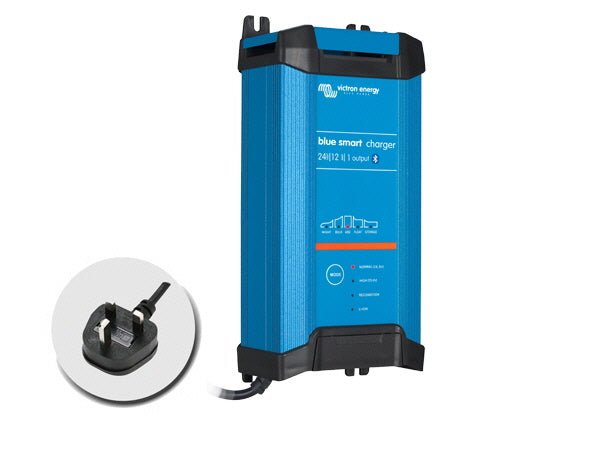

The 24V/16A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition.
This smart, multi-stage charger operates at up to 93% efficiency and generates up to 4x less heat than some other comparable chargers. When the battery is fully charged and has not been used for 24 hours, storage mode kicks in and power consumption drops to less than 0.5W. Cooling is achieved by a near-silent fan and the unit is fully protected against over-temperature, short circuit and reverse polarity.
Built-in Bluetooth allows you to monitor the status of your charger via any Android or Apple device or laptop and all settings of the charger can be configured with the VictronConnect app.
Suitable for all lead acid batteries (particularly leisure or 'deep-cycle' batteries) and Lithium-ion batteries used in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles
Recommended for batteries with a capacity in the range of 75 - 120Ah
Features of the - Blue Smart IP22 Charger 24V/16A - 1 Output - UK Plug
6-stage adaptive charging (Test - Bulk - Absorption - Recondition - Float - Storage)
High efficiency and low heat generation
Charges all lead-acid batteries (flooded, AGM, Gel) and Lithium-Ion batteries
NIGHT and LOW setting - reduces to 50% nominal output and no-fan for silent operation Near-silent fan
Over-temperature protection
Short-circuit protection for DC output
Reverse polarity protection for AC input (ATO blade fuse)
Green LED to indicate Power ON
Yellow LED for charge status indication (Bulk-fast blinking / Absorption-slow blinking / Float-solid / Storage-off)
Screw terminals for connection
Can be used as a power supply when no battery is connected
Charger reduces output current at high temp rather than shut-down
Setup, configuration and monitoring by Bluetooth connection
5 year manufacturer's warranty
Specification
Input voltage rating: 180 - 265V AC
Output voltage (Absorption/Float/Storage): 28.4-29.4/27.0-27.6/26.4-27.0 VDC
Max. charge current: 16A
NIGHT or LOW charge current: 8A
No. charging stages: 6 (adaptive)
No. outputs: 1
Minimum battery capacity: 75Ah
'No load' power consumption: 0.5W
Operating temperature: -20ºC to +50ºC (full rated output up to +30ºC, then output reduces)
Cooling method: Fan-assisted
Mains connection: BS1363 UK 3-pin plug on 1.5m cable
Battery connection: Screw clamp terminals for max. 13mm2 cable (note: output cables and connections not included)
Ingress Protection rating: IP22
Body material: Aluminium (blue RAL5012)
Mounting holes: (download Enclosure dimensions below for full details)
Weight: 1.3kg
Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
For more info please download this link>>Pdf
The 24V/16A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition.
This smart, multi-stage charger operates at up to 93% efficiency and generates up to 4x less heat than some other comparable chargers. When the battery is fully charged and has not been used for 24 hours, storage mode kicks in and power consumption drops to less than 0.5W. Cooling is achieved by a near-silent fan and the unit is fully protected against over-temperature, short circuit and reverse polarity.
Built-in Bluetooth allows you to monitor the status of your charger via any Android or Apple device or laptop and all settings of the charger can be configured with the VictronConnect app.
Suitable for all lead acid batteries (particularly leisure or 'deep-cycle' batteries) and Lithium-ion batteries used in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles
Recommended for batteries with a capacity in the range of 75 - 120Ah
Features of the - Blue Smart IP22 Charger 24V/16A - 1 Output - UK Plug
6-stage adaptive charging (Test - Bulk - Absorption - Recondition - Float - Storage)
High efficiency and low heat generation
Charges all lead-acid batteries (flooded, AGM, Gel) and Lithium-Ion batteries
NIGHT and LOW setting - reduces to 50% nominal output and no-fan for silent operation Near-silent fan
Over-temperature protection
Short-circuit protection for DC output
Reverse polarity protection for AC input (ATO blade fuse)
Green LED to indicate Power ON
Yellow LED for charge status indication (Bulk-fast blinking / Absorption-slow blinking / Float-solid / Storage-off)
Screw terminals for connection
Can be used as a power supply when no battery is connected
Charger reduces output current at high temp rather than shut-down
Setup, configuration and monitoring by Bluetooth connection
5 year manufacturer's warranty
Specification
Input voltage rating: 180 - 265V AC
Output voltage (Absorption/Float/Storage): 28.4-29.4/27.0-27.6/26.4-27.0 VDC
Max. charge current: 16A
NIGHT or LOW charge current: 8A
No. charging stages: 6 (adaptive)
No. outputs: 1
Minimum battery capacity: 75Ah
'No load' power consumption: 0.5W
Operating temperature: -20ºC to +50ºC (full rated output up to +30ºC, then output reduces)
Cooling method: Fan-assisted
Mains connection: BS1363 UK 3-pin plug on 1.5m cable
Battery connection: Screw clamp terminals for max. 13mm2 cable (note: output cables and connections not included)
Ingress Protection rating: IP22
Body material: Aluminium (blue RAL5012)
Mounting holes: (download Enclosure dimensions below for full details)
Weight: 1.3kg
Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
For more info please download this link>>Pdf
The 24V/12A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor-controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimizes the charging process to suit the usage pattern, so maintaining your battery in the best possible condition.
The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Features of the - Blue Smart IP22 Charger 24V/12A - 1 Output - UK Plug
Bluetooth Smart
The wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High efficiency
With up to 94 % efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.
Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage
The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used. Fully programmable charge algorithm Absorption, Float and Storage voltages as well as the Recondition setting and the temperature compensation value can be programmed with the Bluetooth app. After enabling the Expert mode, the app allows changing practically all parameters and time limits used by the charge algorithm.
Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, which are major causes of early battery failure.
Also charges Li-ion batteries
Li-ion batteries are charged with a simple bulk – absorption – float algorithm.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50 % of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as temperature increases up to 50 °C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4 V) / HIGH (14,7 V) / RECONDITION / LI-ION.
Forty cycle history log
The history screen contains historical usage data over the charger’s lifetime and detailed statistics for the last 40 charge cycles.
VE.Smart Networking
The VE.Smart Network is a wireless device to device (D2D) communication network between Victron products, using Bluetooth Smart.
Optional battery voltage and temperature compensation, and current sensing
The VE.Smart Network opens the possibility to optimize the charge process: a Smart Battery Sense, Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature to one or more battery chargers. A Smart Battery Monitor or SmartShunt will also communicate battery current.
Synchronized parallel charging
Synchronize up to ten battery chargers in a VE.Smart network to make them charge a battery as if they were one large charger. The chargers will synchronize the charge algorithm between them. They will simultaneously switch from one charge state to another, for example from bulk to absorption. Synchronized parallel charging has several interesting advantages: - Redundancy: if one charger stops for whatever reason, the other chargers will continue to operate. - Flexibility: simply add a charger to the network if more current is needed. - Cost: several low power chargers will in general cost less than one high power charger. - Installation: several low power chargers may be easier to fit in a confined space.
For more info please download this link>>Pdf
