Ideal for caravans, small campers, catering trailers and boats. These compact boilers are ready to go, whether in summer or winter, for washing, rinsing, brushing your teeth or a small shower. Supplied with mounting brackets. Please Note: Only suitable for use with submersible pumps without a double check / non-return valves. This particular model has a 6 litre capacity and is designed to be floor or wall mounted, it has both a 12V, 200W and a 230V, 660W element inside. • 6ltr Capacity • Weight: 2.0kg • Heats from 30°C to 85°C • 410mm (L) x 230(W) x 240(H) Brand Elgena Type 12 & 230 Volt Voltage Description 12V & 230V Height Description 240mm (9.4") Width 230mm Length 410mm Weight 2.0kg Wattage 200W (12v) & 660W (230v) Capacity Description 6 Litres

Read more less

Mixer valve for use with Elgena water heaters. Brand Elgena Type Ancillary Fitting

Read more less

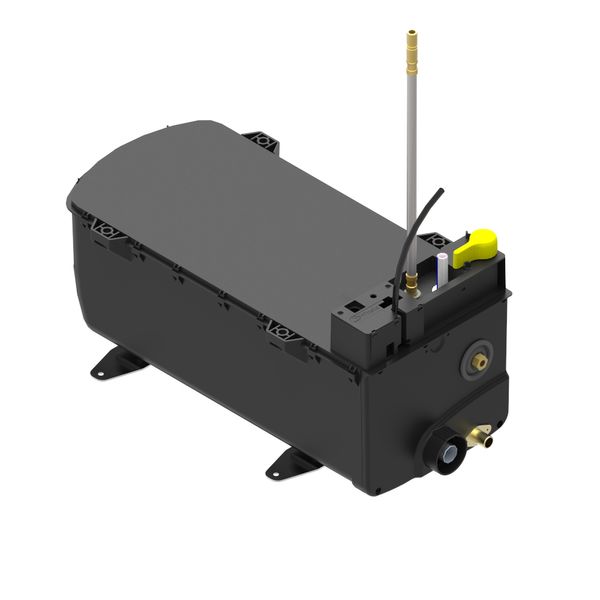

Underfloor Gas and Electric Water Heater (Install with Whale iVan® Control Panel). Kit includes: • 8-Litre Water Heater • Control Panel • 1 x 3.5M Cable • 1 x 1.25M Flue • 3 x Flue Brackets • 1 x End Flue Bracket Specs: • Capacity: 8 Litre • Pressure Relief Valve Setting: 3.0 Bar • Maximum Water Inlet Pressure: 1.9 Bar • Gas Type: Butane/Propane 30mbar CAT I3B/P (30) • Heat Input (Gross): 285kW • Gas Connection: 8mm compression fitting • Current Consumption (12V. d.c): 0.48 Amps//(0.03 Amps on Standby) • Electricity Supply: 12V d.c. + 230V a.c. 50Hz • Electric Lowest Eco Setting: 750W • Electric Highest Setting: 1500W • Maximum Current Consumption (12V. d.c.): 0.48 Amps//(0.03 Amps on Standby) • Maximum Current Consumption (230V): 6.5 Amps • Maximum dimensions inside vehicle: Height: 180mm (underfloor), Width: 262mm, Length: 522mm. PLEASE NOTE: All Whale Water Heaters must be installed and serviced by a fully qualified gas engineer in accordance with the appropriate installation instructions Key Features Easy to access - Integrated Pressure Relief Drain Valve Winter protection - User-activated frost protection mode External gas connections - No cut outs required Underside flue connector 8 litre capacity water tank Easy mounting option - Integrated secure mounting bosses Robust design Lightweight - Only 5.4kg Superior insulation - Custom expanded polystyrene means water stays hotter for longer Brand Whale Type 12 & 230 Volt Voltage Description 12V & 230V Height Description 229mm Width 262mm Length 522mm Fuel Butane/Propane 30mbar + 230Volt Capacity Description 8 Litres (2.1 US Gallons) Downloads Expanse Onboard Water Heater Data Sheet

Read more less

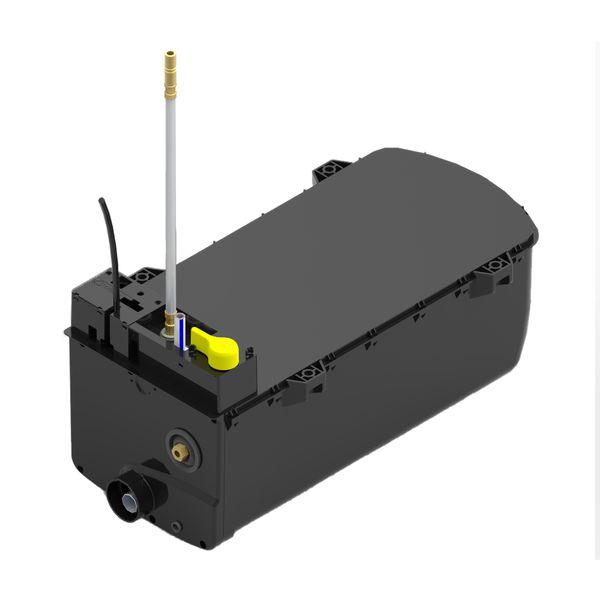

Onboard Gas and Electric Water Heater with Whale® Water Heater Control Panel. Kit includes: • 8-Litre Water Heater with Fixing Feet • Control Panel • 1 x 3.5M Cable • 1 x 1.25M Flue • 3 x Flue Brackets • 1 x End Flue Bracket Specs: • Capacity: 8 Litre • Pressure Relief Valve Setting: 3.0 Bar • Maximum Water Inlet Pressure: 1.9 Bar • Gas Type: Butane/Propane 30mbar CAT I3B/P (30) • Heat Input (Gross): 285kW • Gas Connection: 8mm compression fitting • Current Consumption (12V. d.c): 0.48 Amps//(0.03 Amps on Standby) • Electricity Supply: 12V d.c. + 230V a.c. 50Hz • Electric Lowest Eco Setting: 750W • Electric Highest Setting: 1500W • Maximum Current Consumption (12V. d.c.): 0.48 Amps//(0.03 Amps on Standby) • Maximum Current Consumption (230V): 6.5 Amps NOTE: All Whale Water Heaters must be installed and serviced by a fully qualified gas engineer in accordance with the appropriate installation instructions Key Features Easy to access - Integrated Pressure Relief Drain Valve Winter protection - User-activated frost protection mode External gas connections - No cut outs required Underside flue connector 8 litre capacity water tank Easy mounting option - Integrated secure mounting bosses Robust design Lightweight - Only 5.4kg Superior insulation - Custom expanded polystyrene means water stays hotter for longer Brand Whale Type 12 & 230 Volt Voltage Description 12V & 230V Height Description 229mm Width 262mm Length 522mm Fuel Butane/Propane 30mbar + 230Volt Capacity Description 8 Litres (2.1 US Gallons) Downloads Expanse Onboard Water Heater Data Sheet

Read more less
