Titan 2 is practically identical to the Titan 1 containing all the safety, reliability and feature filled design but with the added benefit of having the option of using a second camera.
Internal, external, side/reverse, driver facing IR/Non-IR, heavy duty – almost any variety of 3rd party hardware can be utilised alongside the main Titan 2 unit to make an adaptable commercial system
MORE INFO
1920x1080 Forward facing camera
30 Frames Per Second
165 Degree camera angle
Tamper-proof
3 Recording modes - Driving, Parking & Event
Built in 11-bit Axis sensor (X,Y,Z)
Supports Micro SD card up to 128Gb (sold separately)
30 Hours recording time (Maximum)
High sensitivity microphone with PCM compression
12-24v
Built in battery protector
Format free
Built in ignition timer relay
Recording times for Titan II with second camera
16GB
32GB
64GB
128GB
High
1h 50m
3h 40m
7h 30m
15h
Med
2h 45m
5h 30m
11h 15m
22h 30m
Low
3h 40m
7h 20m
15h
30h
PLEASE NOTE: We recommend using ONLY Industrial grade Class 10, MLC SD/Micro SD cards

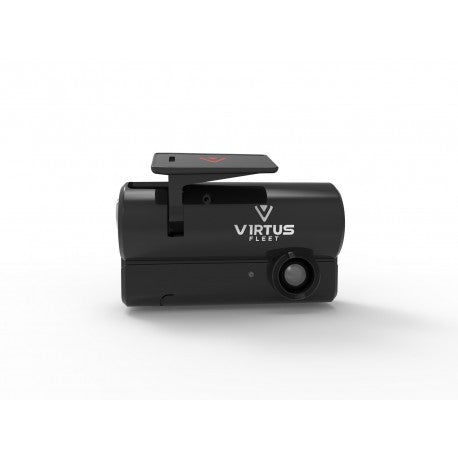

Tamper proof hardware, encrypted, password protected software, full HD 165° angle recordings at 30 fps, purpose designed Format Free Technology, Independent G-sensor controls, battery protection, compatible with 12v & 24v vehicles make Titan 1 a versatile and reliable addition to any fleet manager’s arsenal
MORE INFO
1920x1080 Forward facing camera
30 Frames Per Second
165 Degree camera angle
Tamper-proof
3 Recording modes - Driving, Parking & Event
Built in 11-bit Axis sensor (X,Y,Z)
Supports Micro SD card up to 128Gb (sold separately)
40 Hours recording time (Maximum)
High sensitivity microphone with PCM compression
12-24v
Built in battery protector
Format free
Built in ignition timer relay
Recording times for Titan I
16GB
32GB
64GB
128GB
High
3h
6h
12h
24h
Med
4h 30m
9h
18h
36h
Low
6h
12h
24h
48h
PLEASE NOTE: We recommend using ONLY Industrial grade Class 10, MLC SD/Micro SD cards
Day
Night

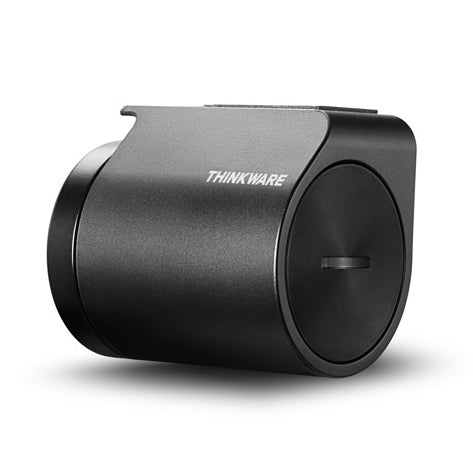

RADAR enables extended parking mode for the U1000. Low power consumption makes the U1000 the top choice for parking mode protection. By adding the optional RADAR sensor, parking mode can be extended even further while still capturing pre-event footage during energy saving parking mode which is otherwise only found when using motion detection parking mode.
Thinkware RADAR can be used on Energy Saving Parking Mode 2.0 (ESP 2.0) which is supported on the U1000 Dash Cam. Energy Saving Parking 1.0 allows Thinkware Dash Cams to record more time, but Energy Saving Parking 1.0 only records after an impact is detected, so there is no footage before the incident.
When RADAR detects motion, it will wake the Dash Cam for a short time. If there is an impact during this time, RADAR allows the Dash Cam to record 20 seconds of footage, including before an impact is detected but whilst still in Energy Saving Parking Mode.

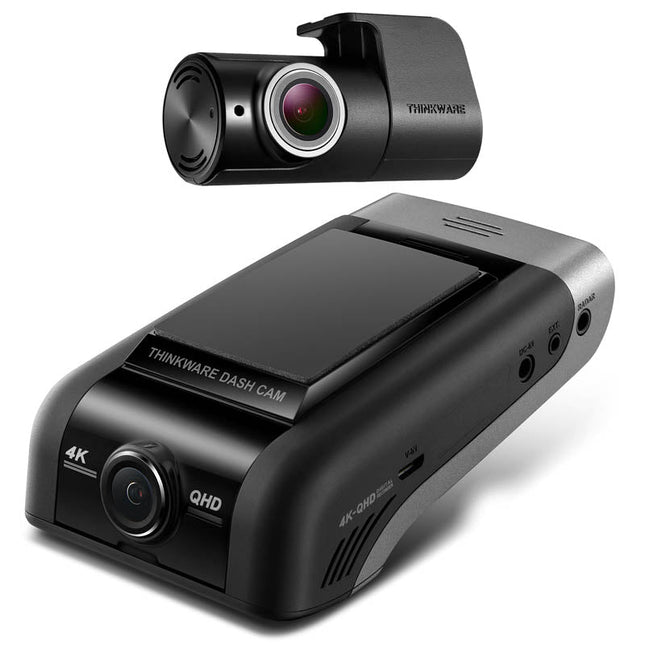

The U1000 4K UHD Front Camera is 2x more powerful than a Full HD Dash Cam
4K UHD Front Camera
150° Wide Angle View
G-Sensor Incident Detection
Speed Camera Alert
Cloud Service
Built-in Wi-Fi
Optional HD Rear Camera
Hardwire Only
Super Night Vision 2.0
Time Lapse Mode
Format Free
Win/Mac Viewer
Mobile App
CPL Filter Included
This new model from Thinkware comes with a low profile and modern design.The U1000 features a 4K UHD front-facing camera and an optional 2K QHD rear-facing camera.
Comes with a FREE CPL Polarising Filter
CHOOSE HOW YOU RECORDYou decide how your U1000 dash cam records its footage. Choosing from either a higher quality, or a higher framerate.
Option 14K Front Camera 30fps
Option 22K Front Camera 60fps
4K Ultra HD (3840x2160p)
2x more vivid than Full HD (1080p) resolution, 2160p 4K captures every little detail you may have missed before
Cloud App Features
The THINKWARE CLOUD App provides easy access to your Thinkware Dash Cam. Share the best driving videos to social media by simply downloading your dash cam footage into your smartphone’s photo album. Replay your latest driving videos and manage your dash cam’s settings all in one app!
Safety Camera Alert
The THINKWARE DASH CAM U1000’s internal GPS provides accurate location information while the Safety Camera Alert function is on continuous alert to warn the driver of red lights and traffic enforcement cameras.
The RADAR Accessory Enables Extended Parking Mode for the U1000
By adding the optional RADAR sensor, parking mode can be extended even further while still capturing pre-event footage.
The U1000’s Image Sensors allow constant front 4K UHD resolution recording during both daytime and night time along with a 150-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.
Super Night Vision 2.0
videos recorded in a low-light environment, such as dark alleys or parking lots, may not be clearly identifiable.SUPER NIGHT VISION 2.0 in the U1000 uses Image Signal Processing (ISP) technology to record a clear, visible video in any situation- while driving
When you are driving under bright sunlight, coming out of a tunnel, or getting under the shadow of a tall building etc, a sudden change in frontal light exposure levels can result in excessively bright or dark recordings.The WDR function eliminates excessively bright spots on the recording to correct its colour balance in order to ensure a clear image.
Automatic Exposure
A sudden rise of light exposure caused by strong sunlight or headlight beams of the oncoming vehicle may cause difficulties to assess the situation. Also, the lack of lighting in a dark tunnel or night driving may pose the same problem.The automatic light exposure function controls the level of light exposure to maintain vivid and clear video recordings in all circumstances.
Various Autonomous Recording Modes
Continuous Recording Mode
This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
Incident Recording Mode
The Active Impact Monitoring System will automatically store the video data ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
Manual Recording Mode
Similar to a video camera, you can use the Manual Recording Mode to capture events that occur in front of your vehicle whether or not it is in motion.
Energy Saving Mode
The dash cam will go to sleep and soon after an impact has been detection by built-in G-senor, U1000 will wake up within a second and start recording for next 20 seconds of the period.
DIMENSION
TBC
WEIGHT
TBC
CAMERA
8.42 Megapixel, Sony Exmor R STARVIS
RESOLUTION
Front 4K Ultra HD (3840x2160p)
CAPACITY
Micro SD Card 16GB / 32GB / 64GB / 128GB
RECORDING MODES
Continuous Recording, Incident Recording, Manual Recording, Audio Recording
SENSOR
3-Axis Accelerometer G-Sensor (3D, ±3G)
GPS
Built-in GPS
WI-FI
Built-in Wi-Fi
POWER
Input Power: DC 12/24V
ETC
Security LED / Operation Status LED/ GPS Receiver LED/ Wi-Fi LED
The built-in Wi-Fi functionality also allows drivers to connect the dash cam directly to their smartphone to adjust settings and easily download footage. This quick and easy access means that drivers can retrieve and store footage on their smartphone whenever they need it. The F200 can support up to 128GB Micro SD storage and comes with 16GB as standard, which will provide up to two hours’ loop recording on both cameras for the two-channel option.

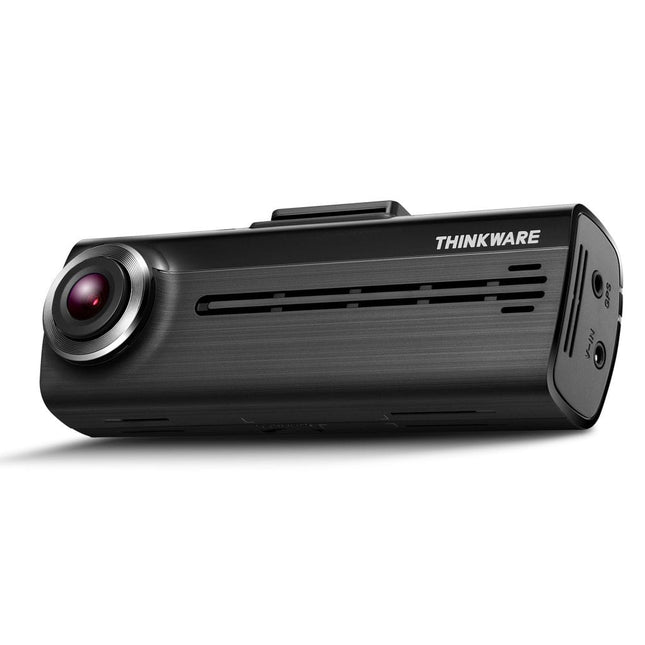

HIGH DEFINITION VIDEO QUALITYCMOS Image Sensors allow constant Full 1080p Front and HD 720p Rear recording during both daytime and nighttime along with a 140-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.
ENERGY SAVING PARKING RECORDINGEnergy saving mode will reduce power consumption by 1/3 less and gives 3x longer video recording than normal parking mode. When you are away for a vacation or leaving your car for quite some time, energy saving parking recording is a recommended solution. When in use, the device will go to sleep and soon after an impact has been detected by built-in G-senor, it will wake up within a second and start recording for the next 20 seconds of the period.
SAFETY CAMERA ALERT(Optional GPS antenna required for F200)
One of the safety features from THINKWARE – The Safety Camera Alert function of THINKWARE DASH CAM actively alerts the driver of any photo enforcement locations on the route while still recording videos. THINKWARE Dash Cam provides an active warning for these 5 types of road safety cameras.
RED LIGHT WARNING SYSTEM
SPEED CAMERA WARNING SYSTEM
RED LIGHT & SPEED CAMERA WARNING SYSTEM
AVERAGE SPEED WARNING SYSTEM
MOBILE ZONE WARNING SYSTEM
VIDEO ENHANCEMENT TECHNOLOGYTHINKWARE DASH CAMs are equipped with top-notch video enhancement technology on the market, ensuring the most vivid video recordings under any circumstance.
WIDE DYNAMIC RANGEWhen you are driving under bright sunlight, coming out of a tunnel, or getting under the shadow of a tall building etc, a sudden change in frontal light exposure levels can result in excessively bright or dark recordings.The WDR function eliminates excessively bright spots on the recording to correct its colour balance in order to ensure a clear image.
NIGHTTIME PICTURE QUALITY CORRECTIONImages from the videos recorded during nighttime driving on dark streets are generally difficult to make out.The enhancement Sensors of THINKWARE DASH CAMs come with a standard function of brightness and colour control as well as noise cancellation.
AUTOMATIC EXPOSUREA sudden rise of light exposure caused by strong sunlight or headlight beams of other oncoming vehicles may cause difficulties to assess the situation. Also, the lack of lighting in a dark tunnel or night driving may pose the same problem.The automatic light exposure function controls the level of light exposure to maintain vivid and clear video recordings in all circumstances.
VARIOUS AUTONOMOUS RECORDING MODESVarious Recording Modes and Automatic Switch between Modes
Continuous Recording ModeThis mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
Incident Recording ModeThe Active Impact Monitoring System will automatically store the video data ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
Manual Recording ModeSimilar to a video camera, you can use the Manual Recording Mode to capture events that occur in front of your vehicle whether or not it is in motion.
FORMAT FREE TECHNOLOGYF200 utilizes the FAT (File Allocation Table) system. This allows THINKWARE’s proprietary Format Free Technology to eliminate the need for periodical manual formatting of recorded video files on the microSD memory card. It also helps extend the life of your memory card. You can view recorded video files on any PC without having to worry about converting files. THINKWARE DASH CAM F200 saves the hassle of manually clearing memory space.
CHECK RECORDED IMAGES USING SMARTPHONEYour smartphone and the F200 can be connected via the exclusive application.Check download or delete recorded images, and configure dash cam settings.
PC VIEWERThe intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.
COMPREHENSIVE DRIVING INFORMATION WITH GPSWith the optional GPS Tracker, the THINKWARE DASH CAM F200 can record the vehicle’s driving speed and provide its precise location and routes identification on the map. The GPS Tracker helps you to accurately assess the details of the surrounding area by providing you with the vehicle speed and the time of a collision, and the severity of an impact. The video recording feature not only stores driving footages in case of an event, but it can also be used to track your holiday travel routes.* The video recording feature is only available when using the GPS Tracker accessory sold separately.
THERMAL PROTECTION SYSTEMThe specially designed heat discharge construction and the built-in thermal sensor protects the device and its data against intense heat by automatically turning it off to prevent overheating.
FAIL-SAFE RECORDINGIn the event that the power gets disconnected after an accident, the fail-safe recording uses the Super Capacitor for backup power to ensure safe storage of any recording in progress – so you can be assured that your valuable data will be securely stored under any circumstances.
DIMENSION
98.5 x 34 x 22mm
WEIGHT
54g
CAMERA
ON Semiconduction CMOS 2.13M
RESOLUTION
Front: Full HD (1920x1080P) Rear: HD (1280x720P)
CAPACITY
Micro SD Card 8GB class10, 16GB/32GB/64GB/128GB UHS-1
RECORDING MODES
Continuous Recording, Incident Recording, Manual Recording, Parking Recording, Audio Recording
SENSOR
3-Axis Accelerometer G-Sensor (3D, ±3G)
GPS
External GPS receiver (Optional)
POWER
Input Power: DC 12/24V
ETC
Operation Status LED
Compatible with U1000, X1000, Q1000, Q800Pro, F800Pro, F790, F770, T700, X700, F200Pro, F200, F100, F70 & M1 Motorsports Cam

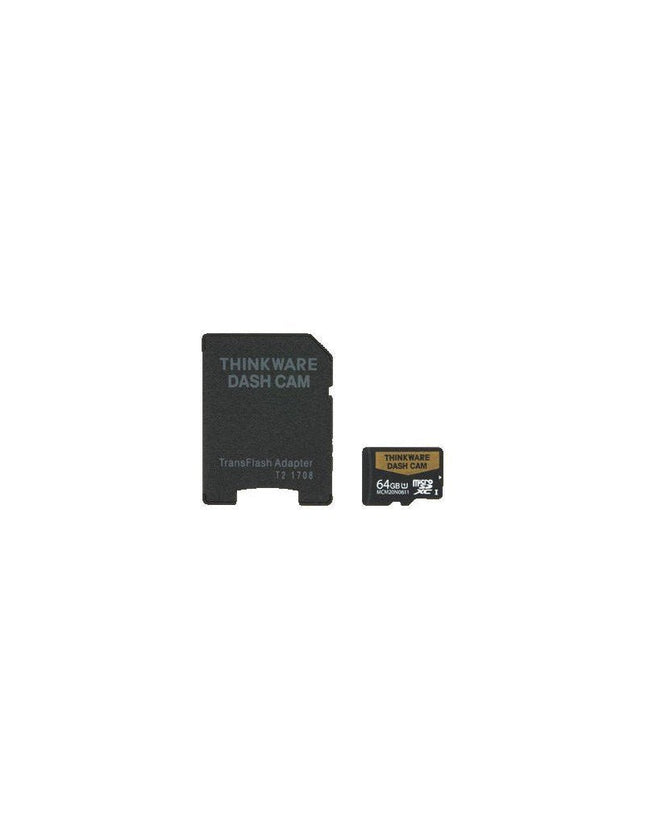

Thinkware Memory Cards (MicroSD Cards)
Fully tested and proven for Thinkware Dash Cams, Thinkware Memory Cards are designed and tested for secure data storage.
Memory cards store the video files created by your dash cam until overwritten or deleted. Your memory card needs to be in good working condition to ensure safe storage of your valuable files.
Optimized for use with THINKWARE dash cams
Thinkware Memory Cards use Sudden Power Off Recovery (SPOR) technology which reduces the chance of data corruption.
The UHS-I speed class rating delivers high-speed file transfer performance compared to a regular memory cards.
This product has a 6 month warranty.

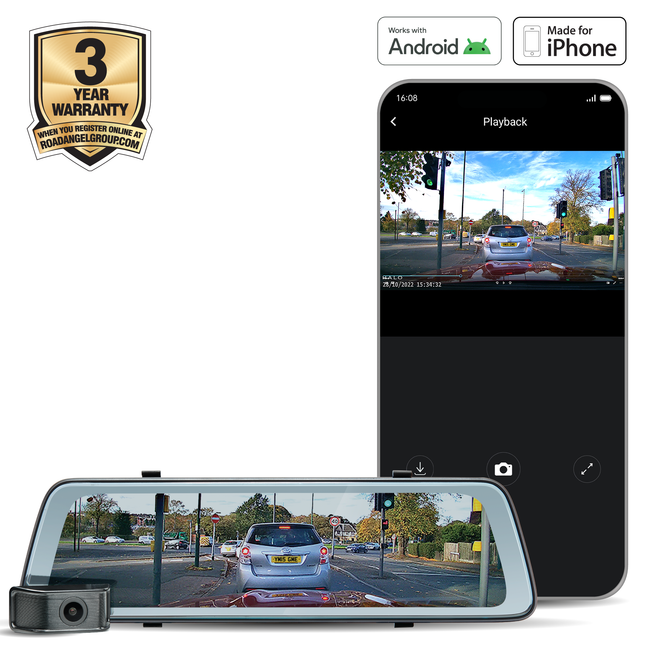

1440P QHD Video RecordingUtilising Halo View’s new 6G QHD lens ensures crystal-clear footage that remains in focus as far as the naked eye can see and beyond.
Anti-Glare ScreenThe Halo View actively suppresses the tailing vehicle's headlights to ensure a clear; glare-free image is projected onto the display, for safer and clearer driving.
Bigger IS Better!Halo View has a brilliant 10" touch-sensitive glass screen that displays the 1080P rear camera footage, giving you a clear & crisp view of what is happening behind you.
Waterproof Rear CameraYou can now easily see everything behind your car with our waterproof & high-definition rear camera which can be installed outside of the car/van and used as Reversing Camera.
Reverse Gear ActivationWhen reverse gear is initiated the Halo View springs into life displaying what the rear camera see day or night, rain or shine. Ideal for vans with sealed bulk heads and reduced visibilty.
Specifications:
Alert Types / Extras: Parking Aid - Reverse Trigger - Winter Mode - True Parking Mode
Recording Resolution: 2K 1440p & 1080p rear
Viewing Angle: 140oC & Rear 120oC
Memory: Up to 128gb external microSD
Sound: Optional Recording
Connectivity: Mini USB
Image Sensor: Omnivision OV04B10 & Rear GC2053
Battery Protection: Variable Voltage Battery Cut-Off
Power Input: 5V Mini USB
Processor: HiSilicon
Dimensions: 265mm x 18mm x 73mm
What's in the box
Halo View, Rear Camera, Mounting Bands, 3m Sticker, USB Power Adapter, Quick Start Guide, Trim Tool, Mini USB Power Cable, 5.5m Front - Rear Cable
4K UHD Loop Recording Dash CamCapture every moment in Ultra High Definition, with Halo Ultra. We packed our flagship dash cam with state-of-the-art image capture and processing technology. Now you can see all the small moments, in BIG detail.4K UHD ResolutionThe Halo Ultra is the first dash cam equipped with the latest generation of the SONY IMX415 image sensor. Extending the recording distance and clarification of obstacles hard to read by the naked eye.Internal 64GB SSD MemoryCombined with integrated 5Ghz Wi-Fi capabilities, the transfer of storage data and accessibility ensure data quality remains uncompromised with lightning transfer speeds, ensuring shorter waiting times and zero buffering.5GHz Ultra-Fast Wi-FiThe Halo Ultra supports 5Ghz Wi-Fi creating less interference. This means transfer speeds are increased by up to 300% enabling faster and smoother download and playback of recorded footage and imagery.Road Monitoring Conditions and AdviceThe new Halo Ultra uses the latest ADAS technology to monitor traffic conditions whilst driving. The Halo Ultra can be used to make the driver aware of pedestrians, vehicle proximity, lane departure violations and other potential hazards.Built-in GPS & TelematicsThe Halo Ultra is equipped with built-in GPS hardware tracking and storing your journey, locations and travelling speeds. Alongside the GPS data the Halo Ultra also records telematic information including detailed analysis of acceleration, braking and cornering. This information is tracked along every part of your journey with GPS map backup and cross referencing for easy playback and and when you may need the information.FEATURES ADAS - Advanced Driver Assistance Systems, Lane Departure Warning, Onward Collision Warning, Front Car Movement Warning, Winter Mode, True Parking ModeSpecifications:RECORDING RESOLUTION : 4K 2160pVIEWING ANGLE: 140°MEMORY: 64GB Built-InSOUND: Optional RecordingCONNECTIVITY: USB Type CIMAGE SENSOR: Sony IMX415BATTERY PROTECTION: Variable Voltage Battery Cut-OffPOWER INPUT: 5V USB CPROCESSOR: HiSilicon 3559DIMENSIONS: 111mm x 35mm x 50mmWHAT'S IN THE BOXHalo Ultra, Mounting Bracket, 3m Sticker, USB Power Adapter, Quick Start Guide, Trim Tool, Stactic Sticker, Type C Power Cable

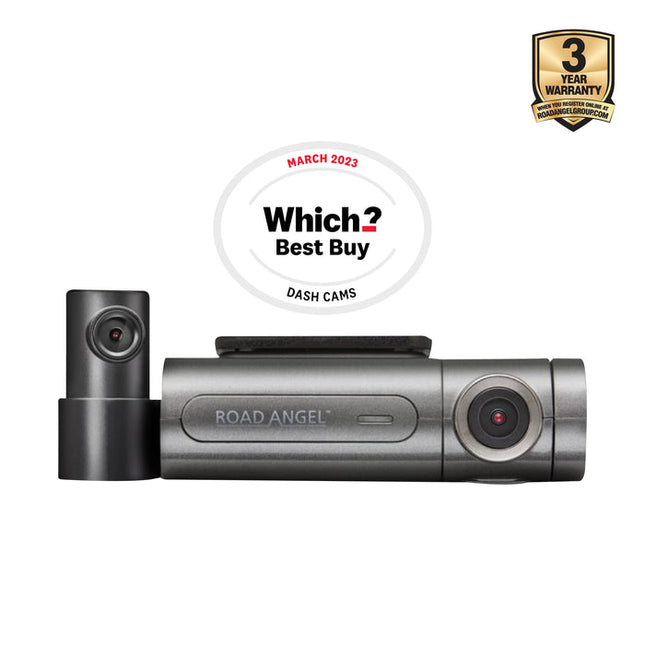

FRONT & REAR DASH CAM PROTECTION 2K FRONT, 1080p REARThe Front & Rear Dash Cam system of the Halo Pro Dash Cam captures both the front and rear of your car with the incredible Optic Lens and powerful CMOS Sensor. This allows you to capture your journey in crystal clear quality, giving you the security of first-hand video recording of a car accident, and to protect you against faults of dangerous drivers or insurance fraud, courtesy of the Halo Pro Front and Rear Dash Cam.OUT OF SIGHT Compact & Out the WayWith a high standard of quality, reliability and personalisation options, the Road Angel Halo Pro packs a mighty punch in its compact body with both the Front & Rear Dash Cams being discreet. Our Halo dash cam is easy to operate and has never looked so good. Being so compact, it wont obscure your driving, with its rotatable lens, and discrete wiring means you will capture sharp full HD footage.PROTECTION FROM ALL ANGLESFRONT + REAR DASH CAMTaking driving safety up to the next level with the dual camera Halo Pro. With built-in GPS, G-Sensor and a high precision GPS module, this ultra-sophisticated dual camera package extends the capabilities of dash cameras beyond the expected.COVER A WIDER ANGLE140 Degree Wide Angle RecordingThe Halo Pro supports 1440P Wide Quad HD loop recording to produce a sharpness of imagery that amazes - 78% higher than that of 1080P. A compact size and no monitor means no distraction.EYES ON WHEN YOU'RE NOT AROUNDParking ModeThanks to the Halo Pro's Parking Mode (hardwiring kit required - available here) your vehicle is protected when you're away. Park up, turn your ignition off and the Halo Pro will automatically enter Parking Mode in time-lapse. If the G-Sensor detects an event or movement the Halo Pro will resume normal recording.GPS & Telematics Built-inThanks to the Halo Pro Front and Rear Dash Cam's built-in GPS hardware, your journeys, locations and speeds are all tracked and stored. Along with GPS information the Halo Pro Front and Rear Dash Cam also records extensive telematics data for every journey. This includes detailed acceleration, braking and cornering telemetry, along every part of your journey shown on a map for easy playback and reference.Specifications:ALERT TYPES: Winter Mode, True Parking ModeRECORDING RESOLUTION: 2K 1440p Front, 1080p RearVIEWING ANGLE: 140degree Front, 120degree RearMEMORY: Up to 128gb (sold separately)SOUND: Optional RecordingCONNECTIVITY: Micro USB / USB-CIMAGE SENSOR: omivision ovo4b10BATTERY PROTECTION: Variable Voltage Battery Cut-OffPOWER INPUT: 12v USB-CPROCESSOR: hislicon hi3556What's in the BoxHalo Pro Front Camera, Halo Pro Rear Camera, 12v Power Cable, 3m Sticky Pads, Trim Tool
LOOP RECORDING AT 1080p High-DefWith a new standard of quality, reliability and personalisation options, the Road Angel Halo Go packs a mighty punch in its compact body. Dash Cameras have never looked so good or been so easy to operate. Unobtrusive while driving, its rotatable lens, and discrete wiring means you can capture remarkable full HD footage. Connect to your mobile phone through built-in Wi-Fi, watch a real-time video preview on your Smartphone and download it if an accident happens.140° Wide Angle LensSeeing is believing! The Road Angel Halo Go supports 1080P HD loop recording to produce a sharpness of imagery that amazes. A compact size and no monitor means no distraction.Parking ProtectionProtection even when parked! Thanks to the Halo Go's built-in Parking Mode your vehicle is protected when you're away. After 15 minutes of inactivity the Halo Go will automatically enter Parking Mode in time-lapse. If the G-Sensor detects an event or movement the Halo Go will resume normal recording.Specifications:FEATURES: G-Sensor, Parking ModeRECORDING: 1080P@30fps HD Loop Recording , 720P@30fps HD Loop RecordingLENS : 4 Layer Optics , 140° Viewing Angle - f/2.2 ApertureIMAGE SENSOR : GC 2053 Image SensorPROCESSOR : SSC 333 ProcessorSTORAGE : Supports upto 128GB Class 10 Micro SD Card (Minimum recommended size 16GB)What's Included in the BoxRoad Angel Halo Go Full HD Dash Cam, USB power cable, Dual USB power adapter, 3M adhesive, Instructions
LOOP RECORDING AT 1440p Distortionless Quad HD VideoWith a new standard of quality, reliability and personalisation options, the Halo Drive packs a mighty punch in its compact body. Dash Cameras have never looked so good or been so easy to operate. Unobtrusive while driving, its rotatable lens, and discrete wiring means you can capture remarkable full 2K(1440p) QHD footage. Connect to your mobile phone through built-in Wi-Fi, watch a real-time video preview on your Smartphone and download it if an accident happens.GET THE FULL PICTURE 140° Wide Angle Anti-Distortion LensSeeing is believing! The Halo Drive supports 1440p Quad HD loop recording to produce a sharpness of imagery that amazes - 78% higher than that of 1080p. A compact size and no monitor means no distraction.EYES OPEN WHEN YOURS ARE CLOSED Parking ProtectionProtection even when parked! Thanks to the Halo Drive's built-in Parking Mode your vehicle is protected when you're away. After 15 minutes of inactivity the Halo Drive will automatically enter Parking Mode in time-lapse. If the G-Sensor detects an event or movement the Halo Drive will resume normal recording.Specifications:FEATURES: Parking mode, Auto start, Microphone, Auto OverwriteRECORDING: Full HD 2560x 1440p (30 fps)VIEWING ANGLE : 140°MEMORY: Up to 128gb SDHC (sold separately)SOUND: Mono SpeakerCONNECTIVITY: Micro USB / USB-C(coming soon) , WiFiIMAGE SENSOR : CMOSPOWER INPUT : 12v Micro USBWhat's Included in the BoxRoad Angel Halo Drive Quad HD Dash Cam, USB power cable, Dual USB power adapter, 3M adhesive, InstructionsDownloads
User Manual

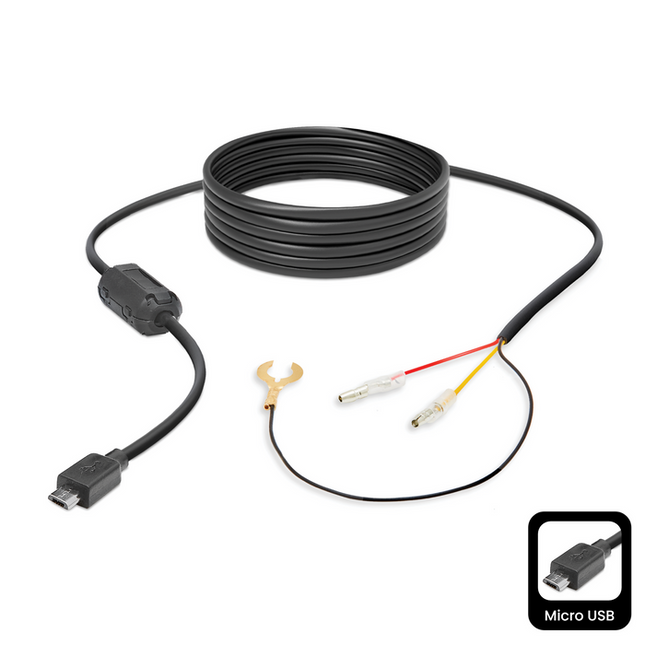

Our Road Angel Halo Hardwire Kit makes it easy for anyone to install our dash cameras in any vehicle, no matter the make or model. Our system allows for simple plug and play accessibility, and contains everything you need to get started. Our dash cam hardwire kit allows for a quick and easy connection, neatly hiding wires for minimal disturbance while on the road.
NB: Image is HWK5V - Wiring Kits Maybe supplied in Clear packaging or Black Boxes.
Cable design varies depending on camera model. Universal Kit - Does Not Have All Fuse Tap Variances
