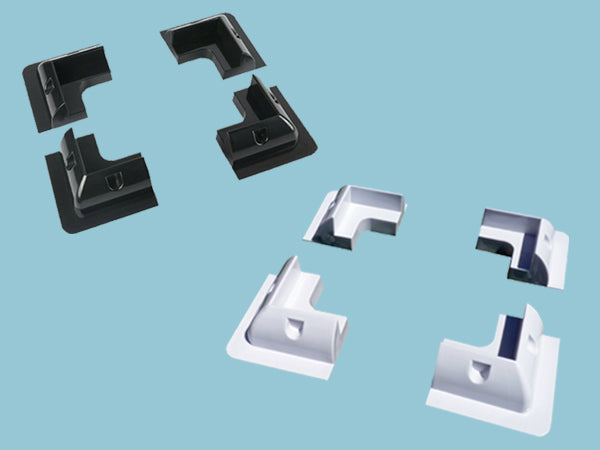

Sunshine Solar panel mounts are an ideal way to fix your solar panels on the roof or deck of caravans, motor homes and boats. This set of 6 ABS solar mounts can be safely bonded to the surface removing the need to drill holes.
This set of four universal solar panel corner mounts can be used with any aluminium framed solar panel and have a lateral length of 150mm.
The mounts act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck. The plastic mounts profiles provide a high quality mounting solution creating the ideal combination of functionality and appearance.
Important note: When calculating the space required to fit a solar panel with these plastic mounts you will need to add 120mm to both the width and length of the solar panel dimensions. Example: Solar Panel dimensions = 1000mm x 500mm - minimum flat area needed = 1120mm x 620mm.
Contents:
Sunshine 4 Plastic Corner Mounts (Black or White)
Please download the link below for the installation guide
Doc1

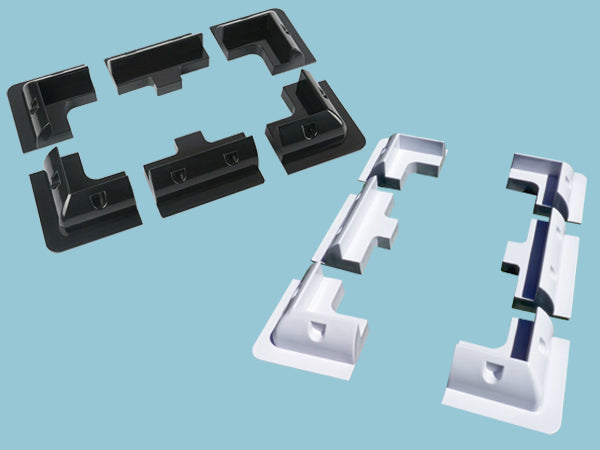

Sunshine Solar panel mounts are an ideal way to fix your solar panels on the roof or deck of caravans, motor homes and boats. This set of 6 ABS solar mounts can be safely bonded to the surface removing the need to drill holes.
This set of six universal solar panel corner mounts and sides can be used with any aluminium-framed solar panel and have a lateral length of 150mm.
The mounts act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck. The plastic mounts profiles provide a high quality mounting solution creating the ideal combination of functionality and appearance.
Important note: When calculating the space required to fit a solar panel with these plastic mounts you will need to add 120mm to both the width and length of the solar panel dimensions.Example: Solar Panel dimensions = 1000mm x 500mm - minimum flat area needed = 1120mm x 620mm.
Contents:
Sunshine 2 Plastic Side Mounts
Sunshine 4 Plastic Corner Mounts
Please download the link below for the installation guide
Doc1

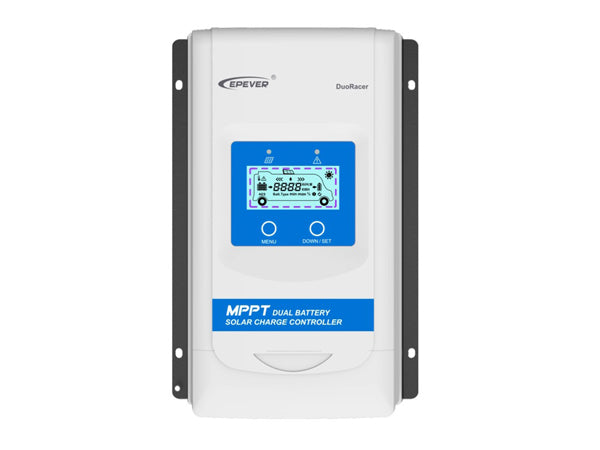

DuoRacer MPPT charge controller is made for charging two batteries at the same time in a solar system. This controller supports multiple battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the required.
MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional Bluetooth Adapter.
Features
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
Bluetooth (Bluetooth Adapter required)
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation (BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
BATT1 type can be set via LED/LCD.
Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
100% charging and discharging in operation environmental temperature range.
LED and LCD display units selectable.
Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
① Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).
② Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).
NOTE: the BATT1 and BATT2 must be at the same voltage level.
Specifications
Max Rated Charging Current: 30 amps
Rated Solar Charge Power: 390 Watts @ 12V - 780 Watts @ 24V
Max Input Voltage: 100V(At min. operating environment temp.) 92V(At 25℃ environment temp.)
Max. conversion efficiency: 98%
Self Consumption: 26mA/12V;15mA/24V 19mA/12V;10mA/24V(Low-power mode)
System Voltage: 12V/24V Auto-set
Battery Selection: Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn
Enclosure: IP33
Max PV Wire Size: 10mm²
Dimensions: 247.2 × 165 × 68.5 mm
Weight: 1.4kg
PRODUCT CODE: DR3210N_DDS

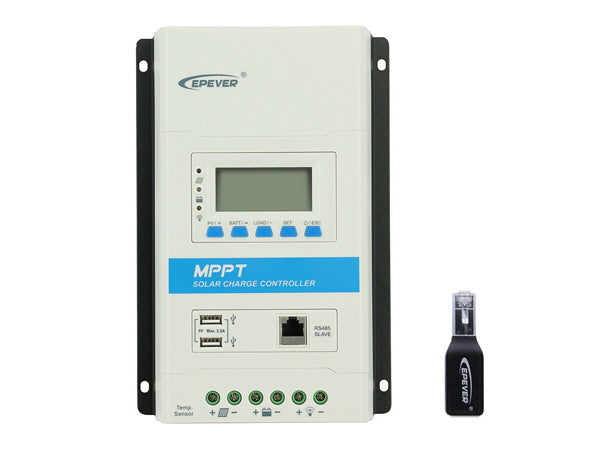

This Sunshine Solar Controller features the latest MPPT charge regulation for reliable and economical battery charge control along with a Bluetooth Adapter for setting and monitoring your solar power system. MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controllers, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
This Solar Charge Controller comes with a Bluetooth Adapter that allows basic reprogramming such as battery type selection along with full monitoring of the solar panel power and state of charge of your battery bank via an iOS / Android app or desktop computer. The app also allows control over the load beneficial for setting timers for lighting applications.
This series of controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance, and give all-round electronic protections, including overcharging and over-discharge protection to minimize damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system.
Solar Controller Features
Product Codes: TRIRON3210N and BLE-RJ45-D
MPPT function
Bluetooth (with included adapter)
Compatible with lead acid & lithium-ion batteries
5VDC dual USB outputs
Built-in display
Optional 2m wired remote display
Microprocessor controller pulse width modulation (PWM) charging
Overload protection
Overcharge protection
Short circuit protection
Lightning protection
Reverse discharge protection
Reverse polarity connection protection
Under voltage protection
Rated battery voltage 12/24vdc
RJ45 communication port for optional remote meter
Solar Controller Specifications
Max Rated Charging Current: 30 amps
Max Rated Load Current: 30 amps
Rated Solar Charge Power: 390 Watts @ 12V - 780 Watts @ 24V
Max. PV Array Power: 780W / 12V - 1560W/24V
Max Input Voltage: 100Vdc
MPPT Efficiency: 99.5%
Self Consumption: ≤14mA/12V - ≤15mA/12V
System Voltage: 12V/24V Auto-set
Working Temperature: -35° to +55°
Battery Selection: Gel, Sealed, Flooded, Lithium-ion
Enclosure: IP30
Temperature Compensation: -30mV/°C/12V @ 25°C
Control Mode: MPPT Charging
Max PV Wire Size: 6mm²
Dimensions: 158mm x 238.3mm x 62.7mm
Weight: 1.35kg
For more info please download the links below.
Datasheet 1
Datasheet 2
The Filax from Victron Energy has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power
The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines or electric motors.
Open transition transfer
The Filax is an open transition (break before make) transfer switch.
The maximum load transfer time is 16ms.
The load is normally supplied by the priority source, and is transferred to the alternate source if:
The voltage of the priority source drops below the threshold value.
The frequency of the priority source drops below the low frequency threshold value, or increases beyond the high frequency threshold value.
Reverse transfer from the alternate source to the priority source is initiated when the priority source has operated within the voltage and frequency reverse switching limits during 30s.
The Filax from Victron Energy has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power
The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines or electric motors.
Open transition transfer
The Filax is an open transition (break before make) transfer switch.
The maximum load transfer time is 16ms.
The load is normally supplied by the priority source, and is transferred to the alternate source if:
The voltage of the priority source drops below the threshold value.
The frequency of the priority source drops below the low frequency threshold value, or increases beyond the high frequency threshold value.
Reverse transfer from the alternate source to the priority source is initiated when the priority source has operated within the voltage and frequency reverse switching limits during 30s.
The Victron Transfer Switch is designed to take over automatic switching between different power sources: between an generator and the shore, or between an inverter and a generator, or between an inverter and the shore.
The Transfer Switch has two inputs and one output and automatically transfer the available AC power to output. It can be used with any Victron Energy inverter, dependent on capacity.
Pdf
The Victron Transfer Switch is designed to take over automatic switching between different power sources: between an generator and the shore, or between an inverter and a generator, or between an inverter and the shore.
The Victron Transfer Switch is designed to take over automatic switching between different power sources: between an generator and the shore, or between an inverter and a generator, or between an inverter and the shore.
The Transfer Switch has two inputs and one output and automatically transfer the available AC power to output. It can be used with any Victron Energy inverter, dependent on capacity.
Pdf

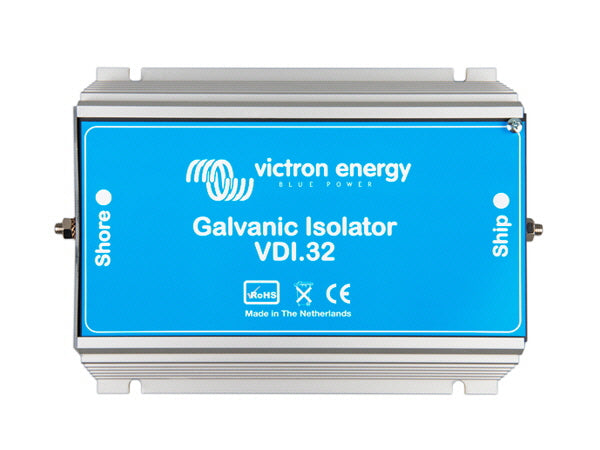

The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.
The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
Description
Galvanic Isolator Waterproof (potted)
Maximum current: 32 A
Peak current (20 ms): 3200 A
Connection: M6
Heat sink Material Anodized aluminium
Protection category: IP 67
Weight: 2 kg
Dimensions: (hxwxd) VDI-32 63 x 164 x 200 mm
Warranty: 2 Years
Layout: RH+
Indispensable in professional marine energy systems. It prevents electrolytic corrosion and above all serves as a device to guarantee a safe electric system. Toroidal wound technology for quietness and high efficiency. Soft start circuitry will ensure that the shore circuit breaker will not trip when plugged in.
Description

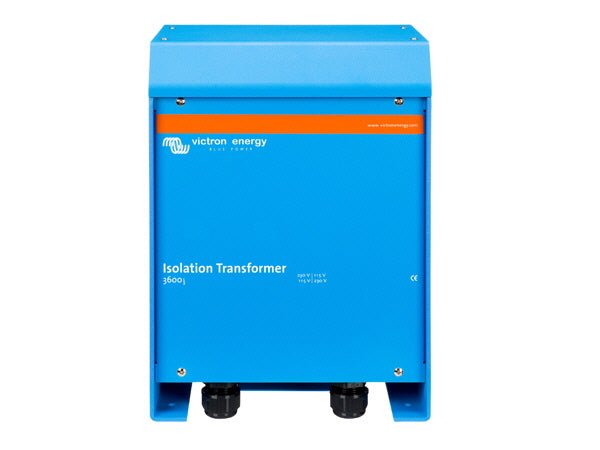

The Isolation Transformer eliminates any electrical continuity between AC shore power and the boat. It is essential for safety and eliminates the need for galvanic isolators and polarity alarms.
Safety is taken for granted in case of a normal on-shore installation. A fuse will blow or a GFCI (Ground Fault Current Interrupter) will trip in case of a short circuit or current leakage to ground. Connecting the ground wire of the shore-side supply to the metal parts of the boat will result in galvanic corrosion (see below). Bringing only the live and neutral wire on board results in an unsafe situation because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.
Galvanic corrosion occurs when two dissimilar metals in electrical contact are simultaneously exposed to an electrically conducting fluid. Seawater and, to a lesser extent, fresh water are such fluids. In general, the more active alloy of the couple corrodes preferentially while the less active (more noble) material is cathodically protected. The rate of galvanic corrosion is a function of several variables including area ratios, conductivity of the fluid, temperature, nature of the materials, etc.
It is a misunderstanding that galvanic corrosion occurs only in metal and aluminium hulls. In fact it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with water. Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller and other metal parts in contact with water as soon as the boat is connected to the shore-side supply.
It might therefore be tempting not to connect the ground conductor: this is however extremely dangerous because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.
The best solution to avoid galvanic corrosion and at the same time prevent any unsafe situation is to install an Isolation Transformer to connect to the shore-side supply.
The Isolation Transformer eliminates any electrical continuity between shore power and the boat. The shore power is fed to the primary side of the transformer and the ship is connected to the secondary. The Isolation Transformer completely isolates the boat from the shore ground. By connecting all metal parts to the neutral output on the secondary side of the transformer, a GFCI will trip or a fuse will blow in case of a short circuit.
Soft start is a standard feature of a Victron Energy isolation transformer. It will prevent the shore power fuse from blowing due to the inrush current of the transformer, which would otherwise occur.
It is also recommended, for optimal safety, to connect the secondary neutral of the transformer to ground when the boat is out of the water.
Pdf
Indispensable in professional marine energy systems. It prevents electrolytic corrosion and above all serves as a device to guarantee a safe electric system. Toroidal wound technology for quietness and high efficiency. Soft start circuitry will ensure that the shore circuit breaker will not trip when plugged in
Description

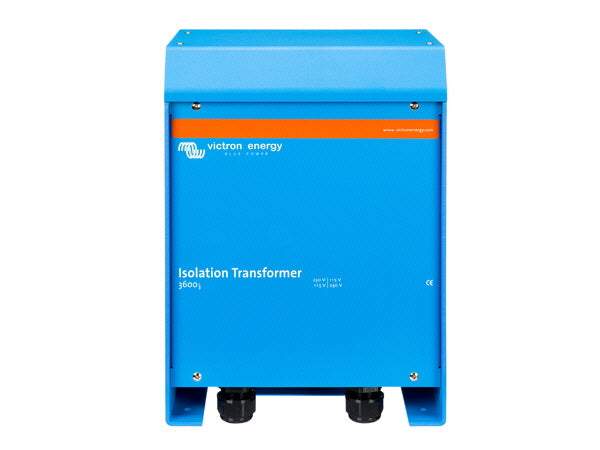

Victron Isolation Transformer 3600W - Auto
Safety and prevention of galvanic corrosion The Isolation Transformer eliminates any electrical continuity between AC shore power and the boat. It is essential for safety and eliminates the need for galvanic isolators and polarity alarms.
Safety is taken for granted in case of a normal on-shore installation. A fuse will blow or a GFCI (Ground Fault Current Interrupter) will trip in case of a short circuit or current leakage to ground. Connecting the ground wire of the shore-side supply to the metal parts of the boat will result in galvanic corrosion (see below). Bringing only the live and neutral wire on board results in an unsafe situation because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.
Galvanic corrosion occurs when two dissimilar metals in electrical contact are simultaneously exposed to an electrically conducting fluid. Seawater and, to a lesser extent, fresh water are such fluids. In general, the more active alloy of the couple corrodes preferentially while the less active (more noble) material is cathodically protected. The rate of galvanic corrosion is a function of several variables including area ratios, conductivity of the fluid, temperature, nature of the materials, etc.
It is a misunderstanding that galvanic corrosion occurs only in metal and aluminium hulls. In fact it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with water. Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller and other metal parts in contact with water as soon as the boat is connected to the shore-side supply.
It might therefore be tempting not to connect the ground conductor: this is however extremely dangerous because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.
The best solution to avoid galvanic corrosion and at the same time prevent any unsafe situation is to install an Isolation Transformer to connect to the shore-side supply.
The Isolation Transformer eliminates any electrical continuity between shore power and the boat. The shore power is fed to the primary side of the transformer and the ship is connected to the secondary. The Isolation Transformer completely isolates the boat from the shore ground. By connecting all metal parts to the neutral output on the secondary side of the transformer, a GFCI will trip or a fuse will blow in case of a short circuit.
Soft start is a standard feature of a Victron Energy isolation transformer. It will prevent the shore power fuse from blowing due to the inrush current of the transformer, which would otherwise occur.
It is also recommended, for optimal safety, to connect the secondary neutral of the transformer to ground when the boat is out of the water.
3600 Watt Auto
115/230 V This model will automatically switch to 115 V or 230 V supply, depending on input voltage.
Supply 88 V – 130 V: switches to 115 V supply
Supply 185 – 250 V: switches to 230 V supply range.
Note: The AC input voltage is raised by 1:1.05 ratio at the AC output.
Pdf
Indispensable in professional marine energy systems. It prevents electrolytic corrosion and above all serves as a device to guarantee a safe electric system. Toroidal wound technology for quietness and high efficiency. Soft start circuitry will ensure that the shore circuit breaker will not trip when plugged in.
Description
The Isolation Transformer eliminates any electrical continuity between AC shore power and the boat. It is essential for safety and eliminates the need for galvanic isolators and polarity alarms.
Safety is taken for granted in case of a normal on-shore installation. A fuse will blow or a GFCI (Ground Fault Current Interrupter) will trip in case of a short circuit or current leakage to ground. Connecting the ground wire of the shore-side supply to the metal parts of the boat will result in galvanic corrosion (see below). Bringing only the live and neutral wire on board results in an unsafe situation because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.
Galvanic corrosion occurs when two dissimilar metals in electrical contact are simultaneously exposed to an electrically conducting fluid. Seawater and, to a lesser extent, fresh water are such fluids. In general, the more active alloy of the couple corrodes preferentially while the less active (more noble) material is cathodically protected. The rate of galvanic corrosion is a function of several variables including area ratios, conductivity of the fluid, temperature, nature of the materials, etc.
It is a misunderstanding that galvanic corrosion occurs only in metal and aluminium hulls. In fact it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with water. Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller and other metal parts in contact with water as soon as the boat is connected to the shore-side supply.
It might therefore be tempting not to connect the ground conductor: this is however extremely dangerous because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.
The best solution to avoid galvanic corrosion and at the same time prevent any unsafe situation is to install an Isolation Transformer to connect to the shore-side supply.
The Isolation Transformer eliminates any electrical continuity between shore power and the boat. The shore power is fed to the primary side of the transformer and the ship is connected to the secondary. The Isolation Transformer completely isolates the boat from the shore ground. By connecting all metal parts to the neutral output on the secondary side of the transformer, a GFCI will trip or a fuse will blow in case of a short circuit.
Soft start is a standard feature of a Victron Energy isolation transformer. It will prevent the shore power fuse from blowing due to the inrush current of the transformer, which would otherwise occur.
It is also recommended, for optimal safety, to connect the secondary neutral of the transformer to ground when the boat is out of the water.
Pdf
