The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Features of the - Orion-Tr Smart 24/24V-17A Isolated DC-DC Charger
Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Fully programmable
Battery charge algorithm (configurable) or fixed output.
Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
For lithium batteries absorption time is fixed, default 2 hours.
Alternatively, a fixed output voltage can be chosen.
Remote on-off
A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
For more info please download this link>>Pdf
For status monitoring and set-up Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
For more info please click this link>> Pdf
The Victron MPPT controller will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement, of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and a large number of cells wired in series to produce 36 volts on the other.
To fully exploit the potential of the MPPT controller, the array voltage should be substantially higher than the battery voltage. The MPPT controller is the solution of choice for higher power systems because of the lowest overall system cost due to smaller cable cross sectional areas. It will also harvest substantially more power when the solar cell temperature is low (below 45°C), or very high (above 75°C), or when irradiance is very low.
Features - of the BlueSolar MPPT 75V/15A Solar Charge Controller.
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
Real-time data display options
- Color Control GX or other GX devices:
BatteryLife: intelligent battery management by load shedding.
For more info please click this link>> Pdf
The Victron MPPT controller will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement, of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and a large number of cells wired in series to produce 36 volts on the other.
To fully exploit the potential of the MPPT controller, the array voltage should be substantially higher than the battery voltage. The MPPT controller is the solution of choice for higher power systems because of the lowest overall system cost due to smaller cable cross-sectional areas. It will also harvest substantially more power when the solar cell temperature is low (below 45°C), or very high (above 75°C), or when irradiance is very low.
Features - of the BlueSolar MPPT 75V/10A Solar Charge Controller.
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
Real-time data display options
- Color Control GX or other GX devices:
BatteryLife: intelligent battery management by load shedding.
For more info please click this link>> Pdf

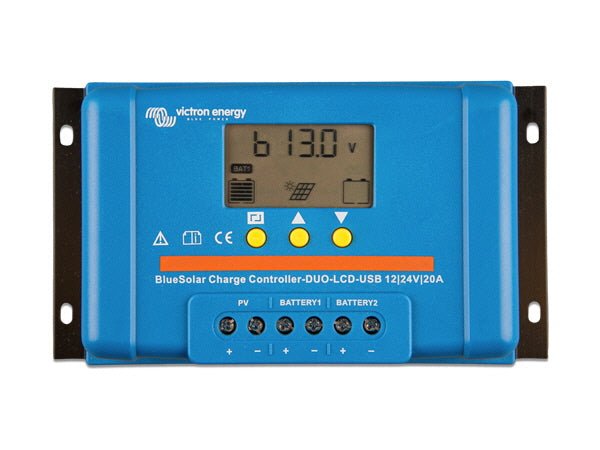

Liquid crystal display. For status monitoring and set-up
External Temperature sensor included
2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and the service battery of a boat or mobile home.
Protections. Protected against reverse polarity connection of the solar panels and/or battery
Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS).
Two 5 Volt USB outputs. Maximum current of the two outputs combined: 2A
For more info please click this link>> Pdf
The new MPPT Control is mounted in the familiar BMV-700 series housing, maintaining a consistent and professional look to your panels and systems monitoring equipment. To easily mount the MPPT Control on a wall, instead of flush mounted in a panel, use one of our wall mount enclosures. See the related products slider below.
Features
View live status information, including solar watts, battery voltage, charge current, load current and more.
View historical information
A. All-time values
B. 30-day historical values
MPPT setup
For more info please click this link>> Pdf

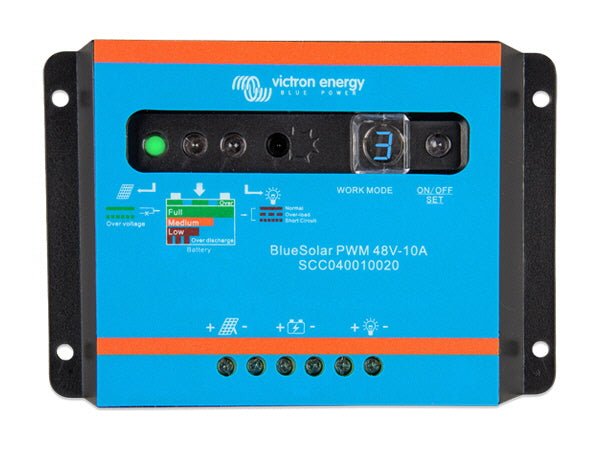

Victron BlueSolar PWM Light Charge Controller 48V 10ALoad output with low battery voltage disconnect function. Lighting control function, one timer only. Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting. Three stage battery charging (bulk, absorption, float), not programmable. Load output protected against over load and short circuit. Protected against reverse polarity connection of the solar array and/or battery. Day/night timing options: see manual for details.
For more info please click this link>> Pdf
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 30A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 20A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 20A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
For more info please download this link>> Pdf

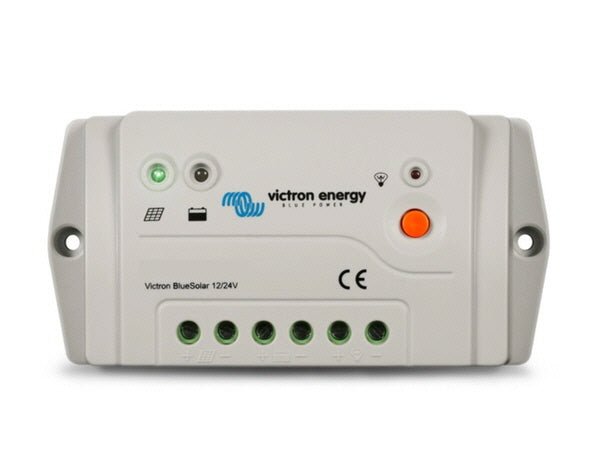

Features of the - Victron BlueSolar PWM Pro Charge Controller 12/24V 5A
The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:
With help of a computer and software
With the dedicated BlueSolar Pro Remote Panel (see features below)
Features
Lighting control function, fully programmable.
Three stage battery charging (bulk, absorption, float), fully programmable.
Integrated battery monitor function (Remote Panel needed to display state of charge).
Load output with low voltage disconnect and manual control (default setting).
Optional external temperature sensor. – Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options
See Remote Panel manual for details.
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 10A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
For more info please downlowd this link>>
