Our stand alone 100W off-grid solar power kit would typically be used for small off grid applications such as, summer houses, sheds, caravans, motorhomes, boats, stables etc. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 300W Sunshine Power Inverter to provide a pure sine wave AC 230V supply from the DC batteries supplied.
Description
Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 33Ah on a 12V system per day during the summer months. With the 300W Power Inverter supplied with this kit you could expect to run 230V AC appliances such as a TV, Laptop, Sound System, Tablet & Mobile Charges, Horse Clippers, Low Energy Lighting and much more.Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, Macbooks and other devices, using the optional Bluetooth or WiFi Adapter
Solar Panel Specifications
Product Code. SSP100MS
Max Power. 100W ± 3%
Max Power Voltage. 17.8V
Max Power Current. 5.62A
Open Circuit Voltage. 21.3V
Short Circuit Current. 6.07A
Normal Operating Cell Temp. -45 to 80°C
Max System Voltage. DC1000V
Weight. 7.3 Kg
Dimensions. 540 x 1200 x 35mm
Solar Panel - Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Data Sheet
This Sunshine Solar Flexible ETFE 100W 12V boasts ultra pure silicon delivering optimal power conversion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.
Please view this Document for more info.
This 100W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. This kit features a Slimline Solar Panel so that even with the narrowest of spaces you can still accomodate our most popular 100W Solar Panel. With the 100 Watt solar power kit you could expect to generate around 28 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.
Need More Power?...... Upgrade to an MPPT controller above for 10-30% eXtra Power
Area and Fitting Information :
Fitted ABS Corner Mounts will add 120mm to the overall length and width of the solar panel.
Fitted streamlined mounts will add 120mm to the overall length of the solar panel.
The width of this solar panel is 540mm, and the Streamline Mounts are 660mm therefore you may prefer to cut them down for a more aesthetically pleasing look.
Kit Performance - Summertime
Standard Controller: 28A per day - (10-30% more with MPPT Controller)
Docs
This 100W Sunshine Flexible Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 100 Watt solar power kit, you could expect to generate around 28 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
This Sunshine Solar Flexible Caravan Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
The Sunshine Flexible Solar range benefit from being thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and 3° solar panel flexibility for fitting on slightly curved surfaces our flexible solar range are perfect for caravans, motorhomes and campers.
Monitoring of the system can be made easy with the optional remote meter or via Apple Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.
Kit Performance - Summertime
Standard Controller: 28Ah per day - (10-30% more with MPPT Controller)

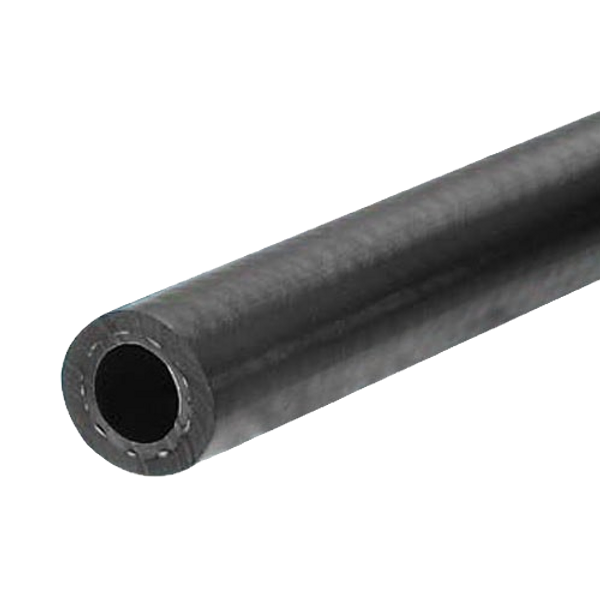

10mm ID EPDM Hose designed the Bobil New Hybrid system. Reinforced rubber hose sold by the meter, useful if you need to extend the distance between your Bobil tank and your heat exchanger.
Ordering multiples of this product will be sent as one uncut length, and will be combined with any hose included in a water heating kit.
This 110W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 110 Watt solar power kit you could expect to generate around 28 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
Description
This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.
Need More Power? ...... Upgrade to an MPPT controller above for 10-30% eXtra Power
Surface Area Requirement:
Fitted ABS Corner Mounts will add 120mm to the overall length and width of the solar panel .
Fitted Streamline Mounts will add 120mm to the overall length of the solar panel.
Kit Performance - Summertime
Standard Controller: 28Ah per day - (10-30% more with MPPT Controller)
Please view this Document for more info..

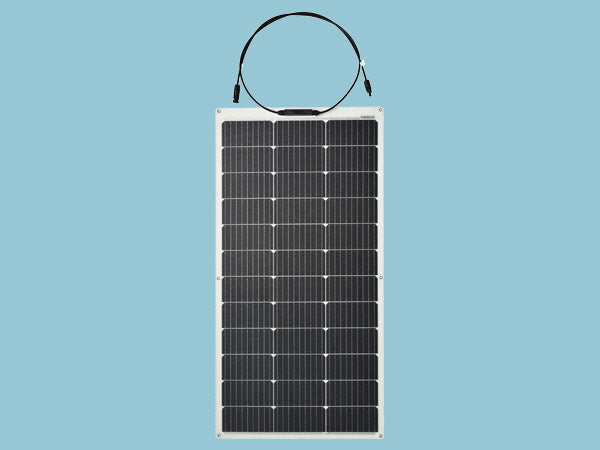

This 110W Sunshine Solar RV Flexible ETFE Panel boasts ultra pure silicon delivering optimal power conversion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes the flexible ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.
Description
The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.
The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a Sunshine Flexible 110W 12V solar panel you can generate around 37 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
Maximum Power (Pmax): 110W
Maximum Power Current (Ipm): 5.27A
Maximum Power Voltage (Vpm):20.9V
Short Circuit Current (Isc): .5.53A
Open Circuit Voltage (Voc): 24.5V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC600V
Size: 1080 x 540 x 3mm
Weight: 2.54kg
Features
Four fixing eyelets
ETFE rough scratch-resistant surface which can be walked on in deck shoes.
Highly efficient monocrystalline cells
Can be conveniently placed on slightly curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors
Three Year Manufacturers Warranty
1 View the document for more info.
2 View the document for more info.
Space-saving canister without outlet valve with built-in handle, screw cap DIN 96 and -?? screw cap Depth: 425mm Width: 125mm Height: 260mm Cap Included (Order PS807501 for cap with hole ready for pump)
