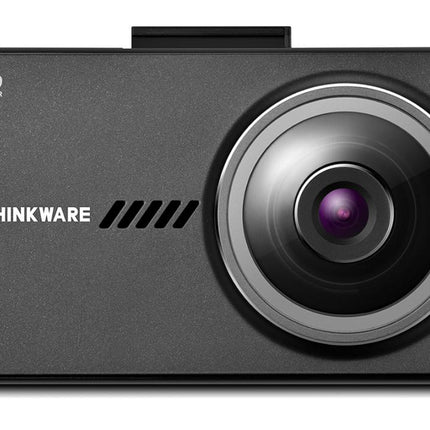

Thinkware X700 16GB 1CH Hardwire with LCD Touch Screen
Thinkware X700 16GB 1CH Hardwire with LCD Touch Screen
X700 16GB 1CH Hardwire with LCD Touch Screen
X700 KEY FEATURES
FRONT & REAR ALL FULL HD RECORDING
CMOS Image Sensors allow constant front and rear-view Full 1080p HD resolution recording during both daytime and night-time along with 142.7-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.
2.7” LCD TOUCHSCREEN
No Wi-Fi or Data exchange is needed to access your dash cam.
Now, with 2.7-inch resistive full touch LCD screen, you can easily access the menu to check the video and/or to change settings.
Get an instant video playback and visual/audio warnings for Road Safety Alerts
SUPER NIGHT VISION
Videos recorded by a dash cam in a low light environment such as a dark alleyway or underground parking lot can pose difficulties when you try to accurately identify information from the image.
SUPER NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to bring 10 times brighter images than our earlier models when recorded under night time parking mode.
TIME LAPSE
Important clips and images may get deleted due to insufficient memory space during long continuous recordings, especially in standard parking recording mode which requires large memory for saving 15 to 30 frames per second.
TIME LAPSE MODE in the X700 records 2 frames per second reducing the size of the video file. This allows video recordings in parking mode to continue up to 16 times longer than other dash cams.
ROAD SAFETY WARNING SYSTEM
(Optional GPS antenna required for x700)
The THINKWARE DASH CAM X700 is equipped with the Lane Departure Warning System (LDWS), Front Collision Warning System (FCWS), Urban Front Collision Warning System(FCWS) and Front Vehicle Departure Warning (FVDW) to ensure driver safety with a voice and visual warning.
LANE DEPARTURE WARNING SYSTEM (LDWS)
(Optional GPS antenna required for X700)
Drowsy or distracted driving greatly increases the chance of an accident on the road.
The Lane Departure Warning System will alert the driver when the vehicle goes off the lane in a speed over 50 km/h.
HIGH SPEED / URBAN FORWARD COLLISION WARNING SYSTEM (FCWS/ UFCWS)
(Optional GPS antenna required for X700)
Accidents can be avoided by maintaining a safe following distance. Road Safety Warning System in the X700 calculates
the real-time distance between your vehicle and the vehicle in front of you, while driving above 30 km/h in expressways
or under 30 km/h in a busy city, and issues a 3-level early warning to the driver depending on the danger of collision.
FRONT VEHICLE DEPARTURE WARNING (FVDW)
When your car is stopped at an intersection or in traffic, the intelligent guidance system informs you that the vehicle in front has started to move, preventing a delayed response just in case you stop looking ahead.
SAFETY CAMERA ALERT
(Optional GPS antenna required for X700)
One of the safety features from THINKWARE – The Safety Camera Alert function of THINKWARE DASH CAM actively alerts the driver of any photo enforcement locations on the route while still recording videos. THINKWARE Dash Cam provides an active warning for these 5 types of road safety cameras.
- RED LIGHT WARNING SYSTEM
- SPEED CAMERA WARNING SYSTEM
- RED LIGHT & SPEED CAMERA WARNING SYSTEM
- AVERAGE SPEED WARNING SYSTEM
- MOBILE ZONE WARNING SYSTEM
VIDEO ENHANCEMENT TECHNOLOGY
THINKWARE DASH CAMs are equipped with top-notch video enhancement technology on the market,
ensuring the most vivid video recordings under any circumstance.
WIDE DYNAMIC RANGE
When you are driving under bright sunlight, coming out of a tunnel, or getting under the shadow of a tall building etc, a sudden change in frontal light
exposure levels can result in excessively bright or dark recordings. The WDR function eliminates excessively bright spots on the recording to correct its color balance in order to ensure a clear image.
NIGHTTIME PICTURE QUALITY CORRECTION
Images from the videos recorded during night time driving on dark streets are generally difficult to make out.
The enhancement Sensors of THINKWARE DASH CAMs come with
a standard function of brightness and colour control as well as noise cancellation.
AUTOMATIC EXPOSURE
A sudden rise of light exposure caused by strong sunlight or headlight beams of the oncoming vehicle may cause difficulties to assess the situation. Also, the lack of lighting in a dark tunnel or night driving may pose the same problem.
The automatic light exposure function controls the level of light exposure to maintain vivid and clear video recordings in all circumstances.
VARIOUS AUTONOMOUS RECORDING MODES
Various Recording Modes and Automatic Switch between Modes
Continuous Recording Mode
This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
Incident Recording Mode
The Active Impact Monitoring System will automatically store the video data ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
Manual Recording Mode
Similar to a video camera, you can use the Manual Recording Mode to capture events that occur in front of your vehicle whether or not it is in motion.
Parking Mode
Even if you are away from the car, your dash cam will keep an eye on what’s happening and store the footage into storage when an impact and/or motion is detected. Or use Time Lapse to store the footage in 2 frames per second.

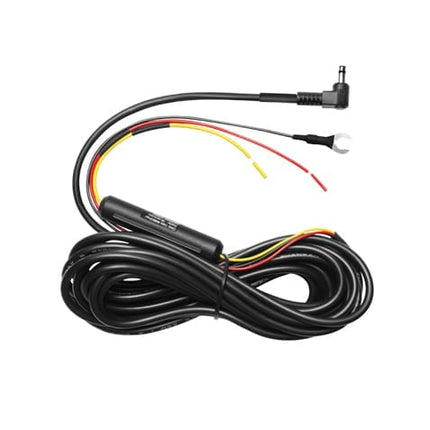

(*Hardwiring installation is required to activate parking mode)
FORMAT FREE 2.0 TECHNOLOGY
X700 utilizes the FAT (File Allocation Table) system. This allows THINKWARE’s proprietary Format Free Technology to eliminate the need for periodical manual formatting of recorded video files on the microSD memory card. It also helps extend the life of your memory card. You can view recorded video files on any PC without having to worry about converting files. THINKWARE DASH CAM X700 saves the hassle of manually clearing memory space.
PC VIEWER
The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.
COMPREHENSIVE DRIVING INFORMATION WITH GPS
With the optional GPS Tracker, the THINKWARE DASH CAM X700 can record the vehicle’s driving speed and provide its precise location and routes identification on the map. The GPS Tracker helps you to accurately assess the details of the surrounding area by providing you with the vehicle speed and the time of a collision, and the severity of an impact. The video recording feature not only stores driving footages in case of an event, but it can also be used to track your holiday travel routes.
* The video recording feature is only available when using the GPS Tracker accessory sold separately.
THERMAL PROTECTION SYSTEM
The specially designed heat discharge construction and the built-in thermal sensor protects the device and its data against intense heat by automatically turning it off to prevent overheating.
FAIL-SAFE RECORDING
In the event that the power gets disconnected after an accident, the fail-safe recording uses the Super Capacitor for backup power to ensure safe storage of any recording in progress – so you can be assured that your valuable data will be securely stored under any circumstances.

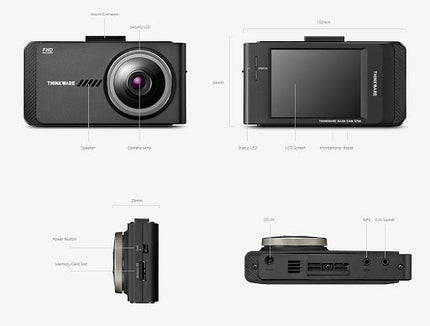

DIMENSION | 102 x 54 x 29mm |
---|---|
WEIGHT | 104g (Excluding microSD) |
CAMERA | Front: 2.1M Pixels (SONY CMOS Image sensor) Rear: 2.1M Pixels (Pixel plus CMOS) |
DISPLAY PANEL | Resistive Touch 2.7" Clear Display (320x240) |
VIEWING ANGLE | Front: Approximately 140° (diagonally) Rear: 125° (diagonally) |
VIDEO | ALL Full HD (1920X1080) for front & rear view camera when connected |
CAPACITY | Micro SD Card 16GB / 32GB / 64GB |
RECORDING MODES | Super Night Vision / Time Lapse / Continuous Recording Mode, Incident Recording Mode, Manual Recording Mode, Parking Surveillance Recording Mode, Audio Recording |
ACCELERATION SENSOR | 3-Axis Acceleration G-Sensor (3D, ±4G) |
GPS | External GPS (Optional) |
POWER | Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1 (3.5pi) / Power Consumption: 5.3W (mean) - 2ch, 30fps, 3.5W (mean) - 1ch,30fps / Built-in Super Capacitor |
INTERFACE | GPS Receiver Port, 1 x Video-IN (micro USB), DC-IN, Micro SD slot |
