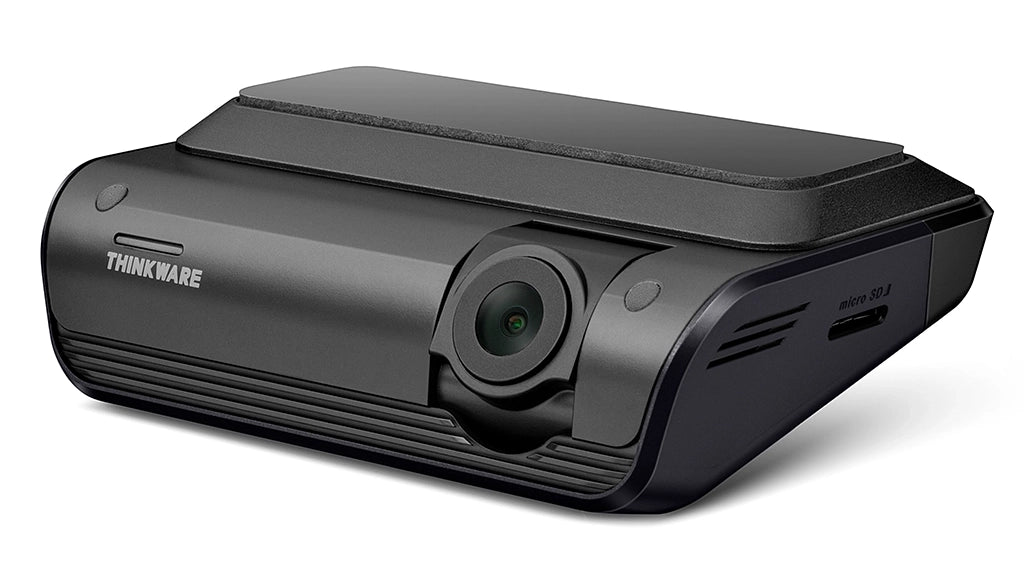

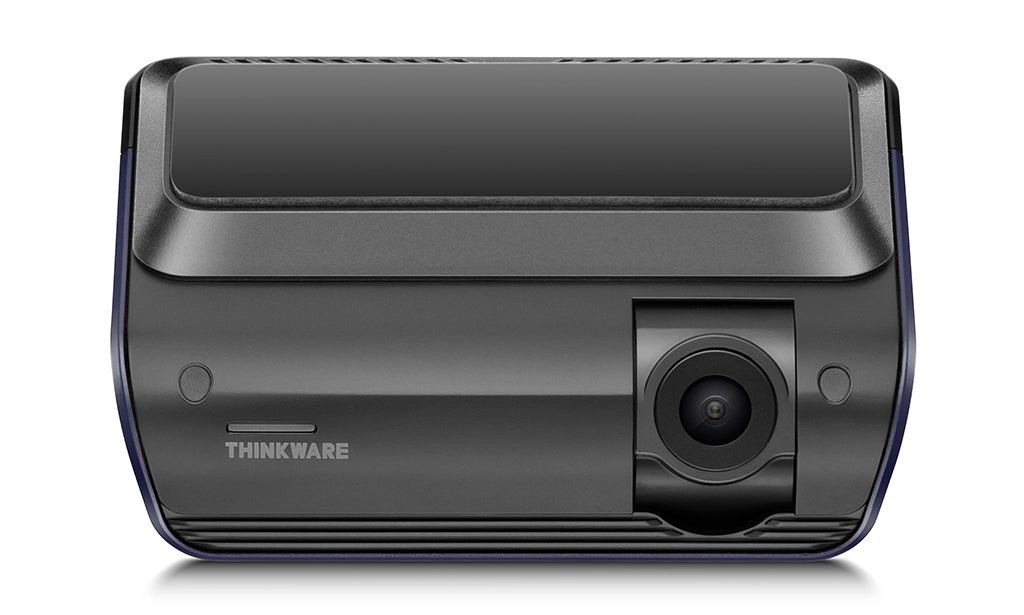

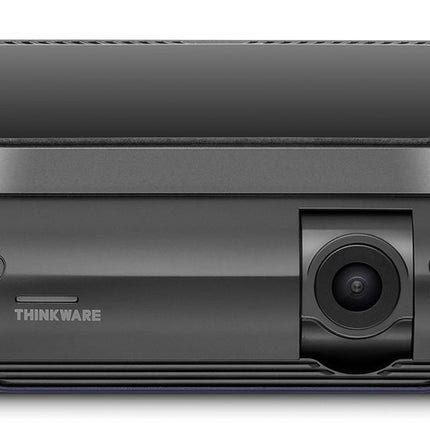

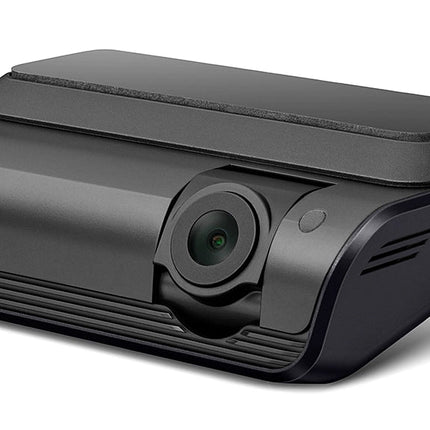

- Dash Cam
- 12V Power Cable
- MicroSD Card
- USB MicroSD Card Reader
- Windshield Mount
- Spare 3M Mounting Tape
- Adhesive Cable Clips
- Quick Start Guide
Specification:
- Resolution :
Front – 2K QHD (2560 x 1440)
Rear – 2K QHD (2560 x 1440) [Optional] - Camera :
Front – 5.14MP Sony STARVIS
Rear – 5.14MP Sony STARVIS [Optional - Viewing Angle : 156°
- Frame Rate : 30 fps
- Weight : 153g
- Storage Temperature : -20°~ 70°C (-4°~ 158°F)
- Operating Temperature : -10°~ 60°C (14°~ 140°F)
- Capacity : MicroSD card 32/64/128GB (UHS-I)
- Input Power : DC 12/24V, Built-in Super Capacitor
Dimensions:
Equipped with the latest Sony Starvis IMX335 Image Sensors allow for crisp clean 2K QHD 1440p front (156° viewing angle) and rear footage during both day and night at 30FPS. The wide angle lens view will minimize blind spots record more event details.
Parking mode is a feature of dash cams that are either hardwired or using the OBD2 Connector. This allows them to continue recording while your car is parked and turned off. All Thinkware dashcams continuously monitor the health of the vehicle’s battery and will shut down if it detects any issues.
Please note: A hardwire or OBDII cable installation is required for Parking Mode functionality
Motion Detection
Monitor and capture any motion around the vehicle for potential vandalism attempts.
Impact Detection
Monitor any impact to the vehicle while it is parked to catch any hit-and-run driver in the act while you are away.
Get audio warnings from your cash cam when approaching a wide variety of road safety cameras.
Thinkware Dash Cams provides active alert for these 5 types of road safety cameras while still recording videos.
*UK speed camera (Cyclops) database with regular free updates
RED LIGHT WARNING SYSTEM
SPEED CAMERA WARNING SYSTEM
RED LIGHT & SPEED CAMERA WARNING SYSTEM
AVERAGE SPEED WARNING SYSTEM
MOBILE ZONE WARNING SYSTEM
FORWARD COLLISION WARNING SYSTEM
(FCWS/ UFCWS)
Warns the driver of impending road hazards.
FRONT VEHICLE DEPARTURE WARNING
(FVDW)
LANE DEPARTURE WARNING SYSTEM
(LDWS)
Detects if the vehicle is veering off the driving lane.
With GPS, all Thinkware dash cams can record the vehicle’s driving speed and provide its precise location and routes identification on the map. The GPS Tracker helps you to accurately assess the details of the surrounding area. The PC/Mac viewer can then provide you with the vehicle speed and the time of a collision, and the severity of any impacts.
The intuitive and simple-to-use interface of Thinkware Dash Cam allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.
Avoid overexposure in your Dash Cam footage when experiencing sources of bright light whilst driving, keeping your footage clearer.
Wide Dynamic Range (WDR) is technology that allows the dashboard camera to capture a clearer image in a strongly contrasted environment. It can solve problems such as intense contrasts of light sources. In the event of a sudden change in frontal light exposure, such as when driving into or out of a tunnel or driving directly into bright sunshine, the Wide Dynamic Range function will eliminate excessively bright spots on the recordings.
CONTINUOUS RECORDING MODE
This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
INCIDENT RECORDING MODE
The Active Impact Monitoring System will automatically store the video data ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
MANUAL RECORDING MODE
Similar to a video camera, you can use the Manual Recording Mode to capture events that occur in front of your vehicle whether or not it is in motion.
FAIL-SAFE RECORDING
In the event that the power gets disconnected after an accident, the fail-safe recording uses the Super Capacitor for backup power to ensure safe storage of any recording in progress.
Avoid corrupt memory cards and the slow process of having to reformat your SD Cards with the free flowing recording system.
One of the most common issues with a Dash cam’s reliability is the SD card, these cards are continuously overwritten and often become corrupt if not formatted often. This normally means that you have to remove the SD card and put it into a computer to reformat it. Thinkware have overcome this vulnerability by making the dashcam pre-allocate the memory, avoiding the need to format the SD card on a regular basis and making the footage easily viewable on our Thinkware viewer software.
Protects your dashboard camera from overheating and causing potentially irreversible damage to it or its data.
The specially designed heat discharge construction and the built-in thermal sensor of the dash cam protects the device and its data against intense heat by automatically turning it off to prevent overheating. All Thinkware cameras use a Super Capacitor, designed with Temperature Protection, for an emergency power source in the event of a crash or sudden power loss, allowing the unit to save the last 10 seconds of an incident.
Designed to be mounted inside the vehicle on the rear window facing out. A wide-angle lens captures all footage from behind the vehicle in the same QHD detail as the front camera. A great enhancement to parking mode.
