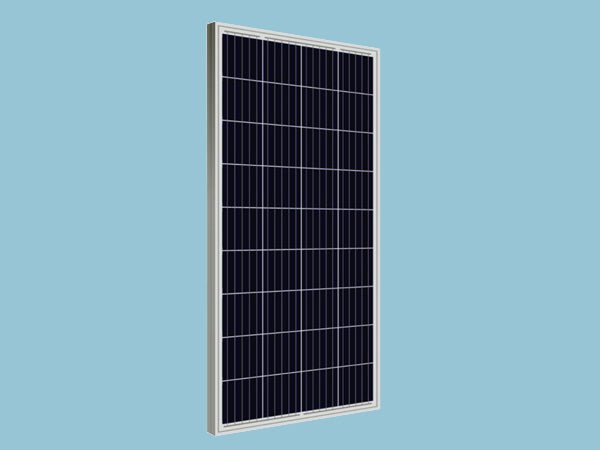

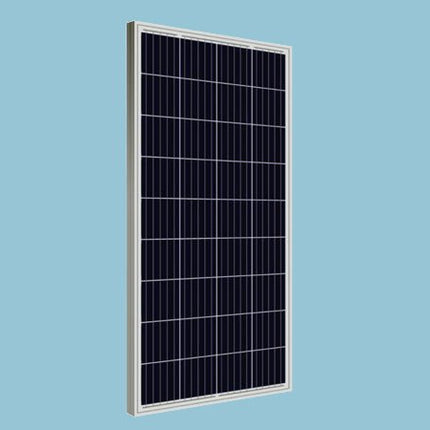

Sunshine Solar Panels 160W 12V Crystalline

Sunshine Solar Panels 160W 12V Crystalline

Regular price £122.81
Regular price £0.00 Sale price £122.81
Sale Sold out
Tax included. Shipping calculated at checkout.


Sunshine Solar Panels 160W 12V Crystalline

Our 160W solar panel is the most powerful of the Sunshine Solar range for 12V battery charging if you are looking for faster power generation this solar module will deliver. The high wattage output combined with high efficiency crystalline cells make this solar panel of particular interest for motorhome uses, static caravans, mobile homes, live aboard boats where larger power requirements are generally required.


With a Sunshine 160W solar panel you could expect to generate around 44 amps per day when used in conjunction with a PWM solar charge controller and around 53 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.


Specifications

  • Product Code. SSP160P
  • Max Power. 160W ± 5%
  • Max Power Voltage. 18.10V
  • Max Power Current. 8.84A
  • Open Circuit Voltage. 22.40V
  • Short Circuit Current. 9.15A
  • Normal Operating Cell Temp. -45 to 80°C
  • Max System Voltage. DC1000V
  • Weight. 10.3Kgs
  • Dimensions. 664 x 1470 x 35mm

Features

  • 900mm of 4mm single-core cable fitted with MC Type 4 Connectors
  • Latest High Performance Crystalline Cells
  • Factory fitted aluminium frame with pre-drilled mounting holes
  • Multiple pieces can be connected to acquire higher power
  • Suitable for charging all types of 12 volt batteries
  • Fitted with bypass diodes to minimise the effect of shading
  • Completely weatherproof

Guaranteed Performance

  • 5 Years Manufacturers Warranty
  • 10 Years Warranty 90% Power Output
  • 20 Years Warranty 80% Power Output

Suitable Solar Charge Controllers

  • PWM Solar Controller 20A - 12/24V
  • Dual Battery Controller 20A - 12/24V
  • MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
  • Dual MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)

For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.

Please view this Document for for info
