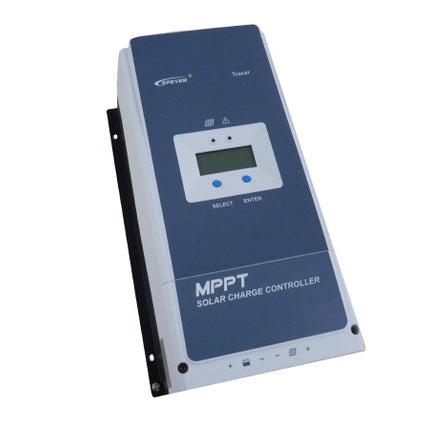

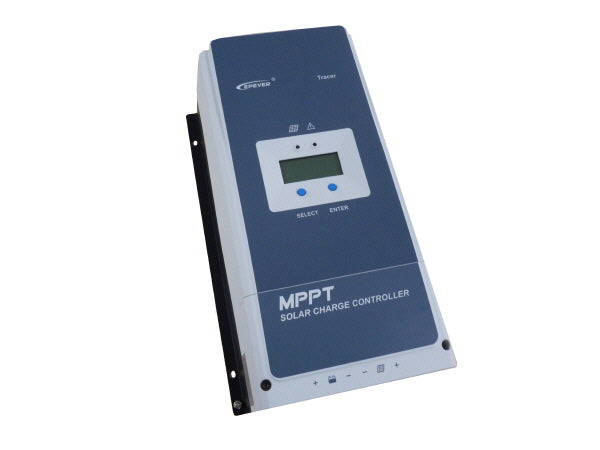

MPPT Controller 100A - 200V 12/24/36/48V
MPPT Controller 100A - 200V 12/24/36/48V
MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
This series of controllers can effectively prolong the life-cycle of batteries, significantly improving the systems performance. The load, utility or generator auto-control relays make it ideal to use with a solar power system and backup generator. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection this effectively ensure a safe and reliable solar system. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customers to expand the control parameters. Up to 8 controllers can be in linked in parallel for synchronised charging to meet future system expansions and monitoring requirements.
Features
- CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3).
- High quality & low failure rate components of ST and Infineon to ensure the product’s life.
- Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%.
- Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%.
- Advanced MPPT control algorithm will minimise the MPP loss rate and loss time.
- The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.
- The wider range of MPP operating voltage.
- Auto control system to limit the charging power & current go over the rated value.
- Support 4 charging options: Sealed, Gel, Flooded and User.
- Battery temperature compensation function.
- Real-time energy recording and statistical function.
- Automatic over-temperature power reduction function.
- Hundred percent full load operation in working environment temperature range within charging & discharging
- Support up to 8 units in parallel to expand system
- Load relay control external load switch signal to realise diversified load work modes
- The first and the second disconnection of load control, contain two relay’s contact.
- Auto-control of utility and generator relay design
- Utility or generator auto-control relays make it easy to compose the hybrid power system
- The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
- Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
- To monitor or set the parameters by using the phone Apps or PC software.
Specifications
- Nominal System Voltage: 12/24/36/48VDC or Auto
- Battery Input Voltage Range: 8V~68V
- Battery Type: Sealed(Default)/Gel/Flooded/User
- Max Rated Charging Current: 100 amps
- Max Rated Charge Power: 1250W/12V - 2500W/24V - 3750W/36V - 5000W/48V
- Max Input Voltage: 200Vdc
- Max. conversion efficiency: 98.6%
- Full load efficiency: 98%
- Tracking efficiency: ≥99.5%
- Self Consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V
- Grounding: Common negative grounding
- Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
- Ambient temperature range: -25℃~+60℃ (Derate above 45℃)
- Enclosure: IP20
Dimensions: 394×242×143mm
Weight: 7.4kg
Please view this Doc for more info
