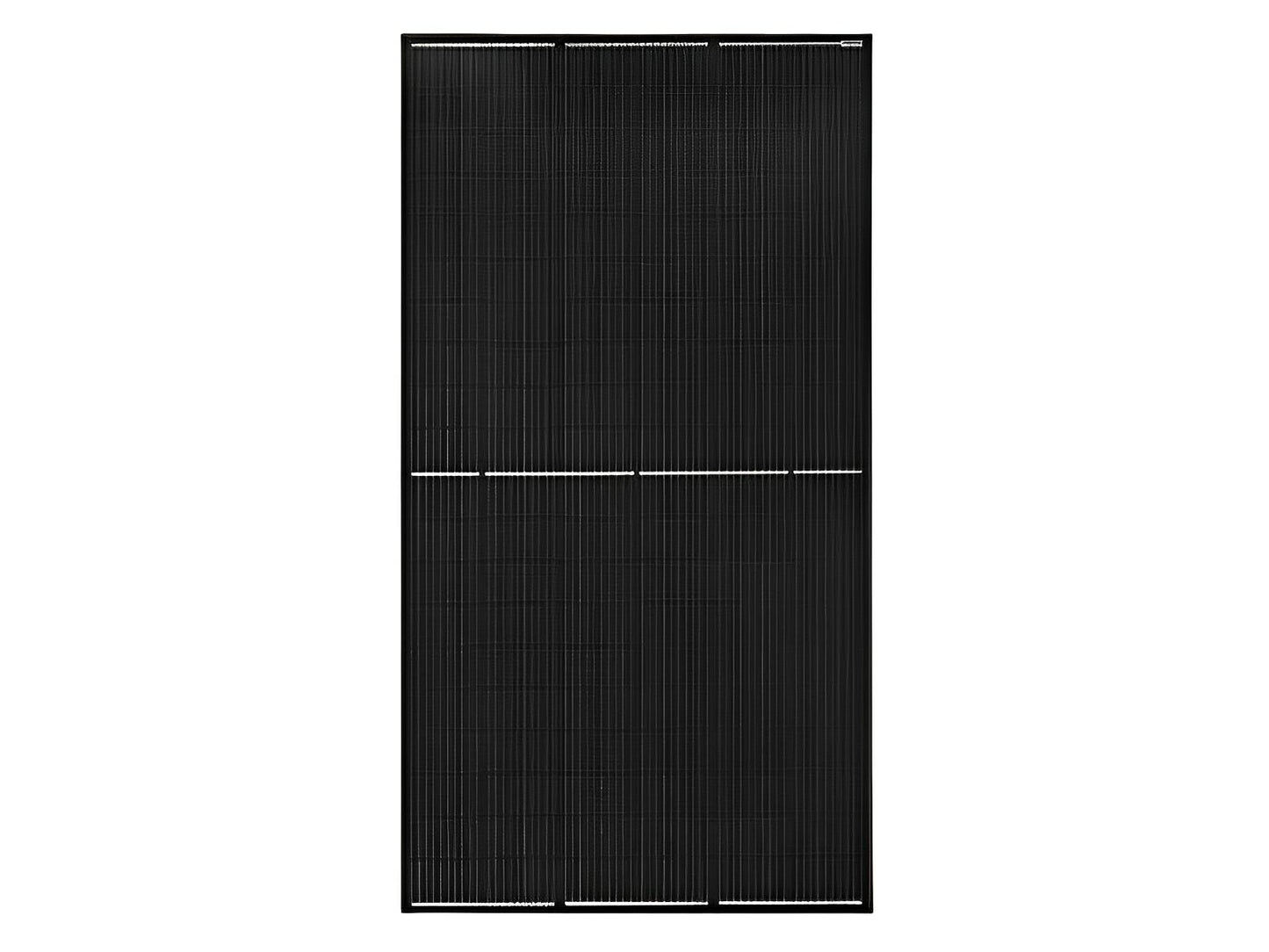

400W Solar PV Mono Half Cell - All Black

SRG400- 400W Sunshine Solar Panel. These large solar panels can also be used for battery charging in off grid systems where larger power requirements are needed typically liveaboard boats, power failure back up systems, static caravans, off grid home offices, etc.

SRG400 - 400 watt solar panel, on the 182 mm mono solar cell, takes unique half-cut cell technology, reduces interconnection losses, and brings higher efficiency.

Suitable for Multiple Scenarios – Ideal for 12V off-grid applications, including RVs, rooftops, cabins, yachts, homes, fences, greenhouse, and LED lights. High efficiency, pleasant design and an exceptional warranty..

Solar Panel Specifications

• Power Class: 400W
• Maximum Power Current: (Ipm): 12.78A
• Maximum Power Voltage: (Vpm): 31.3V
• Short Circuit Current (Isc): 13.42A
• Power Output Tolerance (Pmax): 0/+5
• Open Circuit Voltage (Voc): 36.6V
• Nominal Operating Cell Temp. (NOCT): -40 to +85°C
• Maximum System Voltage: 1000V DC
• Cells: 108 Half Cells (6x9x2)

• Frame Colour: Black
• Module Efficiency (%): 25.7
• Connector Type: MC4 or compatible connector
• Length (mm): 1770
• Width (mm): 1134
• Thickness (mm): 30
• Product Weight (Kg): 18.2

Guaranteed Performance

• 10 Year Manufacturers Warranty
• 25 Year Product Warranty

PRODUCT CODE: SRG400
