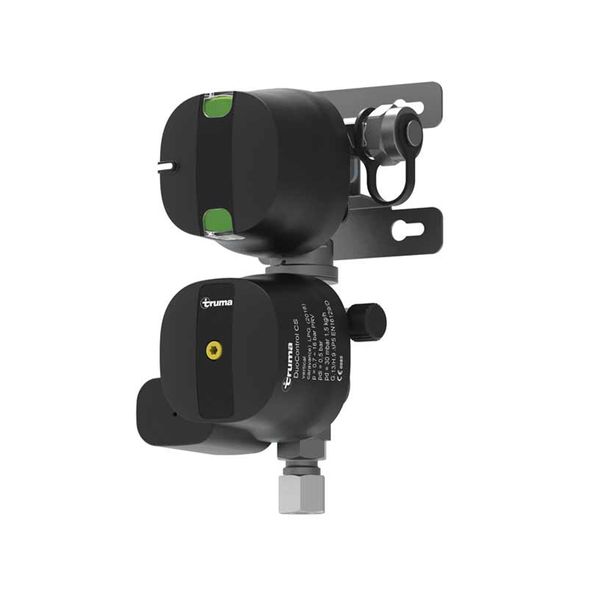

The DuoControl CS from Truma is a safety gas pressure regulator with automatic changeover for connecting to two gas cylinders for caravans and motorhomes.
The gas pressure regulator ensures a uniform output pressure of 30 mbar with a permissible inlet pressure range of 0.7 to 16 bar.
DuoControl CS allows gas appliances to be operated while driving. The integrated crash sensor (CS) interrupts the flow of gas in the event of an accident with directly acting deceleration of 4.0 g ± 1.0g.
The gas pressure regulator with safety valve is a single-stage gas pressure regulator. If the gas pressure regulator is not working properly, for example due to dirt or other foreign material on the valve, the safety valve opens and blows off to a pressure of 110 mbar.
Please note:
Using the DuoControl CS in closed rooms (e.g. at home), on boats or in EX Zone 0 (e.g. tankers) is prohibited.
The national regulations must be observed if there is a possibility of it being used in mobile homes. Its use in mobile homes is prohibited in Germany.
An automatic PRV (Pressure Relief Valve) safety device integrated in the DuoControl CS with limited flow protects the connected consumers against impermissibly high pressure. As soon as an impermissibly high pressure arises on the output side, the PRV opens and blows out the overpressure into the air. The PRV closes automatically after the pressure is reduced.
DuoControl CS must not be used for commercial purposes.
- Model: Vertical with 8mm outlet
- Gas type: Liquefied gas (propane / butane)
- Admission pressure: 0.7 - 16 bar
- Output pressure: 30 mbar
- Regulator capacity: 1.5 kg/h
- Regulator inlet: Male thread M20 x 1.5 (G.13)
- Regulator outlet: Olive screw connection 8mm
- Horizontal triggering value: 4.0 g ± 1.0 g
- Operating temperature: -20 °C to +50 °C
Recommended tightening torque:
- 3 - 5 Nm for union nut M20 x 1.5 (G.13)
- 14 - 19 Nm for olive screw connection 8mm
Brand
Truma
Type
Gas Regulators
Height Description
116mm
Width
158mm
Length
104mm
Flow Rate Description
Max. 1.5 kg/h
Inlet Pressure
0.7 to 16 bar
Outlet Pressure
30 mbar
Approvals
CE 0085
Inlet Connection
Male thread M20 x 1.5 (G.13)
Outlet Connection
Olive screw connection 8mm
Fuel
LPG
Country of Origin
Italy
Downloads
Operating Instructions Truma DuoControl CS

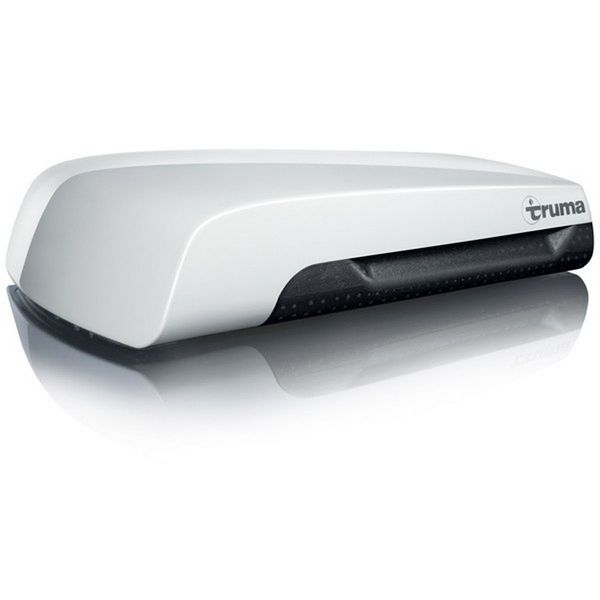

One of the industry's most popular Air Conditioners. The Aventa is perfect for vehicles measuring up to 7.5M in length. Fits in to a 40 x 40cm aperture. Height above vehicle when fitted is 24.8cm. Has a cooling power of 2400W and a heat output of 1700W. Power consumption 4.2A. Operating voltage 230-240V, 50Hz. Weight: 33KG. Works in conjunction with Inet box for complete remote operation. Grey diffuser.
Brand
Truma
Type
Air Conditioning Spares
Voltage Description
230V AC
Power Supply
230 v
Height Description
660mm (26")
Width
1008mm
Depth
248mm
Weight
33kg
Cut Out
380 x 350mm / 400 x 400mm
Heat Output
1700 w
Consumption Cooling
4.2 a
Consumption Heating
3.7 a
Cooling Power
2400 w
Maximum Air Flow
400m³/hr
Start Up Draw
28 a (150 ms)
Downloads
Installation/Operating Instructions

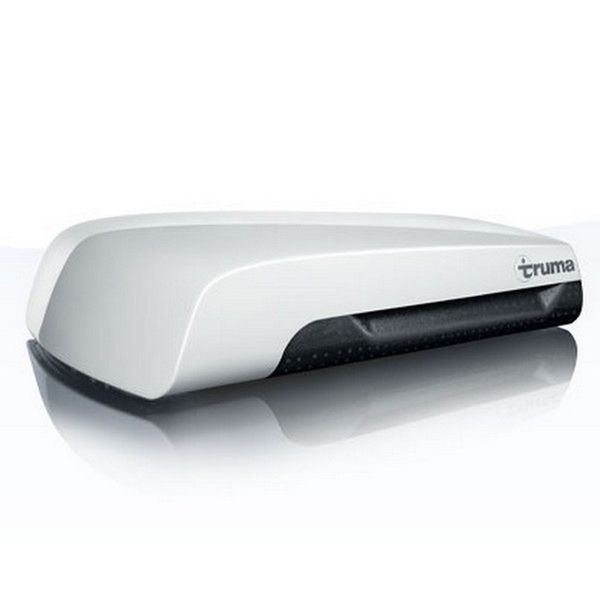

This promotional package incorporates the Aventa Comfort (in Cream) + Diffuser in one special priced bundle.
Brand
Truma
Type
Air Conditioning Spares
Voltage Description
230V AC
Power Supply
230 v
Height Description
660mm (26")
Width
1008mm
Depth
248mm
Weight
33kg
Cut Out
380 x 350mm / 400 x 400mm
Heat Output
1700 w
Consumption Cooling
4.2 a
Consumption Heating
3.7 a
Cooling Power
2400 w
Maximum Air Flow
400m³/hr
Start Up Draw
28 a (150 ms)
Downloads
Installation/Operating Instructions

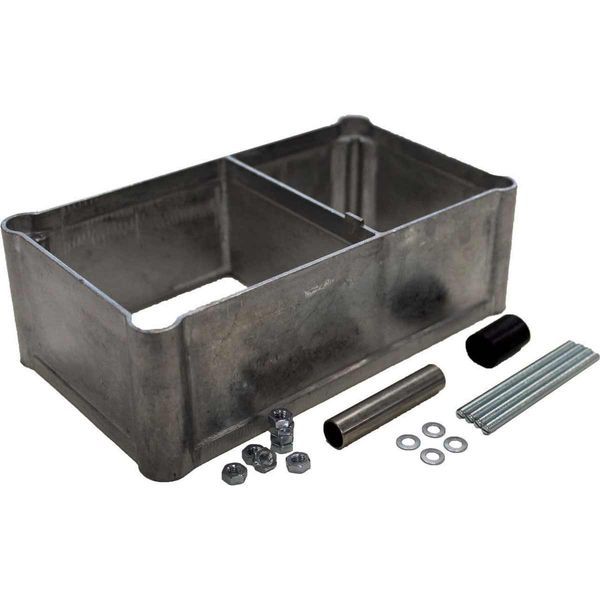

Truma Ultrastore Cowl Extension Kit is ideal for Campervans and van conversions, where the wall ribs prevent your Truma Ultrastore water heater from reaching the outside wall. The Truma 70131-00 kit provides a 50mm extension for the heater flue.
Brand
Truma
Type
Flue Cowls
Length
50mm
