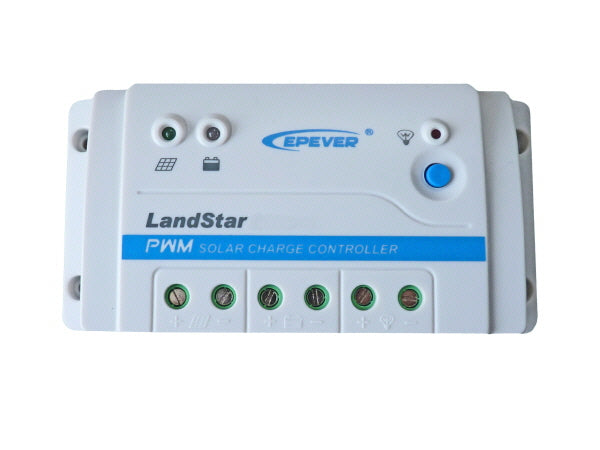

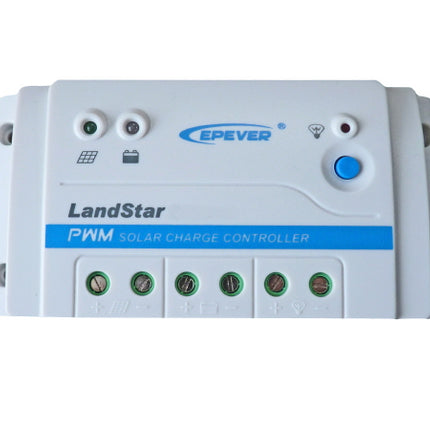

Solar Charge Controller 10A - 12/24V

This Sunshine Solar Controller features the latest PWM charge regulation for reliable and economical battery charge control.

Features

• Maximum Solar Input Power: 120 Watts @ 12V - 240 Watts @ 24 Volts
• Self Consumption: <8.4mA
• Four Stages: Equalization, PWM, Boost and Float
• Battery Selection: Gel, Sealed, Flooded and user defined with Remote Meter
• Microcontroller digital accuracy
• PWM charge mode & state of charge (SOC)
• Fully automatic operation & electronic protections
• Temperature compensation, external temperature sensor
• Large terminals for up to 4mm² size wire

Electronic Protections

• Short circuit & over current - solar & load
• Reverse polarity - solar, load & battery
• Reverse current at night
• High voltage - load
• Lightning - solar, load & battery

Humidity Protections

• Circuit board-conformal coated
• Terminals - corrosion protected

Dimensions:

• 140mm x 70mm x 38mm

Intended use:

For use with solar panels up to a maximum of 10A
