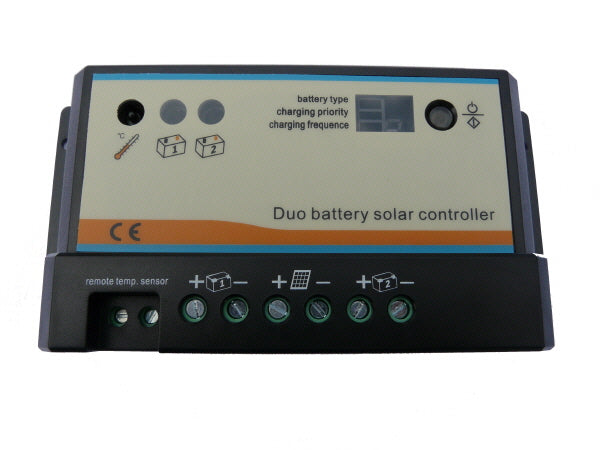

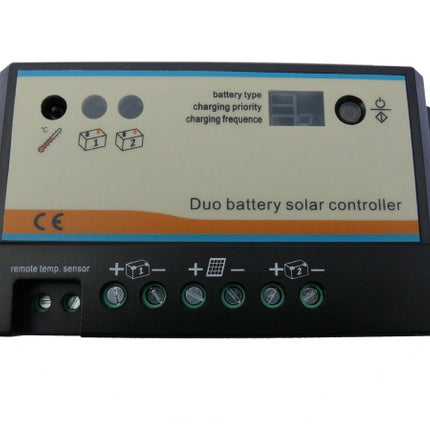

Dual Battery Controller 10A - 12V/24V

Dual Battery Controller 10A - 12V/24V

Regular price £54.59
Regular price £0.00 Sale price £54.59
Sale Sold out
Tax included. Shipping calculated at checkout.

Our latest Dual-battery charging solar controller eliminates the added cost of two separate solar charging systems. The controller uses Pulse Width Modulation (PWM) the most effective means to achieve constant voltage battery charging, the result is a higher charging efficiency, rapid recharging and healthy batteries at full capacity.

This controller is ideal for use with motorhomes, caravans, boats or anywhere there are two independent batteries for instance a starter battery and a leisure battery.

The Charging percentages for each battery can be set manually if required.


  • Maximum Solar Input Power: 120 Watts @ 12V - 240 Watts @ 24 Volts
  • Battery type selection: Sealed, Flooded or Gel
  • Two battery charging priority (from 0-100%)
  • Battery temperature sensor
  • Optional Remote meter (see options and related products below)
  • PWM charging, different frequency option.
  • Over charging, short-circuit, reverse polarity & reverse current to PV Protection

Intended use:
For use with solar panels up to a maximum of 10A

More technical information can be found in the Instruction Manual PDF
