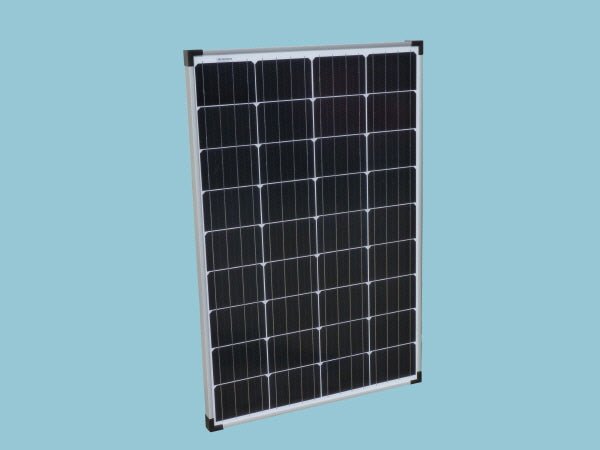

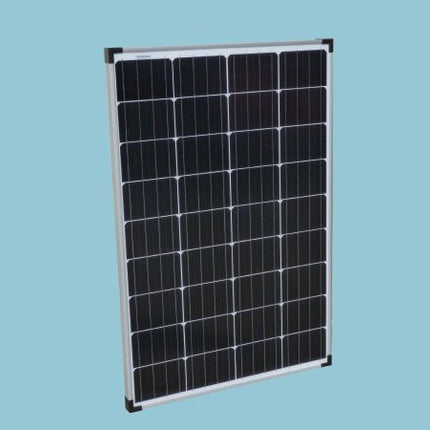

Sunshine Solar Panels 110W 12V Crystalline
Sunshine Solar Panels 110W 12V Crystalline
The Sunshine Solar panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 110-watt solar panel include supplementing the leisure battery power in caravans, motorhomes, and boats.
With a Sunshine 110W solar panel, you could expect to generate around 31 amps per day when used in conjunction with a PWM solar charge controller and around 37 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
- Maximum Power (Pmax): 110W
- Maximum Power Current (Ipm): 5.56A
- Maximum Power Voltage (Vpm): 18.0V
- Short Circuit Current (Isc): 5.81A
- Open Circuit Voltage (Voc): 22.50V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC1000V
- Maximum Series Fuse: 9A
- Size: 664 x 1006 x 35mm
- Weight: 6.87kg
Features
- 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
- High-Performance Crystalline Cells
- Factory-fitted aluminium frame with pre-drilled mounting holes
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12-volt batteries
- Fitted with bypass diodes to minimize the effect of shading
- Completely weatherproof
Guaranteed Performance
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 20 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
- PWM Solar Controller 10A - 12/24V
- Dual Battery Controller 10A - 12/24V
- MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
- Dual MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical.
For the best performance, we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using a 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
Please view this Document for more info..
